| Product: | M Fold Paper Towel Cutting Log Saw Machine | Application: | M Fold Paper Towels / Facial Tissue Paper |
|---|---|---|---|
| Cut Speed: | 200 Cut/minute | Chanels: | Single / Double Lines Cutting M Fold Paper Towel |
| Control: | Servo Control | Touch Screeen: | Siemens Or International Brand |
| High Light: | ce log cutting machine,m fold paper log cutting machine,m fold towel log saw machine |
||

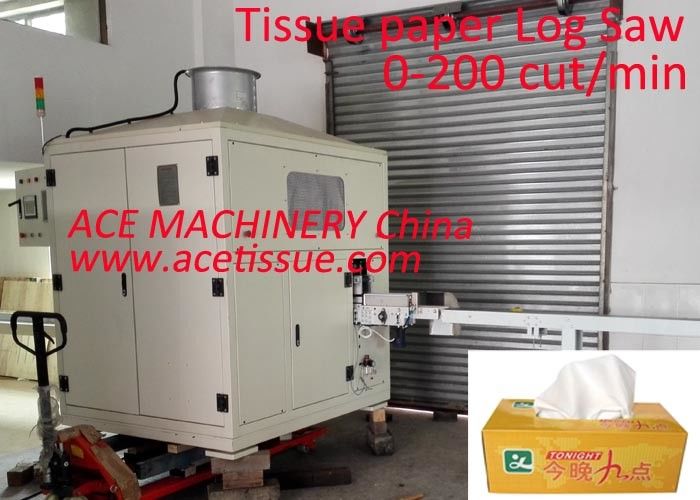

Description of this High Speed Automatic M Fold Paper Towel Cutting Log Saw Machine 200 Cut/Minute:
This ACE-FLS Fully Automatic High Speed Automatic M Fold Paper Towel Cutting Log Saw Machine is for cutting facial tissue paper, interfold hand paper towels, Z fold paper towels and also coreless toilet rolls. It can accommodate big ranges of cutting sizes. The height of log can be 140mm 150mm etc. It adopts 3 servo motors to control the cutting length and infeed to ensure the cutting accuracy.
Quick details:
1 For cutting facial tissue paper and hand towels
2 High speed 200 cut/min
3 Single lane
4 Servo motor control
5 Big ranges of cutting sizes
Mode technical details of ACE-FLS High Speed Automatic M Fold Paper Towel Cutting Log Saw Machine 200 Cut/Minute.
Main structure: single channel.
Applicable material: facial tissues
Designed speed: 150 cut/min
Working speed: 80-140 cut/min
when cutting length 100mm, about 140 cut/min;
when cutting length 230mm, about 120 cut/min.
Control system:
PLC programmed control,
Inverter for variable frequency speed control,
Touch screen for operation
Servo driving: adopt 2 servo motors to control the timing belts before the circular blade cutting and after the circular blade cutting .(But other companies’ machines use only one servo motor or NO servo motor, controlled by only inverter, which cannot guarantee accurate cutting.)
Brands for parts used for the machine.
Motor: Siemens (Germany)
JSCC motors for infeed conveyor. (Germany)
PLC: Siemens (Germany)
Touch screen: Siemens (Germany)
Inverter: DELTA (Taiwan)
Relays: Weidmuller (Germany)
Sensors: Omron (Japan) or other international brands.
Technical parameters of this High Speed Automatic M Fold Paper Towel Cutting Log Saw Machine.
| Main structure: | Single lane cutting |
| Applicable material | Facial tissue paper and interfold paper towels |
| Designed speed: | 220 cut/min |
| Working speed: |
80-200 cut/min when cutting length 100mm, about 200 cut/min; when cutting length 230mm, about 120 cut/min. |
| Infeed channel: | With one piece infeed conveyor 3meters |
| Cutting delivery system | Independent servo control and driving. |
| Cutting sizes ranges: |
L 60-300mm adjustable W 60-110mm H 25-120mm or customized. |
| Cutting tolerance length: | ±1mm |
| Cutting tolerance vertical: | ±1.5mm |
Brands of components used on this tissue cutting machine.
PLC Siemens
Inverter Siemens
Touch screen Siemens
Servo motor DELTA
Servo drive DELTA
Bearing SKF
Electrical parts Schneider
Steel #45
Brands of components used on this tissue cutting machine.
| PLC | Siemens |
| Inverter | Siemens |
| Touch screen | Siemens |
| Servo motor | DELTA |
| Servo drive | DELTA |
| Bearing | SKF |
| Electrical parts | Schneider |
| Steel | #45 |
