ACE MACHINERY CO.,LIMITED
Home ProductsTissue Paper Cutting Machine

200mm Bathroom Tissue Paper Cutting Machine

China ACE MACHINERY CO.,LIMITED certification
China ACE MACHINERY CO.,LIMITED certification
I have bought several high speed napkin paper machines from ACE MACHINERY. They have been working perfectly.

—— Michael

I was happy to buy tissue paper machines from ACE MACHINERY. They offered me high quality tissue machines and good after sales service.

—— Pat

For me, ACE is the best manufacturer high speed paper napkin machine and high speed hand towel machine in CHINA.

—— Gomez (paper napkin converter)

I'm Online Chat Now

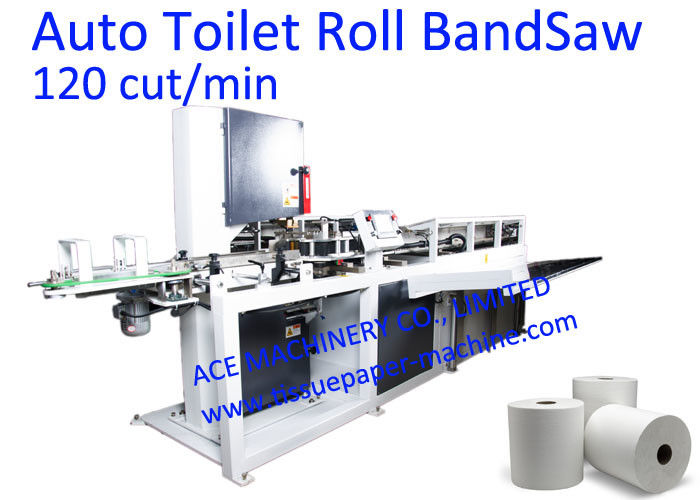

200mm Bathroom Tissue Paper Cutting Machine

200mm Bathroom Tissue Paper Cutting Machine
200mm Bathroom Tissue Paper Cutting Machine

Large Image :  200mm Bathroom Tissue Paper Cutting Machine

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ATBS
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, , T/T
Supply Ability: 5 set /month
Detailed Product Description
Product Name: Automatic Toilet Paper Roll Band Saw Cutter, Bathroom Tissue Cutting Machine Cut Length: 90-200mm
Cut Style: Bandsaw Cutting Cut Roll: Diameter 90-150mm
Control: PLC Purpose: Toilet Rolls
High Light:

200mm Tissue Paper Cutting Machine

,

200mm small scale tissue paper making machine

,

200mm tissue paper napkin machine

Automatic Toilet Paper Roll Band Saw Cutter, Bathroom Tissue Cutting Machine

Description

This tissue cutting machine is used to cut toilet paper rolls, bathroom tissue, hygienic tissue, kitchen towel rolls etc. The log diameter can be about 150mm. Cutting speed of this machine can 120 cut/min, very efficient for small scale tissue paper converting machine. It is simple and cheap but very good for tissue paper converting factories to save costs.



Quick details

1 For cutting toilet and kitchen rolls

2 Roll diameter 90-150mm

3 Roll length: 90-200mm

4 Cut type: Full automatic cutting

5 PLC control

6 SERVO DRIVE



Main technical details

  1. Easy operation, low noise, stable running, high production efficiency.
  2. The whole machine adopts advanced PLC program, inverter(variable frequency) speed control, Human-Machine Interface(touch screen). Germany Siemens brand.
  3. Servo motor driving.
  4. Servo motor control the infeed and cutting to ensure accurate cutting sizes.
  5. Single channel conveyor.
  6. Finished roll outer diameter adjustable: 90-130mm. (Other sizes, please specified)
  7. Equipped with advanced photocell detection system.
  8. Automatic blade sharpening system (national patented), human-machine interface to control the feeding of the grinding stones to ensure the sharpness of the band saw blades.
  9. Machine will automatically stop if the machine is empty.
  10. Less consumption of blades.
  11. Cutting speed and length can be set on the touch screen. Infeed and cutting will be smoother and more continuous.
  12. Suitable for cutting rolls with and without cores with small cutting size tolerance, perfect cutting and accurate cutting.



Technical parameters

  • Finished roll length: max 3000 mm , or customized.
  • Cutting length: adjustable, servo control, cutting tolerance ±0.5mm.
  • Cutting speed: 40 ~120 cut/min.
  • Finished roll size(big cutting size range)

Toilet roll/kitchen towel rolls

Roll outer diameter 90~130mm

Cutting length 90~180mm

Trimmed size 15~25mm

  • Servo driving
  • Stainless cover/Timing belt infeed structure.
  • Small log accumulator, able to store 10 logs, stainless platform for lifting the logs.
  • Power: 4.5KW
  • Power supply: 3phase 380V50HZ or customized.
  • Machine dimension: 3760*1680*1850mm
  • Weight: about 1200KGS



Infeed log length 3000mm
Cutting size adjustable, servo control, cutting tolerance ±0.5mm.
Cutting speed 40 - 120 cut/min
Cutting sizes ranges

Roll outer diameter 90~150mm

Cutting length 90~200mm

Trimmed size 15~25mm

Automatic lift system Small log accumulator, able to store 10 logs, stainless platform for lifting the logs.
Power supply

4.5kw

3phase 380V50HZ or customized.

Machine dimension 3760*1680*1850mm
Weight About 1200kg





Brands of compoents used on this Maxi Roll Automatc Band saw Cutting Machine, Machine cutting jumbo toilet papers:



PLC INVT
Inverter INVT
Touch screen INVT
Servo motor INVT
Servo drive INVT
Bearings NSK SKF
Electrical parts Schneider
Pneumatic parts Airtac



Finished product of Automatic Toilet Paper Roll Band Saw Cutter, Bathroom Tissue Cutting Machine:

200mm Bathroom Tissue Paper Cutting Machine 0



 .
