Double Lines Multifold Facial Tissue Cutting Machine Touch Screen

China ACE MACHINERY CO.,LIMITED certification
China ACE MACHINERY CO.,LIMITED certification
I have bought several high speed napkin paper machines from ACE MACHINERY. They have been working perfectly.

—— Michael

I was happy to buy tissue paper machines from ACE MACHINERY. They offered me high quality tissue machines and good after sales service.

—— Pat

For me, ACE is the best manufacturer high speed paper napkin machine and high speed hand towel machine in CHINA.

—— Gomez (paper napkin converter)

I'm Online Chat Now

Double Lines Multifold Facial Tissue Cutting Machine Touch Screen

Double Lines Multifold Facial Tissue Cutting Machine Touch Screen
Double Lines Multifold Facial Tissue Cutting Machine Touch Screen
video play

Large Image :  Double Lines Multifold Facial Tissue Cutting Machine Touch Screen

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-FLS
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $15000 - 50000
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 20 set /month
Detailed Product Description
Product: Multifold Paper Towel Cutting Machine Application: Cutting Facial Tissue & Multifold Paper Towels
Cut Speed: 200 Cut/minute Chanels: Single / Double Lines Cutting
Control: High Speed / Fully Automatic Servo Control Touch Screeen: Siemens Or International Brand
High Light:

double lines facial tissue cutting machine

,

multifold facial tissue cutting machine

,

touch screen facial tissue cutting machine

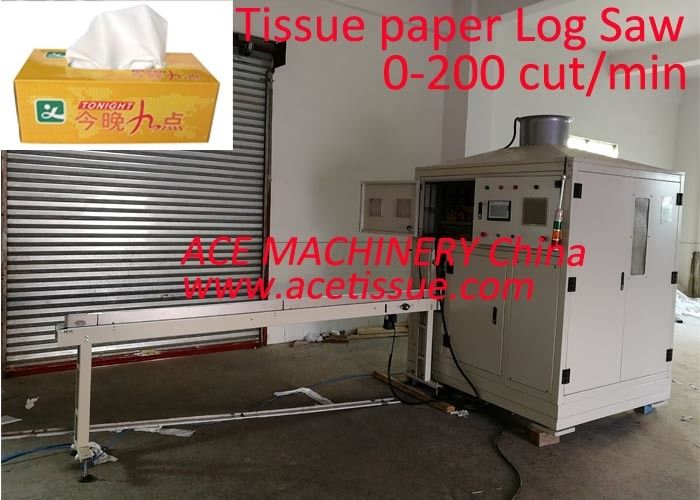

High Speed Automatic Paper Towel Cutting Machine 200 Cut/Minute​​​



Description of this High Speed Automatic Paper Towel Cutting Machine 200 Cut/Minute:

This ACE-FLS Fully Automatic Multifold Paper Towel Log Saw Cutting Machine High Speed 200 CutMinute is for cutting facial tissue paper, interfold hand paper towels, Z fold paper towels and also coreless toilet rolls. It can accommodate big ranges of cutting sizes. The height of log can be 140mm 150mm etc. It adopts 3 servo motors to control the cutting length and infeed to ensure the cutting accuracy.



Quick details:

1 For cutting facial tissue paper and hand towels

2 High speed 200 cut/min

3 Single lane

4 Servo motor control

5 Big ranges of cutting sizes



Mode technical details of ACE-FLS High Speed Automatic Paper Towel Cutting Machine 200 Cut/Minute.

Cutting tolerance length: ±1mm

Cutting tolerance vertical: ±1.5mm

Output delivery: During the whole log saw cutting process, the tissues are pressed by Top timing belts + bottom timing belts to prevent the belts getting slippery and guarantee every cut accurate cutting. (But other company machines use flat belts which would definitely get slippery and no-accurate cutting.)

Adopt 2 servo motors to control the timing belts before the circular blade cutting and after the circular blade cutting .(But other companies’ machines use only one servo motor or NO servo motor, controlled by only inverter, which cannot guarantee accurate cutting.)

Circular blade outer diameter: 610mm

Blade grinding/sharpening system: Automatically and pneumatically grinding/sharpening, grinding/sharpening time and interval parameters can be set in the touch screen. For example, you can set it to sharpen for 1 seconds every 30 minutes or every 50 cuts.

Cutting system: 360° rotating cutting. (Not like other companies machines, the cutting system is only up-and-down cutting.)



Technical parameters of this High Speed Automatic Paper Towel Cutting Machine 200 Cut/Minute.



Main structure: Single lane cutting
Applicable material Facial tissue paper and interfold paper towels
Designed speed: 220 cut/min
Working speed:

80-200 cut/min

when cutting length 100mm, about 200 cut/min;

when cutting length 230mm, about 120 cut/min.

Infeed channel: With one piece infeed conveyor 3meters
Cutting delivery system Independent servo control and driving.
Cutting sizes ranges:

L 60-300mm adjustable

W 60-110mm

H 25-120mm or customized.

Cutting tolerance length: ±1mm
Cutting tolerance vertical: ±1.5mm





FAQ

Q: Are you trading company or manufacturer

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
