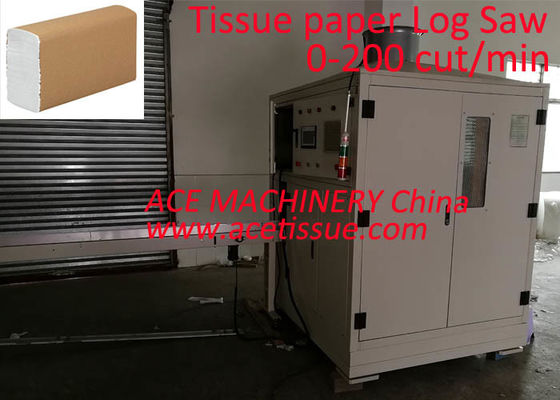

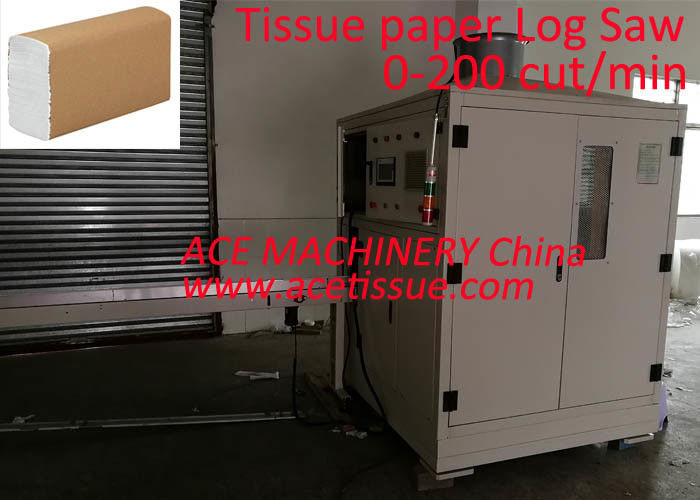

Touchscreen Log Saw Tissue Paper Cutting Machine Single Lane

China ACE MACHINERY CO.,LIMITED certification
China ACE MACHINERY CO.,LIMITED certification
I have bought several high speed napkin paper machines from ACE MACHINERY. They have been working perfectly.

—— Michael

I was happy to buy tissue paper machines from ACE MACHINERY. They offered me high quality tissue machines and good after sales service.

—— Pat

For me, ACE is the best manufacturer high speed paper napkin machine and high speed hand towel machine in CHINA.

—— Gomez (paper napkin converter)

I'm Online Chat Now

Touchscreen Log Saw Tissue Paper Cutting Machine Single Lane

Touchscreen Log Saw Tissue Paper Cutting Machine Single Lane
Touchscreen Log Saw Tissue Paper Cutting Machine Single Lane
video play

Large Image :  Touchscreen Log Saw Tissue Paper Cutting Machine Single Lane

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-FLS
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $15000 - 50000
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 20 set /month
Detailed Product Description
Product: Log Saw Cutting Machine For Tissue Paper Application: Facial Tissue&interfold Paper Towels
Cut Speed: 200 Cut/minute Chanels: Single Lane Or Double Lanes
Control: High Speed Touch Screeen: Siemens Or International Brand
High Light:

touchscreen tissue paper cutting machine

,

log saw tissue paper cutting machine

,

single lane tissue cutting machine

High Speeed Automatic Log Saw Cutting Machine For Tissue Paper 200 Cut/Minute​



Description of this Fully Automatic High Speeed Automatic Log Saw Cutting Machine For Tissue Paper 200 Cut/Minute:

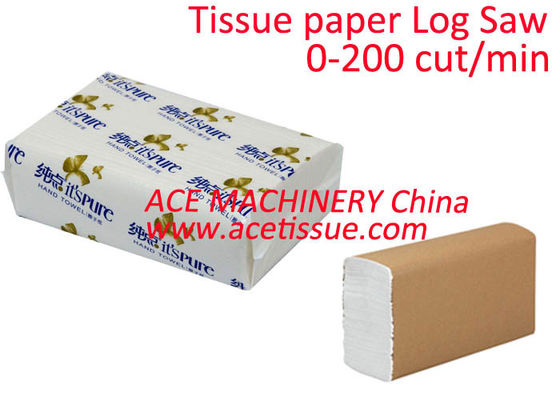

This ACE-FLS Fully Automatic High Speed Facial Tissue Log Saw Cutting Machine For Interfold Paper Towel is for cutting facial tissue paper, interfold hand paper towels, Z fold paper towels and also coreless toilet rolls. It can accommodate big ranges of cutting sizes. The height of log can be 140mm 150mm etc. It adopts 3 servo motors to control the cutting length and infeed to ensure the cutting accuracy.



Quick details:

1 For cutting facial tissue paper and hand towels

2 High speed 200 cut/min

3 Single lane

4 Servo motor control

5 Big ranges of cutting sizes



Mode technical details of ACE-FLS High Speeed Automatic Log Saw Cutting Machine For Tissue Paper 200 Cut/Minute.

Main structure: single channel.

Applicable material: facial tissues

Designed speed: 150 cut/min

Working speed: 80-140 cut/min

when cutting length 100mm, about 140 cut/min;

when cutting length 230mm, about 120 cut/min.

Infeed channel: With 1 piece of infeed conveyor 3 meters length.

Cutting delivery system: Independent servo control and driving.

Cutting sizes ranges: L 60-300mm adjustable

                                  W 60-110mm

                                   H 25-120mm

Cutting tolerance length: ±1mm

Cutting tolerance vertical: ±1.5mm

Output delivery: During the whole log saw cutting process, the tissues are pressed by Top timing belts + bottom timing belts to prevent the belts getting slippery and guarantee every cut accurate cutting. (But other company machines use flat belts which would definitely get slippery and no-accurate cutting.)

Blade grinding/sharpening system: Automatically and pneumatically grinding/sharpening, grinding/sharpening time and interval parameters can be set in the touch screen. For example, you can set it to sharpen for 1 seconds every 30 minutes or every 50 cuts.

Cutting system: 360° rotating cutting. (Not like other companies machines, the cutting system is only up-and-down cutting.)

Trim removal system: Automatically blew away by air. Trimmed size: 20-65mm.





Technical parameters of this High Speeed Automatic Log Saw Cutting Machine For Tissue Paper 200 Cut/Minute.



Main structure: Single lane cutting
Applicable material Facial tissue and hand towel
Designed speed: 220 cut/min
Working speed:

80-200 cut/min

when cutting length 100mm, about 140 cut/min;

when cutting length 230mm, about 120 cut/min.

Infeed channel: With one piece infeed conveyor 3meters
Cutting delivery system Independent servo control and driving.
Cutting sizes ranges:

L 60-300mm adjustable

W 60-110mm

H 25-120mm

Cutting tolerance length: ±1mm
Cutting tolerance vertical: ±1.5mm





FAQ

Q: Are you trading company or manufacturer

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
