Fully Automatic Facial Siemens Tissue Paper Cutting Machine For Interfold Paper Towel

Fully Automatic Facial Siemens Tissue Paper Cutting Machine For Interfold Paper Towel
Fully Automatic Facial Siemens Tissue Paper Cutting Machine For Interfold Paper Towel
video play

Large Image :  Fully Automatic Facial Siemens Tissue Paper Cutting Machine For Interfold Paper Towel

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-FLS
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $15000 - 50000
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 20 set /month
Detailed Product Description
Product: Facial Tissue Log Saw Cutting Machine Application: Facial Tissue&interfold Paper Towels
Cut Speed: 200 Cut/minute Chanels: Single Lane Or Double Lanes
Control: Fully Automatic High Speed Touch Screeen: Siemens
High Light:

siemens tissue paper cutting machine

,

interfold tissue paper cutting machine

Fully Automatic High Speed Fully Automatic Fully Automatic Facial Tissue Log Saw Cutting Machine For Interfold Paper Towel



Description of this Fully Automatic Facial Tissue Log Saw Cutting Machine For Interfold Paper Towel​​ 200 Cut Per Minute:

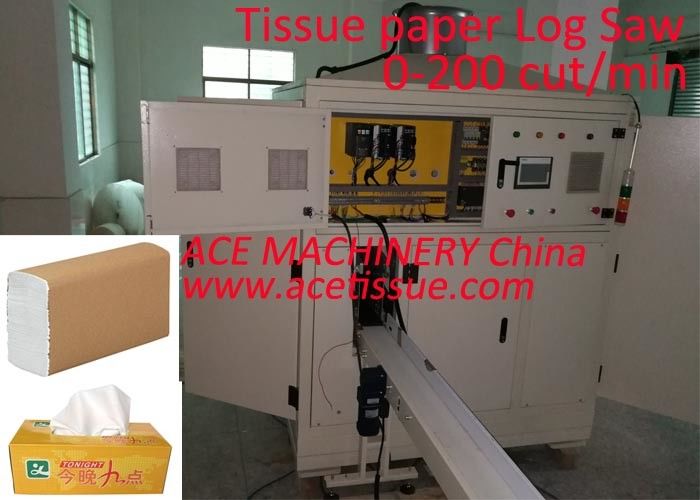

This ACE-FLS Fully Automatic High Speed Facial Tissue Log Saw Cutting Machine For Interfold Paper Towel is for cutting facial tissue paper, interfold hand paper towels, Z fold paper towels and also coreless toilet rolls. It can accommodate big ranges of cutting sizes. The height of log can be 140mm 150mm etc. It adopts 3 servo motors to control the cutting length and infeed to ensure the cutting accuracy.



Quick details:

1 For cutting facial tissue paper and hand towels

2 High speed 200 cut/min

3 Single lane

4 Servo motor control

5 Big ranges of cutting sizes



Mode technical details of ACE-FLS Fully Automatic Facial Tissue Log Saw Cutting Machine For Interfold Paper Towel​.

Main structure: single channel.

Applicable material: facial tissues

Designed speed: 150 cut/min

Working speed: 80-140 cut/min

when cutting length 100mm, about 140 cut/min;

when cutting length 230mm, about 120 cut/min.

Infeed channel: With 1 piece of infeed conveyor 3 meters length.

Cutting delivery system: Independent servo control and driving.

Cutting sizes ranges: L 60-300mm adjustable

W 60-110mm

H 25-120mm

Cutting tolerance length: ±1mm

Cutting tolerance vertical: ±1.5mm

Output delivery: During the whole log saw cutting process, the tissues are pressed by Top timing belts + bottom timing belts to prevent the belts getting slippery and guarantee every cut accurate cutting. (But other company machines use flat belts which would definitely get slippery and no-accurate cutting.)

Adopt 2 servo motors to control the timing belts before the circular blade cutting and after the circular blade cutting .(But other companies’ machines use only one servo motor or NO servo motor, controlled by only inverter, which cannot guarantee accurate cutting.)

Circular blade outer diameter: 610mm

Blade grinding/sharpening system: Automatically and pneumatically grinding/sharpening, grinding/sharpening time and interval parameters can be set in the touch screen. For example, you can set it to sharpen for 1 seconds every 30 minutes or every 50 cuts.

Cutting system: 360° rotating cutting. (Not like other companies machines, the cutting system is only up-and-down cutting.)

Trim removal system: Automatically blew away by air. Trimmed size: 20-65mm.

Control system:

PLC programmed control,

Inverter for variable frequency speed control,

Touch screen for operation





Technical parameters of this Fully Automatic Facial Tissue Log Saw Cutting Machine For Interfold Paper Towel.



Main structure: Single lane cutting
Applicable material Facial tissue and hand towel
Designed speed: 220 cut/min
Working speed:

80-200 cut/min

when cutting length 100mm, about 140 cut/min;

when cutting length 230mm, about 120 cut/min.

Infeed channel: With one piece infeed conveyor 3meters
Cutting delivery system Independent servo control and driving.
Cutting sizes ranges:

L 60-300mm adjustable

W 60-110mm

H 25-120mm

Cutting tolerance length: ±1mm
Cutting tolerance vertical: ±1.5mm
