| Name: | Automatic Machine To Make Tissue Papers, High Speed Tissue Making Machine Paper | Output: | 6lanes |
|---|---|---|---|
| Speed: | 1000 Piece/min | Products: | Z Multifold Paper Towels |
| Embossing: | Steel To Rubber | Control: | PLC |
| High Light: | 6 Lanes Tissue Paper Machine,6 Lanes tissue napkin making machine,1200mm x 1200mm Tissue Paper Machine |
||
Description

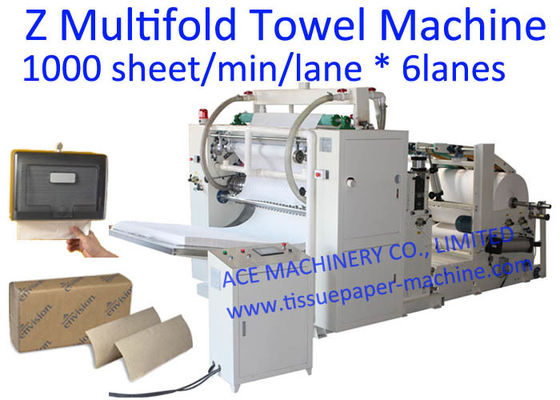

This tissue machine is for the production of Z fold multifold interfolded paper hand towels. It can be with steel to steel or lamination. Unlike N fold traditional interfolding machine, we adopts Europe design for our machine folding system. So the production speed is very high. It can reach real working speed about 1000 sheet/min/lane.
Quick details
1 Z Multifold paper towel machine
2 With steel to steel embossing
3 High speed
4 Europe design
Technical parameters
A. Jumbo roll
a. Jumbo roll specification: 16-55g/㎡ 1 ply virgin tissue paper (Other sizes to be specified)
b. Jumbo roll size: ≤1200mm x Φ1200mm；(Other size available.)
c. Jumbo roll core diameter:Φ76mm；
B. Product size
a. For N fold paper towels.
b. Unfolded size: 210±2mm x 200mm. Other size to be specified.
c. Folded size: 70±2mm x 200mm.
d. Fixed cutoff size is 210mm .
e. The cutting length is adjustable.
f. Folding type: N Z fold, interfold and Vacuum folding type.
C. Paper feeding
a. With 1 back stands, controlled by pneumatic cylinders.
b. With 1 sets of stepless-adjustment cone pulleys hand wheels to control jumbo roll web tension.
c. Synchronism paper feeding unit.
d. With hand wheel for each jumbo roll to adjust the jumbo roll to the left or right.
e. Pneumatic loading Jumbo roll automatically；
F. Control system
a. Speed: 1000 piece/min/lane x 6lanes.
b. Speed of production is controllable.
c. Main motor control by inverter
d. Automatic counting system, each stack of 100 pieces, 150pieces, 200 etc.
e. With JOG function for folding unit, embossing unit etc. for easy guide the papers.
f. With emergency stop function for folding unit, embossing unit etc. for safety, you can stop the machine in any case of emergency.
g. Machine will automatically stop if paper break or paper jams.
h. Power:5.5-7.5KW for main motor 3-phase AC380V 50HZ or customized.
i. With Taiwan vacuum pump, about 15 to 18.5KW.
j. Vacuum pump for adsorption (included in quotation.)
k. Air pressure: 0.5Mpa(buyer supplied)
l. Machine weight: 3500kg.
m. Machine size: 6000x1600x2100mm.
n. Important parts:
Japan Omron sensors.
France Schneider electronics like contactors.
Japan NSK or Sweden SKF bearings.
Taiwan Airtac cylinders.
Taiwan vacuum pump, less noise and power.
The best brand motor made in China.
Brands of components used on this Automatic machine to make tissue papers, high speed tissue making machine paper:
| PLC | Mitsubishi |
| Inverter | Mitsubishi |
| Touch screen | Mitsubishi |
| Electrical parts | Omron |
| Pneumatic parts | Airtac |
| Bearings | SKF NSK |
| Sensors | Sick |
| Timing bels | Tiger |
| Vacuum pump | Taiwan Longtech |
Finished products of this Automatic machine to make tissue papers, high speed tissue making machine paper:
