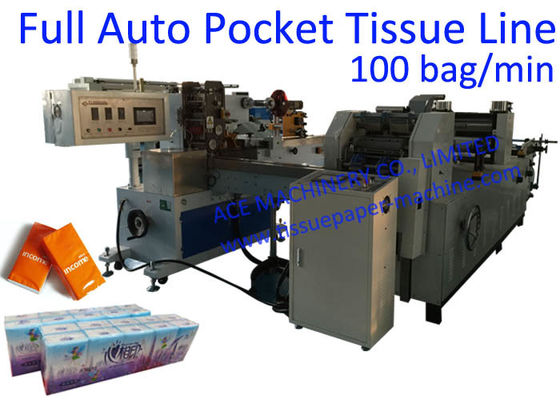

Single Lanes Hanky Pocket Tissue Paper Machine

Single Lanes Hanky Pocket Tissue Paper Machine
Single Lanes Hanky Pocket Tissue Paper Machine

Large Image :  Single Lanes Hanky Pocket Tissue Paper Machine

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-PTL
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $20000 - 100000/set
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, , T/T
Supply Ability: 5 set /month
Detailed Product Description
Name: Automatic Pocket Tissue Paper Machine, High Speed Handkerchief Napkin Machine Automatic: Full Automatic
Speed: 100 Bag/min Products: Hanky Pocket Tissue
Packing: Single And Multi Bag Per Pack Control: PLC
High Light:

Hanky Pocket Tissue Paper Machine


Single Lanes tissue paper maker machine


72x51mm Tissue Paper Machine

Automatic pocket tissue paper machine, high speed handkerchief napkin machine



This Automatic pocket tissue paper machine, high speed handkerchief napkin machine is used to manufacture pocket tissue, hanky napkin, paper handkerchief etc. take-away tissue paper products. It consists of pocket tissue embossing folding printing machine, automatic single bag pocket tissue packing machine, multi bags paper handkerchief packaging machine. It is a whole full automatic pocket tissue production line with auto transfer to the packing machine. No need any worker. Each has 8 or 10 pieces and 10 bags in a bundle package.


Quick details

1 Full automatic, no worker.

2 High speed 100 bag/min.

3 With beautiful embossing

4- Good price high efficiency.


Handkerchief Line need 1 worker in the multi bag packing machine

Fully auto Handkerchief folding Machine with single lane Delivery

Technical Specification:

1. Basis weight of paper is 13 ÷ 15.5 g/m² 2-4 layers wooden virgin pulp paper.

2. Parent roll size: Width 210mm x Φ1100mm.

3. Unfolded size: 200x200mm. (able to make 2 types pocket tissues. The longer one and shorter one.)

4. Folded size: 72x51mm±2mm Fold type: standard fold (Z-fold) shorter one

104.5x51mm±2mm Compact fold (N-fold) The longer one

5. Folder type: Vacuum absorbing; Z-fold or N-fold type.

6. Embossing unit: 1 set of Steel to rubber embossing unit. (embossing design specified by customer)

7. With single lanes output delivery

8. Capacity: 500-800sheet/min

9. With automatic counting and transfer system to count and transfer the pocket tissues(8pcs, 10pcs, etc.) from the folding machine to the conveyor of the single bag packing machine. No need worker to take and put the pocket tissues.

10. Stepless adjusting speed to control web-tension of paper.

11. Power: about 7.5Kw to 11kw (3-phase AC380V 50Hz or customized)

12. Pressure: 0.5MPa.

13. Overall size: 4x1.2x1.3(M)

14. Weight: about 3000kg


Fully auto Single Bag Packing Machine

Main features

The single bag packing machine adopts advanced PLC control, touch screen and variable frequency speed control to make it high automation and easy-operation.

The whole processes feeding paper, sealing, labeling are automatically completed, greatly saving lots of labor costs while increasing the production efficiency etc.

It is with malfunction alarming system, easy to find out and solve the problem.

The driving system adopts advanced variable frequency speed control, touch screen to make precise positioning.

With advanced system to reduce static electricity to insure perfect packing and stable performance.

With intelligent temperature controlling system for easy adjusting the temperature.

With automatic production date printing system(decode system) (Optional)

Technical parameters

Packing size: L(70-110)xW(50-55)xH(22-28)mm

Packing speed: 60-100 pack/min

Packing film material: CPP etc.

Control system: PLC control, touch screen, variable frequency speed control (inverter), and famous brands.

Installed power: about 4-6KW

Power supply: 3phase 380v 50hz or customized.

Air pressure: 0.5Mpa

Machine size: 3200x3100x1900mm

Machine weight: 1500kg



Brands of Components used on Automatic pocket tissue paper machine, high speed handkerchief napkin machine.

Inverter SIEMENS
Touch screen SIEMENS
Servo motor INVT
Servo drive INVT
Bearings NSK SKF
Electrical parts Schneider
Pneumatic parts Airtac
Sensor Sick




Finished products of this Automatic pocket tissue paper machine, high speed handkerchief napkin machine:

pocket tissue paper machine
