Mechanical Folding Mini 2 Lanes Tissue Paper Manufacturing Machine

China ACE MACHINERY CO.,LIMITED certification
China ACE MACHINERY CO.,LIMITED certification
I have bought several high speed napkin paper machines from ACE MACHINERY. They have been working perfectly.

—— Michael

I was happy to buy tissue paper machines from ACE MACHINERY. They offered me high quality tissue machines and good after sales service.

—— Pat

For me, ACE is the best manufacturer high speed paper napkin machine and high speed hand towel machine in CHINA.

—— Gomez (paper napkin converter)

I'm Online Chat Now

Mechanical Folding Mini 2 Lanes Tissue Paper Manufacturing Machine

Mechanical Folding Mini 2 Lanes Tissue Paper Manufacturing Machine
Mechanical Folding Mini 2 Lanes Tissue Paper Manufacturing Machine

Large Image :  Mechanical Folding Mini 2 Lanes Tissue Paper Manufacturing Machine

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: TNL-2H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $20000 - 100000/set
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, , T/T
Supply Ability: 10 set /month
Detailed Product Description
Type: Automatic Tissue Paper Manufacturing Machine Tissue Line: Full Line With Packing
Speed: 2000 Sheet/min Fold Type: Mechanical Folding
Origin: Taiwan Technology Warranty: 1 Year
High Light:

2 lanes tissue paper manufacturing machine

,

mini toilet tissue paper making machine

,

300mm facial tissue machine

Automatic toilet tissue paper making machine, tissue paper manufacturing machine

Quick details

  1. Full automatic no worker
  2. Speed 2000 sheet/min
  3. Printing
  4. Taiwan technology

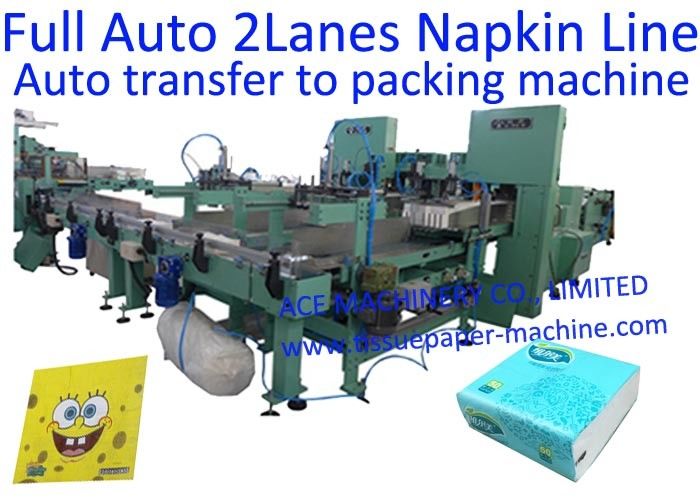

TNL-2H Fully-auto Napkin Line from jumbo roll to single pack NO need worker

2 lanes Output Delivery Napkin Machine

Technical parameter:

A. back stand

1. Parent roll specification: 18-75g/m2 1-ply; 13-18gsm 2 plies tissue paper. Or customized.

2. Parent roll size: ≤Φ1100 x 600mm (300mm * 2lanes = 600mm). Diameter x Width

3. Core inner diameter: 76mm



D. Printing Section (advanced design.)

1. With 2 colors flexo-graphic printer section.

2. Printing unit with driven by timing belts to make printing more precise.

3. Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.

4. The printing plate roller can be adjustable or disassembled from the printing unit, much easier for the operator to attach the printing rubber plates or clean the roller.



E. Folding Section

1. Open size: 300x300mm

2. Folded size: 150x150mm

3. Fixed cutoff size: 300mm.

4. Folder type: mechanical folding type, quarter fold type.

8. Capacity: 2000 piece/min, depending on paper quality, gsm and workers operation.

9. With automatic counting unit, every count 1 - 99999 sheet/count. With tissue pop up every count.

10. With auto transfer system to transfer the napkins from the napkin folder to the conveyor of the packing machine, no need any worker A to Z.





FNP Fully Automatic Napkin Packing Machine

Main characteristics & Structure features:

1. Adopt packing way by wrapping, hemming and sealing with compact structure suitable for packing regularly square objects, such as non-highly tight tissue and paper box.

2. Adopt the system of stepless frequency conversion controlling, touching screen and PLC.

3. Adopt auto-putting conveyor, easy to be connected with automatic production line, saving much laboring cost.

5. High automation, high specialization, high efficiency and less trouble.

6. Various packing size may change quickly among different tissue sizes.

7. Servo motor control

8. With perforation system to perforate dotted line on each pack of napkins.

9. With date coding system to print manufacture dates on each pack of napkins.

10. Automatic feeding lubrication oil to prolong the mechanical parts of the machine.



Components’ brands of Automatic high speed tissue paper napkin machine, low cost tissue paper machine

PLC Japan Mitsubishi
Inverter Japan Mitsubishi
Touch screen Japan Mitsubishi
Bearings SKF
Steel America
Technology Taiwan design
Folding blades Germany steel
Bandsaw blades Japan imported steel







FAQ

Q: Are you trading company or manufacturer

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.





Finished products of this Automatic high speed tissue paper napkin machine, low cost tissue paper machine:

toilet tissue paper making machine
