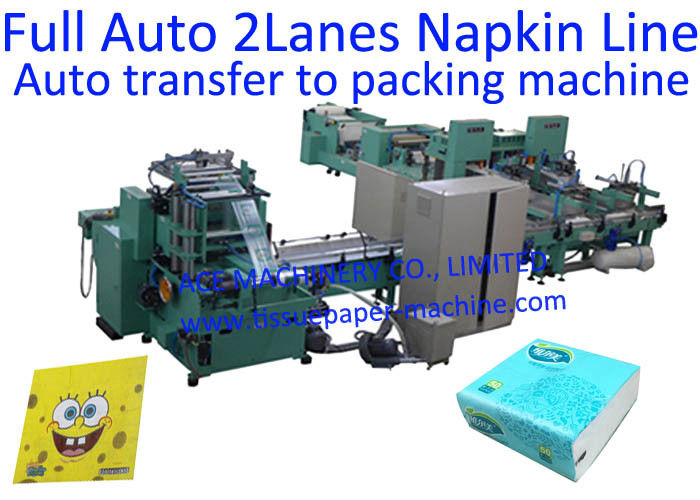

2000 Sheet/Min 2 Lanes Folder Tissue Paper Machine

2000 Sheet/Min 2 Lanes Folder Tissue Paper Machine
2000 Sheet/Min 2 Lanes Folder Tissue Paper Machine

Large Image :  2000 Sheet/Min 2 Lanes Folder Tissue Paper Machine

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: TNL-2H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $20000 - 100000/set
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, , T/T
Supply Ability: 10 set /month
Detailed Product Description
Name: Automatic High Speed Tissue Paper Napkin Machine, Low Cost Tissue Paper Machine Tissue Line: 2Lanes Folder + Auto Transfer
Speed: 2000 Sheet/min Embossing: Steel To Paper
Origin: Taiwan Technology Warranty: 1 Year
High Light:

2 Lanes Folder Tissue Paper Machine

,

two Lanes tissue paper folding machine

,

76mm core tissue paper production machine

Automatic high speed tissue paper napkin machine, low cost tissue paper machine



TNL-2H Fully-auto Napkin Line from jumbo roll to single pack NO need worker

2 lanes Output Delivery Napkin Machine

Technical parameter:

A. back stand

1. Parent roll specification: 18-75g/m2 1-ply; 13-18gsm 2 plies tissue paper. Or customized.

2. Parent roll size: ≤Φ1100 x 600mm (300mm * 2lanes = 600mm). Diameter x Width

3. Core inner diameter: 76mm



C. Embossing Section

1. One set of steel to paper embossing unit. (Embossing pattern provided by client or recommend by us)

2. Mechanical press type.



D. Printing Section (advanced design.)

1. With 2 colors flexo-graphic printer section.

2. Printing unit with driven by timing belts to make printing more precise.

3. Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.

4. The printing plate roller can be adjustable or disassembled from the printing unit, much easier for the operator to attach the printing rubber plates or clean the roller.



E. Folding Section

1. Open size: 300x300mm

2. Folded size: 150x150mm

3. Fixed cutoff size: 300mm.

4. Folder type: mechanical folding type, quarter fold type.

5. Synchronizer for feeding paper

6. Loop knife cutting, and distance of two can be adjustable

7. With 1 deck output delivery. (Double decks available)

8. Capacity: 2000 piece/min, depending on paper quality, gsm and workers operation.

9. With automatic counting unit, every count 1 - 99999 sheet/count. With tissue pop up every count.

10. With auto transfer system to transfer the napkins from the napkin folder to the conveyor of the packing machine, no need any worker A to Z.





FNP Fully Automatic Napkin Packing Machine

Main characteristics & Structure features:

1. Adopt packing way by wrapping, hemming and sealing with compact structure suitable for packing regularly square objects, such as non-highly tight tissue and paper box.

2. Adopt the system of stepless frequency conversion controlling, touching screen and PLC.

3. Adopt auto-putting conveyor, easy to be connected with automatic production line, saving much laboring cost.

4. It saves much packing material by the function of photocell checking, servo tracking, non-material feeding without tissue.

5. High automation, high specialization, high efficiency and less trouble.

6. Various packing size may change quickly among different tissue sizes.

7. Servo motor control

8. With perforation system to perforate dotted line on each pack of napkins.

9. With date coding system to print manufacture dates on each pack of napkins.

10. Automatic feeding lubrication oil to prolong the mechanical parts of the machine.





Technical parameters of Automatic high speed tissue paper napkin machine, low cost tissue paper machine:

Napkin sizes

180x180mm (folded 90x90mm)

240x240mm (folded 120x120mm)

250x250mm (folded 125x125mm)

300x300mm (folded 150x150mm)

330x330mm (folded 165x165mm)

400x400mm (folded 200x200mm)

430x430mm (folded 215x215mm)

Folding type

Mechanical folding

1/4 quarterfold

1/6 tallfold

1/8 fold

1/12 fold

Printing unit Up to 4 colors printing

Full Embossing unit

Edge embossing unit

Steel to paper embossing

Steel to steel embossing

Steel to mirror embossing

Speed 2000 sheet/min
Automatic

Fully automatic A to Z no need worker

With auto transfer to napkin packing machine

Control system

PLC control

Touch screen for data setting

Inverter frequency speed control

Servo motor control the auto transfer

With JOG function, easy for threading the paper and maintenance.

With emergency stop function, better for safety, you can stop the machine any time when there is emergency.

With auto sensors for detecting paper breaks or used up. Machine will automatically stop if paper breaks or used up.

Power About 4KW
Machine size About 6*1.5*2m
Machine weight About 4000kg





Components’ brands of Automatic high speed tissue paper napkin machine, low cost tissue paper machine

PLC Japan Mitsubishi
Inverter Japan Mitsubishi
Touch screen Japan Mitsubishi
Bearings SKF
Steel America
Technology Taiwan design
Folding blades Germany steel
Bandsaw blades Japan imported steel





Finished products of this Automatic high speed tissue paper napkin machine, low cost tissue paper machine:

cost tissue paper machine
