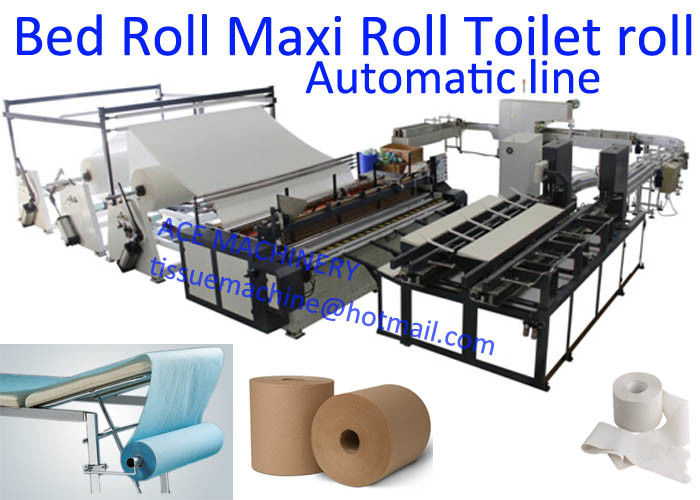

Automatic Bed Roll Maxi Roll Toilet Roll Machine

1. Jumbo roll
   1. Jumbo roll specification: 12-45 g/m² 1 or 2 ply virgin tissue paper or other tissues.
   2. Jumbo roll size: ≤1200mm to 3500mm x Φ1200mm; (Other size available.)
   3. Jumbo roll core diameter: Φ76mm.

2. Product size
   1. Finished product type: toilet papers, bed sheet rolls, maxi rolls, HRT, HRT.
   2. Finished roll inner core diameter adjustable from 50 to 76mm. Or customized.
   3. Finished rolls diameter is adjustable 80 to 250mm.

3. Unwinder Section
   1. With 2 jumbo roll back stands.
   2. Each jumbo roll stand is driven by one separate motor. NOT driven by traditional belts or chains.
   3. Jumbo Roll diameter: Max. Ф1200mm (Other size, please specify).
   4. Core diameter: Ф76mm.
   5. Pneumatic loading jumbo rolls automatically.
   6. Jumbo roll tension can be adjustable.
   7. With wide flat belts for feeding the jumbo roll.
   8. Each jumbo roll can be adjusted to left or right by independent motor electrically. NOT by hand.

4. Rewinding Section
   1. With core tank for automatic feeding paper cores.
   2. Core diameter adjustable.
   3. With automatic perforation system: Perforation size is adjustable.
   4. With automatic finished roll tail trimming and sealing system to seal the logs with straight glue lines.
   5. It can convert 1 or 2 plies jumbo roll of difference gsm paper, depending on jumbo rolls.
   6. With strong structure to ensure high speed running..
   7.
5. Full Embossing Section
   1. With 1 set of steel-to-rubber full embossing unit.
   2. Controlled by pneumatic type design cylinders. NOT screws.
   3. Heavy chrome coating.
   4. Famous brand bearings for embossing rolls, perforation rolls, etc.
6. Control system
   1. Machine speed: 0-200m/min.
   2. Speed of production is controllable.
   3. With automatic count function. (How many sheets per roll or how big diameter per roll)
   4. With inverter to stabilize the power fluctuation.(Variable Frequency)
   5. With JOG function.
   6. With emergency stop function.
   7. Machine will automatically stop if paper break or paper jams.
   8. Power: 11KW for main motor 3-phase AC380V 50HZ or customized.
   9. Air pressure: 0.5Mpa(buyer supplied)
   10. Machine weight: 3500kg.
   11. Machine size: 7000x4000x1800mm.
   12. Important parts:

Japan Omron sensors.

France Schneider electronics like contactors.

The best China bearings. (Even Japan NSK bearings for the main rollers.).

The best brand motor made in China.

• AJBS Automatic Bed Roll Cutter

Main technical details

1. Easy operation, low noise, stable running, high production efficiency.
2. The whole machine adopts advanced PLC program, inverter(variable frequency) speed control, Human-Machine Interface(touch screen).
3. Servo motor driving.
4. Servo motor control the infeed and cutting to ensure accurate cutting sizes.
5. Single channel conveyor.
6. Finished roll outer diameter adjustable: 150-250mm. (Or 200-300mm, the range between minimum diameter and maximum diameter is 100mm.)
7. Equipped with advanced photocell detection system.
8. Automatic blade sharpening system (national patented), human-machine interface to control the feeding of the grinding stones to ensure the sharpness of the band saw blades.
9. Machine will automatically stop if the machine is empty.
10. Less consumption of blades.
11. Cutting speed and length can be set on the touch screen. Infeed and cutting will be smoother and more continuous.
12. Suitable for cutting rolls with and without cores with small cutting size tolerance, perfect cutting and accurate cutting.

• Infeed roll length: max 3000 mm, or customized.
• Cutting length: adjustable, servo control.
• Cutting speed: about 30-40 cut/min.
• Finished roll size(big cutting size range)

• Servo driving
• Stainless cover/Timing belt infeed structure.
• Power: about 12KW
• Power supply: 3phase 380V50HZ or customized.
• Machine dimension: 3760*1680*1850mm
• Weight: about 1200KGS

FBSS-S Automatic Sealing Machine for JRT

Used to seal and shrink roll products like tissue roll etc.

JRT sizes:

JRT roll height: maximum 120mm. Or customized.

JRT roll diameter: maximum 280mm

Automatic sealing machine

Maximum sealing height 120mm

Sealing line size: 450x550mm.

Sealing speed: 15-25 roll/min.

Air required:4-5 kg/cm2.

Machine dimension: 1750x900x1450mm.

Machine weight: 300kg.

Power: 1.35kw.

Electricity: 220 50/60hz.

Automatic shrink machine.

Shrink chamber dimension: 1200x450x220mm. LxWxH.

Shrink speed: 0-10m/min.

Loading weight: 10kg.

Machine power:9.6kw.

Electricity: 3 phase 220v 60hz.

Machine dimension: 1600x720x1300mm.

Machine weight: 130kg.
