| Product Name: | High Speed Tissue Paper Machine Jumbo Roll Slitter Rewinder 700 Meter Per Minute | Type: | Tissue Paper Slitting Rewinder |
|---|---|---|---|
| Control: | PLC | Warranty: | 1 Year |
| Certificate: | CE | Speed: | 700 M/min |
| High Light: | Tissue Paper Jumbo Roll Slitter Rewinder,CE toilet paper rewinding machine,1950mm Tissue Paper Machine |
||

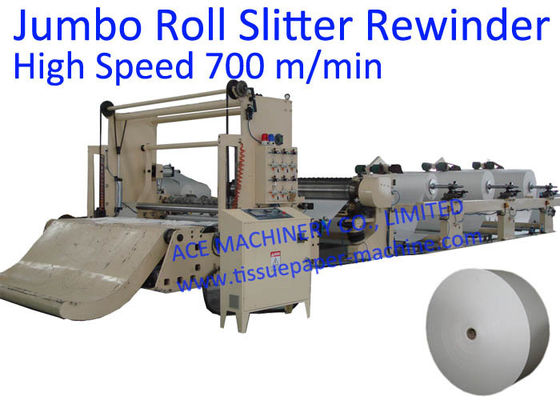

Application of High Speed Tissue Paper Machine Jumbo Roll Slitter Rewinder 700 meter per minute.
This high speed jumbo roll slitting rewinding machine is used to slit and rewind the jumbo tissue paper rolls produce by the paper mills into smaller rolls with desired width and diameter. The finished rolls will be used on the tissue converting machines like facial tissue paper machine, paper napkin machine, toilet tissue paper machine, pocket tissue paper machine etc. The speed can be 700 meters per minute.
Quick details
1- Speed 700m/min.
2- Advanced design.
3- Labor saving.
Technical parameters of High Speed Tissue Paper Machine Jumbo Roll Slitter Rewinder 700 meter per minute.
| Machine model | 1092 | 1575 | 2000 | 2200 | 2400 | 2600 | 2800 | Other sizes to be specified. | |
| Jumbo roll width(mm) | 1300 | 1750 | 1950 | 2150 | 2350 | 2550 | 2750 | ||
| Jumbo roll diameter | ≤Φ1200mm. | ||||||||
| Inner core diameter | 3”(76mm) | ||||||||
| Raw Material |
13-22 g/m2 for 2 plies, 18-40 g/m2 for single ply Tissue/Airlaid/Nonwoven. Other g/m2 to be customized. |
||||||||
| Finished Roll Diameter | Adjustable, Max. Φ1200mm Other sizes to be customized. | ||||||||
| Finished Roll Width | Adjustable, Minimum 150mm. | ||||||||
| Speed | 500-700m/min, depending on paper quality, gsm and worker’s operation. | ||||||||
| Rewind Section |
Pneumatic expanding shaft rewinding. With edge suction system. |
||||||||
| Slitting system | Pneumatic slitter control | ||||||||
| Unwinder Section |
2 unwinders. Automatic loading jumbo roll pneumatically. With wide flat belt driven. |
||||||||
| Discharge system | Pneumatic discharge. | ||||||||
| Tension system | Manually adjusted by cone pulley or speed controller. | ||||||||
| Control system |
PLC control LCD display JOG function Emergency stop function Auto stop if paper breaks. Optical sensor detecting |
||||||||
| Installed Power | 4.5-100KW for main motor, 3phase 380V 50hz or customized. | ||||||||
| Air Pressure | 0.5Mpa(prepared by the customer). | ||||||||
| Optional Items | |||||||||
| Calendaring Section | Steel to steel or steel to rubber. | ||||||||
| Other requirements to be customized. | |||||||||
Finished products of our High Speed Tissue Paper Machine Jumbo Roll Slitter Rewinder 700 meter per minute.
