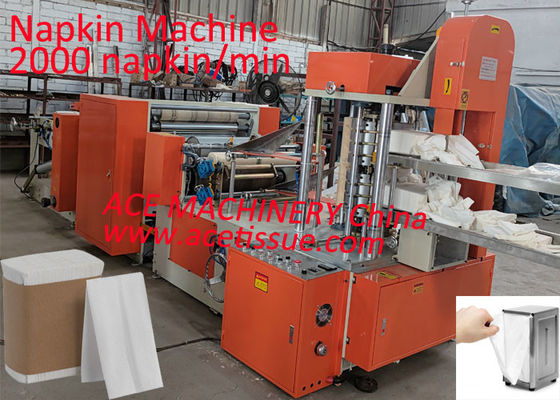

2 Lanes High Speed Tall Fold Napkin Paper Machine Bulky Embossing With 2 Colors Printing

2 Lanes High Speed Tall Fold Napkin Paper Machine Bulky Embossing With 2 Colors Printing
2 Lanes High Speed Tall Fold Napkin Paper Machine Bulky Embossing With 2 Colors Printing
video play

Large Image :  2 Lanes High Speed Tall Fold Napkin Paper Machine Bulky Embossing With 2 Colors Printing

Product Details:
Place of Origin: China
Brand Name: ACE
Certification: CE
Model Number: ACE-TNM-2L
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Name: High Speed Napkins Machine Embossing: Bulky Embossing Design
Design: Two Lanes Folding Style: 1/4 1/6 1/8
Speed: Up To 2500 Pc/min Counter: Automatic Count
High Light:

2 Lanes Napkin Paper Machine

,

2 Colors Napkin Paper Machine

,

Tall Fold Napkin Tissue Paper Machine

High Speed 2 Lanes High Speed Tall Fold Napkin Machine With 2 Colors Printing Best Design Taiwan Technology 330*165mm



Application of this 2 Lanes High Speed Tall Fold Napkin Machine With 2 Colors Printing Best Design Taiwan Technology.

This ACE-TNM-2L 2 Lanes High Speed Tall Fold Napkin Machine With 2 Colors Printing Best Design Taiwan Technology has a speed 2500 napkin/minute and is mainly used to automatically fold, emboss, print, cut and count 1/4 fold table napkins, cocktail napkin, restaurant napkins, beverage napkin, lunchen napkin, 1/6 fold tallfold dispenser napkin, wallet tissue and MG paper napkins etc. The mainly function of this machine is to manufacture plain, embossed and LOGO printed tissue paper napkins. It can run at very high speed up to 2600 sheets per minute.



Quick details:

1 Tall fold napkin Size 330*165mm or customized.

2 Steel to paper embossing unit

3 two colors printing napkin machine

4 mechanical 1/4 1/6 Z fold, N fold, 1/8 fold

5 High speed 2600 sheet/min



Technical parameters

ACE-TNM-2L 2 Lanes High Speed Tall Fold Napkin Machine With 2 Colors Printing Best Design Taiwan Technology



Model ACE-TNM-2L
Output type

2 decks

2 lanes

2 channels

4 lines

Folding speed 1000-2600 piece/min, depending on the paper quality and napkin size.
Raw paper

13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or nonwoven airlaid.

Other sizes please specify.

Jumbo roll size (200-460)mm x Φ1200mm (Depending on your napkin size,customized)
Napkin unfolded size

200mm x 200mm to 460mm x 460mm or Customized.

For tall fold dispenser napkin open size 330*165mm.

Napkin folded size

100mm x 100mm to 230mm x 230mm.

For tall fold dispenser napkin folded size 330*85mm.

One size is fixed.

One napkin size is adjustable, decided by the paper roll width.

Folding type

Mechanical fold with band saw cutting;

1/4 fold;

1/6 fold napkin

Z fold napkin

N fold napkin

Vacuum folding and other folding types available

Folding unit With folding fingers.
Embossing unit

1- Steel to paper(wool), Male to female. (Steel to steel is available.)

2- Embossing pattern can be any LOGO, brand name, flowers etc.

3- Embossing pattern can be customized by client or recommended by us

4- Controlled by screws, mechanical pressing type. Cylinder type is optional.

Tension control

Speedless Tension control unit to fit the machine for paper of different quaity and different gsm.

With automatic web guiding system.

With automatic web tension control system.

Power 5.5Kw depends on requiremetns (3-phase AC380V 50Hz or customized)
Machine size 7x2x3m
Weight 4000KG
Videos and photos available.





Configuration:

Bearings NSK
PLC Siemens
Inverter Siemens
Touch screen Siemens
Auto web guide Italy Best
Auto tension system Like
Steel High Speed steel
Anilox Ceramix





FAQ for this 2 Lanes High Speed Tall Fold Napkin Machine With 2 Colors Printing Best Design Taiwan Technology.



Q: Are you trading company or manufacturer

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
