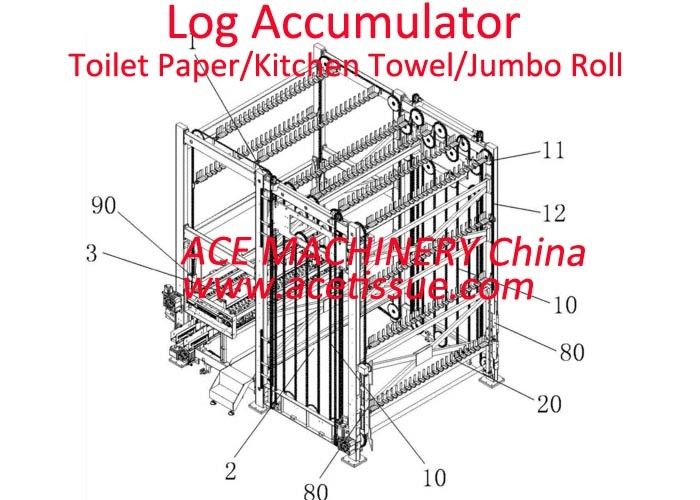

High Speed Log Accumulator For Toilet Tissue Paper Roll

High Speed Log Accumulator For Toilet Tissue Paper Roll
High Speed Log Accumulator For Toilet Tissue Paper Roll
video play

Large Image :  High Speed Log Accumulator For Toilet Tissue Paper Roll

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-LA100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Machine Name: Log Accumulator For Toilet Paper Tissue Log Accumulator Capacity: 100 Logs Or 200 Logs
Working Material: Toilet Tissue Paper Kitchen Roll Log Width: Kitchen Towel Toilet Paper Log 1300-4000mm
Log Loading Speed: 20 Log/minute Log Diameter: 90-150mm Or 150-250mm
High Light:

High Speed Log Accumulator

,

4000mm Log Accumulator

,

Toilet Tissue Paper Roll Log Accumulator

Fully Automatic High Speed Log Accumulator For Toilet Tissue Paper Roll



Application of this

This ACE-LA100 high speed Fully Automatic Log Accumulator For Toilet Tissue Paper Roll is a first-in-first-out design used as a buffer of stored logs between the rewinder line and downstream equipment to help maintain consistent production during process upsets and changeovers. It is a log accumulator for toilet paper, kitchen towel, JRT, maxi roll, jumbo roll tissue and also nonwoven airlaid rolls automatically load the toilet paper log and unload the tissue paper log to the cutting machine like log saw cutting machine or automatic band saw. It can be used as a storage between the toilet paper kitchen towel rewinder machine and the log saw machine.





Quick details:

1 Mother roll width 1200mm – 4000mm

2 A log accumulator for toilet paper kitchen towel jumbo roll tissue and nonwoven airlaid rolls.

3 Fully automatic.

4 High speed

5 Can connect to rewinder machine and logsaw cutting machine


Technical parameters of this Fully Automatic Log Accumulator For Kitchen Towel Paper Roll is as below



Model ACE-LA100 Log Accumulator
Machine name High Speed Log Accumulator For Toilet Tissue Paper Roll
Mother roll width(mm) 1300 1800 2000 2200 2400 2600 2800 3000 4000 Customized
Log width Up to 3000mm or customized
Machine speed about 20 log/minute.
Raw material

toilet paper

kitchen towel

maxi roll

JRT roll

jumbo toilet paper

MG paper

nonwoven roll or airlaid roll.

Other sizes please specify.

Log diameter 90-140mm. or 150 - 250mm or customized.
log accumulator storage capacity

100 logs or customized 200 lgs or 60 logs etc.

Automatic

fully automatic to work between the rewinder machine and the log saw cutting machine.

Point to point Lamination system

a. With one complete sets of point to point lamination units.

b. The whole design is copied Italy design.

c. Heavy chrome coating roll

d. Micro-adjustment of nips between the steel roll

e. Anilox roll for glue applicant.

f. Controlled by cylinders

g. Each lamination unit controlled by an independent reducer. When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry.



More specification of this High Speed Log Accumulator For Toilet Tissue Paper Roll.

1) The same safety devices as the other machines.

2) Automatic running, first log in, first log out, with automatic transfer into the log saw.

3) With 100 logs storage capacity, with two unloading system. (storage quantity can be confirmed.)

4) It will receive the logs from the rewinder, and discharge them into two saws, at the speed up to 20 logs/min.

5) Heavy frames, easy to assembly and disassembly to fit the container

6) Plastic trays for log support

7) Log length: 2800mm. (or customized.)

8) Power: 4KW

9) Machine size: 3000x3500x3600mm

10) Machine weight: 2500kg





FAQ of this High Speed Log Accumulator For Toilet Tissue Paper Roll:



Q1: Why choose our machine?
A: 1. High quality with competitive price.
2. 24 Hours Online Service (MSN, SKYPE, TRADEMANAGER)
3. 12 Months quality warranty
4. Engineers available to service machinery overseas

Q2: How to operate and maintain the machine?
A: 1. We will provide a professional and detailed USER GUIDE to you with the machine;
2. We also provide abroad technical training service.


Q7: why kitchen paper need to glue.(lamination)
A7: 1. After embossing, two plies of paper will be laminated by glue, and the paper will be even

fluffier than normal embossing.

2. Laminated paper could absorb more water more quickly, make the paper more useful

during cleanning.

3. Also, we could use color glue to make the paper more beatiful and attractive.





Welcome to contact us to find out more details of this Fully automatic Facial tissue paper packing machine.
