| Other Name: | Full Automatic Facial Tissue Multi Packing Machine | Packing Format: | 3-48 Bags Per Bundle |
|---|---|---|---|
| Pack Material: | PE Pre Made Bags | Pack Speed: | 0-25 Pack/minute |
| Automatic: | Fully Automatic With Transfer | Working Products: | Hand Towel/facial Tissue And Napkins |
| Highlight: | PE Bags Tissue Paper Packing Machine,PLC control Tissue Paper Packing Machine,PLC control Facial Tissue Packing Machine |
||

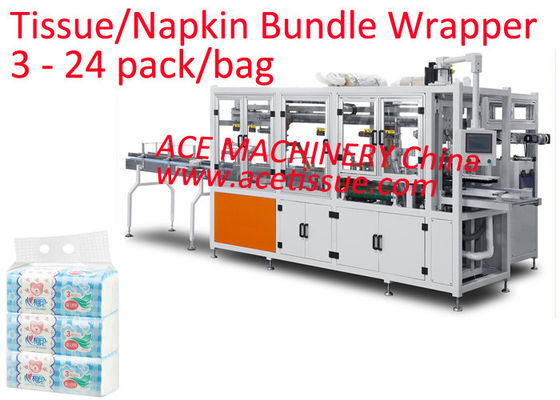

Application of this Full Automatic Facial Tissue Multi Packing Machine For V Fold Hand Towels With PE Bags 3-48 Bag/Bundle:
This Full Automatic Facial Tissue Multi Packing Machine For V Fold Hand Towels With PE Bags 3-48 Bag/Bundle is an ideal machine to pack hygienic tissue rolls in the format single row and double rows of 2 * 4 bags (8 bags), 2 * 5 bags (10 bags) , 2 * 6 bags (12 bags) etc. It can greatly increase the production and save lots of labor. It is an economical good price tissue paper packing machine for small scale tissue converting factory.
Main features:
1. The whole machine needs PLC and servo motor as the control and driving unit to realize the automatic operation of product automatic conveying, reversing, counting, bag taking, bag opening, bag feeding and sealing;
2. Mold forming: The sealing adopts the negative pressure molding design of the mold to ensure the beautiful packaging effect;
3. Human-machine interface: double touch screen setting and operation, simple and convenient operation;
4. Fault tracking and alarm: It can quickly find out the cause and location of the fault and automatically display it on the touch screen, which is convenient for equipment maintenance;
5. Monitoring system: monitoring the presence or absence of packaging bags and products to prevent operation without packaging bags or products; automatic discharge when the shape of the packaging bag is abnormal, automatic shutdown when the bag is abnormally opened, and failure to open the bag due to the adhesion of the packaging bag When the bag is automatically discharged;
6. The packing speed can be adjusted freely;
7. Temperature control system: The heating wire is used for instant heating and AC control mode, which has strong adaptability to the corona quality of the packaging bag, and effectively avoids the disadvantages of false sealing;
8. The single-channel feeding mode is adopted, which can be connected with a single charter machine.
Advantage:
1 Full Auto Packaging Machine For Hand Towel/napkin.
2 fully automatic.
3 high speed up to 25 pack/minute.
4 Save labor costs.
6 Easy operation.
7 can pack up to 48 bags/pack.
Technical parameter of Full Automatic Facial Tissue Outer Packing Machine For Paper Napkin 3-48 Bag/Bundle:
| Machine model | ACE-VBM-A |
| Packing speed | 10-25 packs/min |
| Max bundle bag length | 420mm |
| Able to pack | hand towel, facial tissue, napkin paper etc. |
| Finished bundle bag width | 130-420mm |
| Finished bundle bag height | 90～105mm |
| Bundle bag max length | 640mm |
| Bundle bag packing type |
3,4,5,6,8,10bags/bundle single lane 4,6,8,10,12,24,48 bags/bundle double lanes |
| Bundle bag material | Pre-made PE bags with air outlet hole(dia 5-6mm),the thickness is 40-60μm, opp, cpp, pe double side sealing film |
| Pre-made PE bag qty | 2 bag base for changing and each one can hold 300-400 pcs |
| Machine out-dimension | 4900×2900×1920 mm |
| Machine power supply | 380V±10%,50Hz±5% |
| Air supply | 0.6～0.7Mpa ,330L/min |
| Machine weight | About 2500kg |
| Noise | <80dB |
| Total power | 12.56Kw |
FAQ
Q: Can you provide the installation videos?
A: Yes, we will provide.
Q: What's the production time?
A: Normally it is 40-60 working days, it depends on your customized requirements.
Q: How long is your warranty?
A: One year of the machine, wearing parts not included.
Q: Can your company do customized machine?
A: Yes we can. We have more than 20 years of experiences for customized designs and OEM service..
Q: How about your after-sales services?
A: We offer online instructions or onsite if necessary.
Q: Can you provide the installation videos?
A: Yes, we will provide.
Sample of finished product by Full Automatic Facial Tissue Multi Packing Machine For V Fold Hand Towels With PE Bags 3-48 Bag/Bundle.
