Germany Design Super High Speed Paper Napkin Converting Machine 4 Lines 5000 Napkin Per Minute

China ACE MACHINERY CO.,LIMITED certification
China ACE MACHINERY CO.,LIMITED certification
I have bought several high speed napkin paper machines from ACE MACHINERY. They have been working perfectly.

—— Michael

I was happy to buy tissue paper machines from ACE MACHINERY. They offered me high quality tissue machines and good after sales service.

—— Pat

For me, ACE is the best manufacturer high speed paper napkin machine and high speed hand towel machine in CHINA.

—— Gomez (paper napkin converter)

I'm Online Chat Now

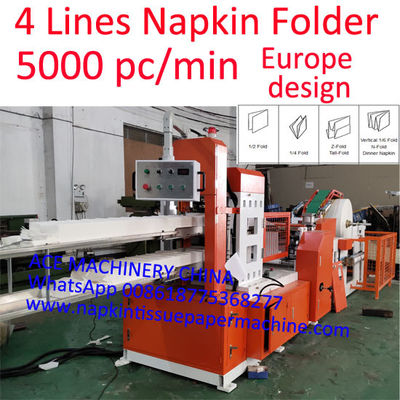

Germany Design Super High Speed Paper Napkin Converting Machine 4 Lines 5000 Napkin Per Minute

Germany Design Super High Speed Paper Napkin Converting Machine 4 Lines 5000 Napkin Per Minute
Germany Design Super High Speed Paper Napkin Converting Machine 4 Lines 5000 Napkin Per Minute
video play

Large Image :  Germany Design Super High Speed Paper Napkin Converting Machine 4 Lines 5000 Napkin Per Minute

Product Details:
Place of Origin: China
Brand Name: ACE
Certification: CE
Model Number: ACE-TNM-2L-4H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Name: Paper Napkin Converting Machine Folding Speed: 5200 Sheet/min
Technology: Germany Paper Napkin Converting Machine Folding Style: 1/4 1/6 1/8 1/12 Fold.
Finished Napkin: 4 Folds Paper Napkin Machine Design: Heavy Duty Paper Napkin Converting Machine
Highlight:

Super High Speed Paper Napkin Machine

,

Paper Napkin Machine 5000 Sheet/Min

,

Tissue Converting Machine 5000 Sheet/Min

Germany Design Super High Speed Paper Napkin Converting Machine 4 Lines 5000 Napkin Per Minute



Application

This ACE-TNM-2L-4H Germany Design Super High Speed Paper Napkin Converting Machine 4 Lines 5000 Napkin Per Minute is for the production of 4 folds napkin, 8 folds napkin, 6 folds napkin, KFC napkin, Starbucks napkin, McDonald's Coffee Napkin, table napkin, beverage napkin, mini bar napkin, z fold paper napkin, 1/4 fold table napkins, cocktail napkin, hotel napkins, restaurant napkins, beverage napkin, lunchen napkin, 1/6 fold tallfold dispenser napkin, wallet tissue, custom airlaid nonwoven napkins and MG paper napkins etc. This serviette napkin machine can make customized embossing, color printing or point to point lamination on the serviette napkin papers. It can also connect to automatic serviette napkin packing machine to form a complete fully automatic transfer serviette napkin production line.





This Germany Design Super High Speed Paper Napkin Converting Machine 4 Lines 5000 Napkin Per Minute can make below tall-fold dispenser napkins

MORCON MOR20500DN - Tall-fold Embossed Napkins, 1-ply, White, 13 1/2 X 7

DIXIE BASIC HyNap® Tall Fold Dispenser Napkin, Plain White, 3-1/2 in x 6-1/2 in, Plain,

Choice White Tall-Fold 6" x 13" Dispenser Napkin

Scott 98710 Tall-Fold Dispenser Napkins, 1-Ply

Choice Kraft Natural Tall-Fold Dispenser Napkin 6" x 13"

Kimberly-Clark Scott Tall Fold Napkin, 13-1/2" Length x 7" Width

Tork Universal Tall Fold Dispenser Napkins, 1-Ply, 6 x 13.5, Natural



Advantage:

1 Germany design Paper Napkin Converting Machine.

2 High speed up to 5200 sheet/min, depends on multi napkin sizes.

3 the napkin production machinery is with 4 lines.

4 Folding styles: 1/4 1/6 1/8 1/12 fold, tall fold etc.

5 this Paper Napkin Converting Machine can make multi sizes 33x33cm & 33x16.5cm or customized.

6 Copy Germany design.

7 Super high speed / fastest in CHINA.

8 Heavy duty Paper Napkin Converting Machine.


Technical parameters as below

Napkin open size(mm) 200*200 240*240 250*250 300*300 330*330 tallfold napkin size 6" x 13" Other sizes to be customized
Napkin folded size (mm) 100*100 120*120 125*125 150*150 165*165 6.5" x 3
Jumbo roll width (mm) 1200 1440 1500 1800 1980 2400
Raw material Tissue paper and nonwoven airlaid and MG paper.
Output format

4 lanes 4 folds paper napkin machine

eight lines napkin machine

Machine speed Up to 5200 sheet/min, depends on paper napkin sizes.
Folding type

1/4 quarter fold KFC McDonald's Napkin

1/2 no fold / flat sheet/ single sheet.

1/6 tall fold dispenser fold Starbucks Napkin

4 folds paper napkin

1/8

1/12

V fold

Single flat sheet

or custom folding style.

Mechanical fold with bandsaw cutting

Embossing system

Full embossing or side edge border embossing.

penumatic control Steel to paper embossing (wool coated)

hydraulic control steel to rubber embossing

mechanical type steel to felt embossing.

steel to steel embossing

steel to mirror embossing (lastest technology)

Printing system 2 to 4 colors flexo printing.
Control

PLC,

Frequency conversion speed control

Automatic paper break detection

JOG

Emergency stop

Alarm system.

Power supply

About 7.5kg

3phase 380v 50hz or 3phase 220v 60hz or 480v

Machine weight 6000kg
Machine size 6*1.5*2.4m



A. back stand
1. Parent roll specification: 16-75g/m2 1-ply; 13-18gsm 2 plies tissue paper and nonwoven airlaid and MG paper. Or customized.
2. Parent roll size: ≤1500mm x1200mm.( 300mm*4lanes = 1200mm.) Diameter x Width
5. The parent roll is driven by an independent motor. NOT belts.
6. Copy Europe design Heavy duty design Thickened steel wallboard structure to reduce vibration while running high speed running.



D. Folding Section
1. Napkin sizes. Other sizes available. Please contact us.
Open size:   300x300mm   if tall fold dispenser napkin size open  6" x 13". (tall fold dispenser napkin folded size 6.5" x 3")
Folded size: 150x150mm
Cutoff size: about 300mm. or 330cm, 13".
2. Folder type: mechanical folding type, 1/4 quarter fold type, 1/6 tall fold dispenser fold.
4. The gap and distance between two folding rollers can be adjustable to fit for different paper gsm and thickness.
5. With 3 sets of slitting blades.
6. With double decks four lines output delivery. (Double decks available)
7. Capacity: About 400m/min, about 1200sheet/min/lane * 4lanes = 5000 sheet/min total, depending on paper quality, gsm and workers operation.
8. With automatic counting unit, every count 1 - 9999 sheet/count. With tissue pop up every count.
12. Can be designed to make both 1/4 quarterfold napkins and 1/6 tall-fold napkins.(Need customized and both 1/4 and 1/6 must have same cutoff size.)
13. Driven by an independent motor. NOT chains or belts.


C. Embossing Section
1. With 1 set of steel to paper embossing unit. (Embossing pattern provided by client or recommend by us)
2. Embossing tension is adjustable.
6. Driven by an independent motor. NOT Chains or belts.

5. With optical sensors to detect paper break, if paper breaks, machine will stop automatically.
6. Driven by an independent motor. NOT Chains or belts.
7. Thickened steel wallboard structure to reduce vibration while running high speed running..



D. Napkin Printing Unit (advanced design.)

1. With 4 colors flexo-graphic printer section. (High quality printing)

2. With ceramic anilox printing rollers.

4. Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.

5. Both sides of Anilox roll & Rubber roll with buffer for anti-spill cover to stop the ink spilling out of the ink tank and spraying somewhere.

7. With printing ink reservoir for reserve dropping ink and avoid ink dropping on machine or place to keep environment clean.

8. Casting iron forming foundation. Floor-standing thickened Wallboard structure (complete plate) to ensure high speed stable running no vibration.


E. Control system
1. Controlled by Inverter.
2. With JOG function, easy for threading the paper and maintenance. With 2 JOG buttons on the control box (which is near the folding head) and near the parent roll.
3. With emergency stop function, better for safety, you can stop the machine any time when there is emergency.
4. With alarm system-----alarm that goes off when the machine gets started.
5. With 2 locations to adjust the paper tension, one is near the parent roll, the other is on the top of the folding head.
6. With auto grease fittings system. Automatically feed the grease to the main bearings to prolong the life span of the bearings.
7. With auto sensors for detecting paper breaks or used up. Machine will automatically stop if paper breaks or used up.


Products made by this Germany Design Super High Speed Paper Napkin Converting Machine 4 Lines 5000 Napkin Per Minute:



paper napkin converting machine





FAQ

Q: Are you trading company or manufacturer

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
