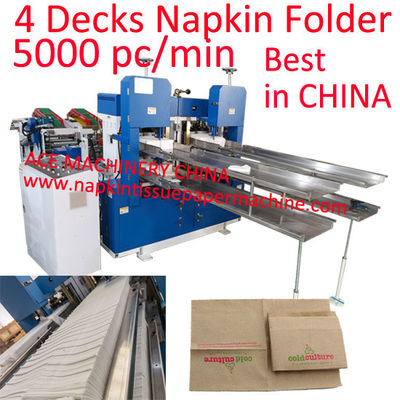

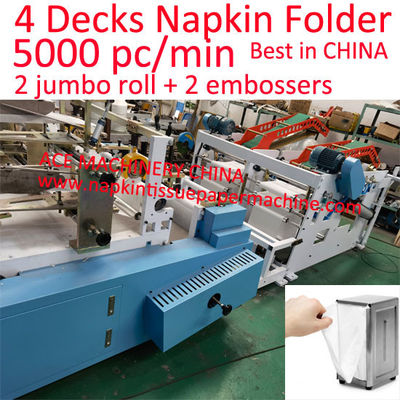

Napkin Folding Machine For 1 Ply Tall-Fold Dispenser Napkin MORCON

Napkin Folding Machine For 1 Ply Tall-Fold Dispenser Napkin MORCON
Napkin Folding Machine For 1 Ply Tall-Fold Dispenser Napkin MORCON
video play

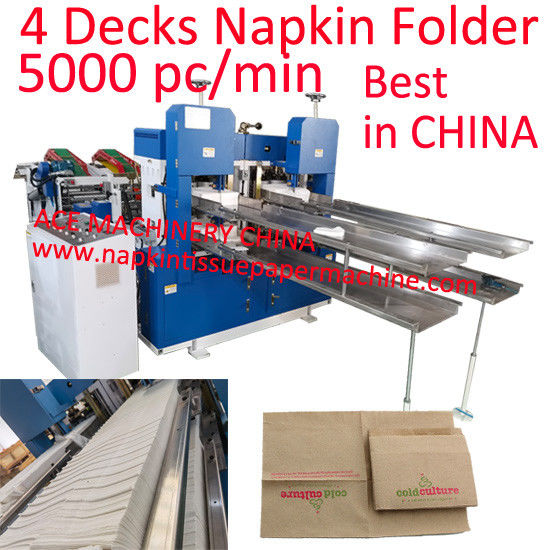

Large Image :  Napkin Folding Machine For 1 Ply Tall-Fold Dispenser Napkin MORCON

Product Details:
Place of Origin: China
Brand Name: ACE
Certification: CE
Model Number: ACE-TNM-2L-4H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Name: Best Napkin Folding Machine In CHINA Speed: 5200 Sheet/min
Made By: CHINA Best Napkin Folding Machine Manufacturer Folding Style: Both 1/4 Fold & 1/6 Tall-fold
Finished Napkin: Two-ply Or 1-ply Tall-fold Dispenser Napkin Output: 4 Decks / 4 Outs
High Light:

1 Ply Napkin Folding Machine

,

Tall Fold Dispenser Napkin Folding Machine

,

Tall Fold Dispenser Tissue Folding Machine

High Speed Paper Napkin Folder Machine For 1/6 Tall-Fold Tork Table Dispenser Napkin



Application

This ACE-TNM-2L-4H Best Napkin Folding Machine For 1 Ply Tall-Fold Dispenser Napkin MORCON In China is mainly used to automatically fold, emboss, printing, cutting, packing and counting z fold paper napkin, 1/4 fold table napkins, cocktail napkin, hotel napkins, restaurant napkins, beverage napkin, lunchen napkin, 1/6 fold tallfold dispenser napkin, wallet tissue, custom airlaid nonwoven napkins and MG paper napkins etc.





This Best Napkin Folding Machine For 1 Ply Tall-Fold Dispenser Napkin MORCON In China can make below tall-fold dispenser napkins

MORCON MOR20500DN - Tall-fold Embossed Napkins, 1-ply, White, 13 1/2 X 7

DIXIE BASIC HyNap® Tall Fold Dispenser Napkin, Plain White, 3-1/2 in x 6-1/2 in, Plain,

Choice White Tall-Fold 6" x 13" Dispenser Napkin

Cascades PRO Select™ Tall Fold Napkin -6" x 13.25", White

Cascades PRO Select™ Tall Fold Napkin -6" x 13.25", two ply.





Advantage:

1 Taiwan design napkin machinery

2 High speed up to 5200 sheet/min, depends on multi napkin sizes.

3 the napkin machinery is with 4 decks output.

4 Fastest in China mainland now.

5 paper napkin machine can make multi sizes 33x33cm & 33x16.5cm or customized.


Technical parameters as below

Napkin open size(mm) 200*200 240*240 250*250 300*300 330*330 400*400 Other sizes to be customized
Napkin folded size (mm) 100*100 120*120 125*125 150*150 165*165 200*200
Jumbo roll width (mm) 1200 1440 1500 1800 1980 2400
Raw material Tissue paper and nonwoven airlaid and MG paper.
Output format

two decks (four dekcs) napkin machine

eight lines napkin machine

Machine speed Up to 5200 sheet/min, depends on multi napkin sizes.
Folding type

1/4 quarter fold

1/2 no fold / flat sheet/ single sheet.

1/6 tall fold dispenser fold

1/8

1/12

V fold

Single flat sheet

or custom folding style.

Mechanical fold with bandsaw cutting

Embossing system

Full embossing or side edge border embossing.

Steel to paper(wool coated)

steel to rubber

steel to steel

steel to mirror

Printing system 2 to 4 colors printing.
Control

PLC,

Frequency conversion speed control

Automatic paper break detection

JOG

Emergency stop

Alarm system.

Power supply

About 7.5kg

3phase 380v 50hz or 3phase 220v 60hz or 480v

Machine weight 6000kg
Machine size 6*1.5*2.4m



A. back stand
1. Parent roll specification: 16-75g/m2 1-ply; 13-18gsm 2 plies tissue paper and nonwoven airlaid and MG paper. Or customized.
2. Parent roll size: ≤1500mm x1800mm.( 300mm*6lanes = 1800mm.) Diameter x Width
4. Unwind belt for the parent roll to be on top of the roll instead of the bottom
5. The parent roll is driven by an independent motor. NOT belts.
6. Thickened steel wallboard structure to reduce vibration while running high speed running.



D. Folding Section
1. Napkin sizes. Other sizes available. Please contact us.
Open size:   300x300mm
Folded size: 150x150mm
Cutoff size: about 300mm.
2. Folder type: mechanical folding type, 1/4 quarter fold type.
3. Synchronizer for feeding paper
4. The gap and distance between two folding rollers can be adjustable to fit for different paper gsm and thickness.
5. With 3 sets of slitting blades.
6. With double decks four lines output delivery. (Double decks available)
7. Capacity: About 300m/min, about 1000sheet/min/lane * 4lanes = 4000 sheet/min total, depending on paper quality, gsm and workers operation.
8. With automatic counting unit, every count 1 - 99999 sheet/count. With tissue pop up every count.
12. Can be designed to make both 1/4 quarterfold napkins and 1/6 tall-fold napkins.(Need customized and both 1/4 and 1/6 must have same cutoff size.)
13. Driven by an independent motor. NOT chains or belts.


C. Embossing Section
1. With 1 set of steel to paper embossing unit. (Embossing pattern provided by client or recommend by us)
2. Embossing tension is adjustable.
6. Driven by an independent motor. NOT Chains or belts.
7. Thickened steel wallboard structure to reduce vibration while running high speed running..



D. Important parts:

1. Taiwan DELTA Inverter. Much easier for operation. (Other companies use only buttons and even all inferior buttons, easy to damage. And they use Elctromagnetic speed control, easy to get broken.)

2. Japan Omron sensors for detecting paper break. (Other companies use inferior brands)

8. Stronger structure and better quality parts than others. Complete thickened wallboard steel plate structure to ensure high speed running, no vibration.



Products made by this High Speed Paper Napkin Folder Machine For 1/6 Tall-Fold Tork Table Dispenser Napkin:



Best Napkin Folding Machine
