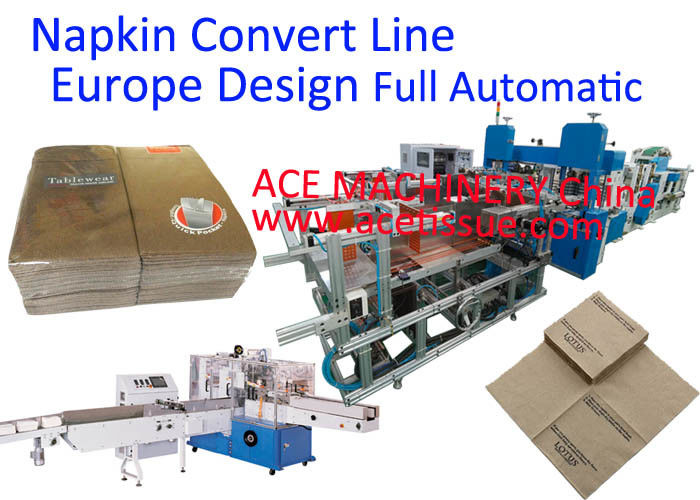

Fully Automatic Non Woven Napkin Machine Production Line With Packaging Machine

Fully Automatic Non Woven Napkin Machine Production Line With Packaging Machine
Fully Automatic Non Woven Napkin Machine Production Line With Packaging Machine
video play

Large Image :  Fully Automatic Non Woven Napkin Machine Production Line With Packaging Machine

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-TNL-2H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Machine Name: Non Woven Napkin Machine Packing: Auto Transfer To Non Woven Napkin Packing Machine
Fold Type: Tall Fold, Quarterfold 1/4 Speed: 350m/min
Embossing: Point To Felt Embossing Print: Optional
High Light:

CPP Non Woven Napkin Machine

,

10KW Non Woven Napkin Machine

,

AC380V Tissue Paper Production Line

Fully Automatic Non Woven Napkin Machine Production Line With Packaging Machine

Introduction of Fully Automatic Non Woven Napkin Machine Production Line With Packaging Machine.
This ACE-TNL-2H Fully Automatic Non Woven Napkin Machine Production Line With Packaging Machine is a fully automatic non woven air laid paper napkin production line consists of high speed double lanes non woven napkin folder machine, double lane non woven napkin auto transfer units and fully automatic non woven napkin packaging machine.



Main Features

1. Count automatically and output in order

2. Adopting screw turning knife to cut and vacuum absorption to fold.

3. Adopting step less adjusting speed to roll to fix different tension of raw paper.

4. electricty control, easy to operate.

5. This equipment can have embossing unit.



Advantages

  1. Full automatic.
  2. High Speed with 2 lanes serviette folder.
  3. With 2 lanes auto transfer.
  4. Multi functions. Make both non woven napkin and paper napkins.
  5. Best serviette paper napkin machine in China


This fully automatic napkin machine manufacturer can produce below products:
Natural kraft Choice tall-fold dispenser napkin.
Kimberly Clark or Georgia-Pacific Dixie Tall-Fold 1-Ply Dispenser Napkin Refill (Previously HyNap) .

Single ply embossed virgirn pulp paper serviette
Double ply printed recycled kraft paper serviette

White plain non woven napkins.

ACE-TNL-2H Fully Automatic Napkin Machinery For Making Luncheon Napkin 13"X13" Single Ply.



ACE-TNL-2H Two Lanes High Speed Fully Automatic Non Woven Machine with Auto Transfer to Packing Machine

1. applicable material

1)14-18 g/㎡ 2-ply wooden pulp tissue paper or 18-20 g/㎡ 1-ply wooden pulp paper(with wet strength agent).

(2) Jumbo roll size: φ1500×600㎜;

(3) Jumbo roll inner core size: φ76㎜;



2. Unwinder section

(1) With 1 jumbo roll unwinder stand.

Wide flat belt unwind.

Pneumatic control.

(2) Auto web tension control system.

(3) Automatic loading the jumbo roll pneumatically.

3, Auto web guide system

(1) Electrical type auto web guide ratification system to keep the paper running straightly always.



4. Embossing Unit

With 1 set of steel to paper (wool coated) embossing unit(embossing pattern provided by the customer.) Mechanical press.

The gap between 2 embossing rollers can be adjusted to adapt to tissue papers with different quality and gsm."

5. Printing Unit

(1)With 1- 4 colors flexo printing units.

(2)The ink system is with rubber to ceramic anilox roller transfer the ink.



8. control system

(1) main motor controlled by frequency conversion inverter.

(2) auto counting unit (1-999 sheet/count or stack)

(3) Auto stop if paper breaks.

(4) Emergency stop function.

(6) Installed power: AC380V 50HZ 10KW; or customized.

(7) Air pressure required: 0.5Mpa

ACE-AT Auto Transfer / Auto stack format unit for table napkin machine.

  1. Pneumatic.
  2. The stack are pushed to the conveyor of the automatic napkin packing machine by cylinder.
  3. Optical sensors detection and auto stop if any faults happen.
  4. Transfer speed /stack speed: about 20 stack/min each lane * 2 lanes.


ACE-FSP Fully Automatic Single Bag table napkin Packing Machine
Technical parameters.

1. Packing format: Single bag packing.
2. Packing speed: about 50-120 packs/min.
3. Tissue packing size: L100-200mm Other sizes to be specified.
W100-140mm
H40-100mm.
4. The packing size can be changed from one fixed size to another by changing the packing mould within specification above. Extra mould is optional.
5. Various packing size can be changed quickly among different tissue sizes(need different moulds).
6. Sealing type: hot sealing and envelope type.
7. Packing material: CPP with thickness 40-45 microns.
PE also workable. Other requirements to be specified.
8. Packing film size:MAXφ300mm,width 400-600mm,thickness 40 - 45 microns.
The packing machine can be connected to the log saw to form an automatic production line, saving much laboring cost and increase the production efficiency.
13. Magic eye to check and control the material and packing film system;
14. Equipped with automatic coding system to automatically print the manufacture dates on each package of the tissues.
15. Equipped with perforating system to make perforated dotted lines on each package of tissues so that the customers can easily open the bag and take the tissues.
16. Power: 5.4Kw. Heating power:3.6Kw. 3phase AC380V 50HZ.
17. Working noise: ≤78db
18. air pressure: 0.5Mpa(buyer supplier);
19. Machine size: L3680 x W5885 x H1925mm
20. Machine weight: 3500kg

Technical parameters:

table Napkin sizes

180x180mm (folded 90x90mm)
240x240mm (folded 120x120mm)
250x250mm (folded 125x125mm)
300x300mm (folded 150x150mm)
330x330mm (folded 165x165mm)
400x400mm (folded 200x200mm)
430x430mm (folded 215x215mm)

table napkin Folding type

Mechanical folding
1/4 quarterfold
1/6 tallfold
1/8 fold
1/12 fold

Automatic Fully automatic transfer the table napkin from the table napkin machine to the table napkin packing machine, A to Z no need worker
Machine size About 6*1.5*2m
Machine weight About 4000kg


Samples made by this Table Napkin Machine Full Automatic Line For Paper Napkin 30x30cm:
non woven napkin machine
Components’ brands

PLC Japan Mitsubishi
Inverter Japan Mitsubishi
Touch screen Japan Mitsubishi
Bearings SKF
Steel America
Technology Taiwan design
Folding blades Germany steel
Bandsaw blades Japan imported steel



FAQ
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
