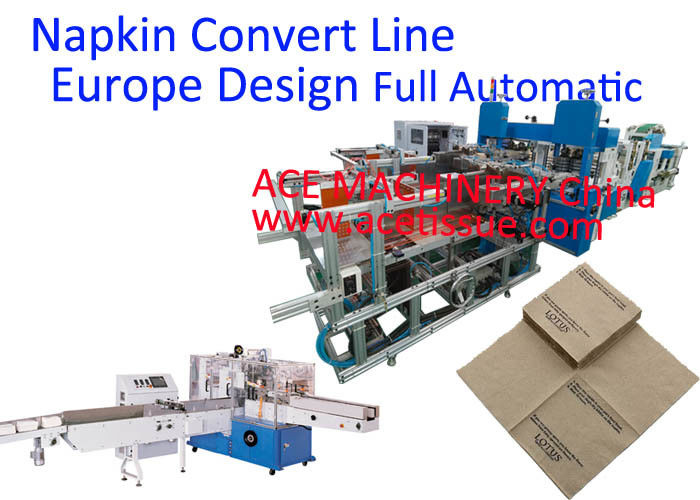

Serviette Paper Making Machine With Auto Transfer To Packaging Machine

Serviette Paper Making Machine With Auto Transfer To Packaging Machine
Serviette Paper Making Machine With Auto Transfer To Packaging Machine
video play

Large Image :  Serviette Paper Making Machine With Auto Transfer To Packaging Machine

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-TNL-2H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Machine Name: Serviette Paper Making Machine Automation: Auto Transfer
Fold Type: Tall Fold, Quarterfold 1/4 Speed: 350m/min
Embossing: Point To Point Embossing Anilox: Ceramic Anilox Roller
High Light:

Quarterfold 1/4 Paper Making Machine

,

Serviette Paper Making Machine

,

Ceramic Anilox Roller Napkin Production Line

fully auto serviette paper making machine with auto transfer to packaging machine

Introduction of fully automatic serviette paper making machine with auto transfer to packaging machine.
This ACE-TNL-2H Fully Automatic Napkin Machinery For Making Luncheon Napkin 13"X13" Single Ply is a fully automatic paper napkin production line consists of high speed double lanes luncheon napkin making machine, double lane napkin auto transfer units and fully automatic luncheon napkin packaging machine for packing luchneon Paper Napkins.



Main Features

1. Count automatically and output in order

2. Adopting screw turning knife to cut and vacuum absorption to fold.

3. Adopting step less adjusting speed to roll to fix different tension of raw paper.

4. electricty control, easy to operate.

5. This equipment can have embossing unit.

6. Wide range of production width for selection.

7. The machine can equipped with PLC according to requirement.

8. This machine can equip with single color and double color printing unit, the embossing pattern have very vivid designs and beautiful colors.


Advantages

  1. Full automatic.
  2. High Speed with 2 lanes serviette folder.
  3. With 2 lanes auto transfer.
  4. Multi serviette paper napkin sizes.
  5. Best serviette paper napkin machine in China


This fully automatic napkin machine manufacturer can produce below products:
Linen-Feel Luncheon Paper Napkins or Disposable Lunch Napkins size 13” x 13” unfolded. 6.5” x 6.5” folded.
2-ply High quality Vanity Fair Entertain Paper Napkins
single ply beverage napkin or table napkin.
printed wedding paper napkin,
coffee paper napkin etc.
Natural kraft Choice tall-fold dispenser napkin.
Kimberly Clark or Georgia-Pacific Dixie Tall-Fold 1-Ply Dispenser Napkin Refill (Previously HyNap) .

Single ply embossed virgirn pulp paper serviette
Double ply printed recycled kraft paper serviette

ACE-TNL-2H Fully Automatic Napkin Machinery For Making Luncheon Napkin 13"X13" Single Ply.
2 lanes luncheon Napkin Machinery

Technical parameter:
A. back stand
1. Parent roll specification: 18-75g/m2 1-ply; 13-18gsm 2 plies tissue paper. Or customized.
2. Parent roll size: ≤Φ1100 x 600mm (300mm * 2lanes = 600mm). Diameter x Width
3. Core inner diameter: 76mm





8. control system

(1) main motor controlled by frequency conversion inverter.

(2) auto counting unit (1-999 sheet/count or stack)

(3) Auto stop if paper breaks.

(4) Emergency stop function.

(6) Installed power: AC380V 50HZ 10KW; or customized.

(7) Air pressure required: 0.5Mpa

ACE-AT Auto Transfer / Auto stack format unit for table napkin machine.

  1. Pneumatic.
  2. The stack are pushed to the conveyor of the automatic napkin packing machine by cylinder.
  3. Optical sensors detection and auto stop if any faults happen.
  4. Transfer speed /stack speed: about 20 stack/min each lane * 2 lanes.


ACE-FSP Fully Automatic Single Bag table napkin Packing Machine
Technical parameters.

1. Packing format: Single bag packing.
2. Packing speed: about 50-120 packs/min.
3. Tissue packing size: L100-200mm Other sizes to be specified.
W100-140mm
H40-100mm.
4. The packing size can be changed from one fixed size to another by changing the packing mould within specification above. Extra mould is optional.
5. Various packing size can be changed quickly among different tissue sizes(need different moulds).
6. Sealing type: hot sealing and envelope type.
7. Packing material: CPP with thickness 40-45 microns.
PE also workable. Other requirements to be specified.
8. Packing film size:MAXφ300mm,width 400-600mm,thickness 40 - 45 microns.
The packing machine can be connected to the log saw to form an automatic production line, saving much laboring cost and increase the production efficiency.
13. Magic eye to check and control the material and packing film system;
14. Equipped with automatic coding system to automatically print the manufacture dates on each package of the tissues.
15. Equipped with perforating system to make perforated dotted lines on each package of tissues so that the customers can easily open the bag and take the tissues.
16. Power: 5.4Kw. Heating power:3.6Kw. 3phase AC380V 50HZ.
17. Working noise: ≤78db
18. air pressure: 0.5Mpa(buyer supplier);
19. Machine size: L3680 x W5885 x H1925mm
20. Machine weight: 3500kg

Technical parameters:

table Napkin sizes

180x180mm (folded 90x90mm)
240x240mm (folded 120x120mm)
250x250mm (folded 125x125mm)
300x300mm (folded 150x150mm)
330x330mm (folded 165x165mm)
400x400mm (folded 200x200mm)
430x430mm (folded 215x215mm)

table napkin Folding type

Mechanical folding
1/4 quarterfold
1/6 tallfold
1/8 fold
1/12 fold

Automatic Fully automatic transfer the table napkin from the table napkin machine to the table napkin packing machine, A to Z no need worker
Machine size About 6*1.5*2m
Machine weight About 4000kg

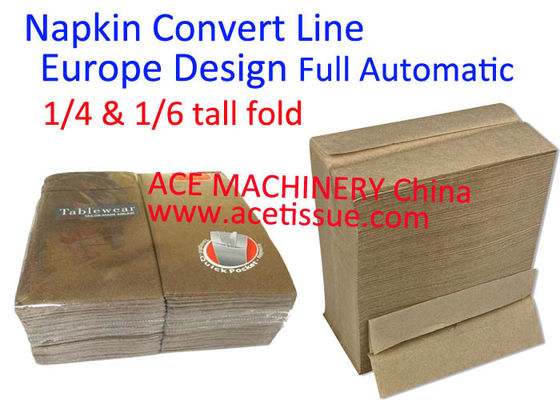

Samples made by this Table Napkin Machine Full Automatic Line For Paper Napkin 30x30cm:
serviette paper making machine
Components’ brands

PLC Japan Mitsubishi
Inverter Japan Mitsubishi
Touch screen Japan Mitsubishi
Bearings SKF
Steel America
Technology Taiwan design
Folding blades Germany steel
Bandsaw blades Japan imported steel



FAQ
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
