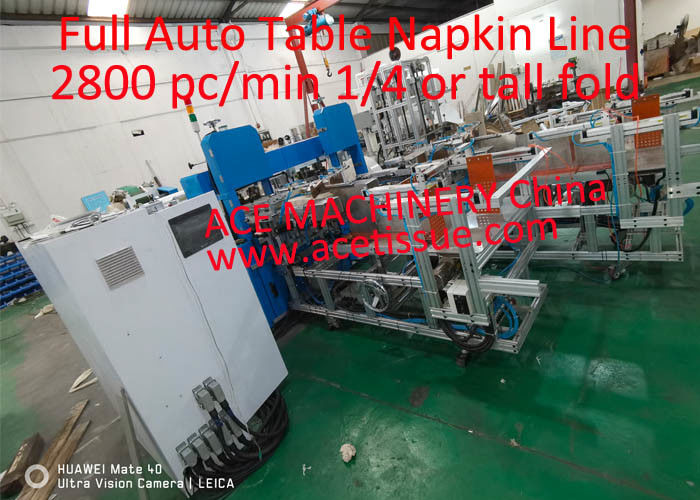

Fully Automatic Napkin Production Machine Line With Packaging

Fully Automatic Napkin Production Machine Line With Packaging
Fully Automatic Napkin Production Machine Line With Packaging
video play

Large Image :  Fully Automatic Napkin Production Machine Line With Packaging

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-TNL-2H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Machine Name: Automatic Napkin Production Machine Automation: Fully Automatic Transfer
Fold Type: 1/4 1/6 1/8 Customized Speed: Up To 2800 Sheet/min
Printing: 2 Colors Or Customized Embossing: Steel To Paper(wool Coated)
High Light:

1/6 Fold Napkin Production Machine


Embossing Napkin Production Machine


JOG Tissue Paper Machine

Fully Automatic Napkin Production Machine Line With Packaging

Introduction of Fully Automatic Napkin Production Machine Line With Packaging.

This ACE-TNL-2H Fully Automatic Napkin Production Machine Line With Packaging is a fully automatic paper napkin production line consists of high speed double lanes paper napkin production machine, double lane napkin auto transfer and fully automatic paper napkin packaging machine for single bag or double pack napkins packaging.

It can make tissue paper napkins at a super high speed 2800 sheet/min, the fastest and best paper napkin machine in China now. It is mainly used to automatically fold, emboss, print, cut and count 1/4, 1/8, 1/6, 1/12 fold table napkins, cocktail napkin, restaurant napkins, beverage napkin, luncheon napkin, 1/6 fold tall fold dispenser napkin, wallet tissue, nonwoven airlaid napkins and MG paper napkins etc. It adopts mechanical folding style with circular bandsaw blade cutting. The mainly function of this machine is to manufacture easy-to-take one by one plain, embossed and LOGO printed and laminated dinner tissue paper napkins. It is an ideal equipment to manufacture away-from-home customized color printing and laminated tissue paper napkin products. It is a very good alternative of Taiwan Fully Automatic Napkin Production Machine Line With Packaging.


Quick details

  1. Full automatic no worker
  2. Speed up to 2800 sheet/min
  3. Paper napkin folder with 2 lanes auto transfer.
  4. Taiwan technology


ACE-TNL-2H Fully Automatic Napkin Production Machine Line With Packaging.

2 lanes Paper Napkin Production Machine


Technical parameter:

A. back stand

1. Parent roll specification: 18-75g/m2 1-ply; 13-18gsm 2 plies tissue paper. Or customized.

2. Parent roll size: ≤Φ1100 x 600mm (300mm * 2lanes = 600mm). Diameter x Width

3. Core inner diameter: 76mm


B. Feeding Section

1. One feeding paper frame;

2. Pneumatic cylinder control

3. Stepless adjusting speed to control web-tension of paper.

4. Auto adjustment setting

5. With pneumatic system to automatically load jumbo rolls.


C. Embossing Section

1. One set of steel to paper embossing unit. (Embossing pattern provided by client or recommend by us)

2. Mechanical press type.


D. Printing Section (advanced design.)

1. With 2 colors flexo-graphic printer section.

2. Printing unit with driven by timing belts to make printing more precise.

3. Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.

4. The printing plate roller can be adjustable or disassembled from the printing unit, much easier for the operator to attach the printing rubber plates or clean the roller.



F. Control system

1. With JOG function, easy for threading the paper and maintenance.

2. With emergency stop function, better for safety, you can stop the machine any time when there is emergency.

3. With auto sensors for detecting paper breaks or used up. Machine will automatically stop if paper breaks or used up.

4. Famous brand motor.

5. Power: 2.75~4.5kw (3-phase AC380V 50Hz or customized)

6. Pressure: 0.5MPa.

7. Machine size: 5x1x1.7(M)

8. Weight: about 4500 kg


ACE-AT Auto Transfer / Auto stack format unit.

  1. Pneumatic.
  2. The stack are pushed to the conveyor of the automatic napkin packing machine by cylinder.
  3. Optical sensors detection and auto stop if any faults happen.
  4. Transfer speed /stack speed: about 20 stack/min each lane * 2 lanes.


ACE-FSP Fully Automatic Single Bag Paper Packaging Machine

Technical parameters.


1. Packing format: Single bag packing.

2. Packing speed: about 50-120 packs/min.

3. Tissue packing size: L100-200mm Other sizes to be specified.



4. The packing size can be changed from one fixed size to another by changing the packing mould within specification above. Extra mould is optional.

5. Various packing size can be changed quickly among different tissue sizes(need different moulds).

6. Sealing type: hot sealing and envelope type.

7. Packing material: CPP with thickness 40-45 microns.

PE also workable. Other requirements to be specified.

8. Packing film size:MAXφ300mm,width 400-600mm,thickness 40 - 45 microns.

9. Control:

PLC programmed control, Siemens or Mitsubishi

Inverter for variable frequency speed control,

Touch screen for operation

Servo motor control.

The packing machine can be connected to the log saw to form an automatic production line, saving much laboring cost and increase the production efficiency.

10. The whole machine adopts stepless frequency conversion controlling, touching screen and PLC.

11. Main motor Controlled by timing Frequency conversion; With touch screen for data setting.

12. Equipped with automatic lubrication system. You can set the machine lubrication interval and lubrication time. For example, you can set it to lubricate the machine for about 1s every 30 minutes.

13. Magic eye to check and control the material and packing film system;

14. Equipped with automatic coding system to automatically print the manufacture dates on each package of the tissues.

15. Equipped with perforating system to make perforated dotted lines on each package of tissues so that the customers can easily open the bag and take the tissues.

16. Power: 5.4Kw. Heating power:3.6Kw. 3phase AC380V 50HZ.

17. Working noise: ≤78db

18. air pressure: 0.5Mpa(buyer supplier);

19. Machine size: L3680 x W5885 x H1925mm

20. Machine weight: 3500kg


Samples made by this Fully Automatic Napkin Production Machine Line With Packaging:

automatic napkin production machine


Components’ brands

PLC Japan Mitsubishi
Inverter Japan Mitsubishi
Touch screen Japan Mitsubishi
Bearings SKF
Steel America
Technology Taiwan design
Folding blades Germany steel
Bandsaw blades Japan imported steel
