PLC HMI Wallet Tissue Production Line With Auto Transfer To Packing Machine From A To Z

PLC HMI Wallet Tissue Production Line With Auto Transfer To Packing Machine From A To Z
PLC HMI Wallet Tissue Production Line With Auto Transfer To Packing Machine From A To Z
video play

Large Image :  PLC HMI Wallet Tissue Production Line With Auto Transfer To Packing Machine From A To Z

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-WTL
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Machine Type: Fully Automatic Wallet Tissue Machine Automation: Full Automatic No Need Worker
Products: Hanky Paper Packing: Full Automatic
Speed: 100 Bag/min Transfer: Auto Transfer
High Light:

PLC Wallet Tissue Production Line

,

HMI Wallet Tissue Production Line

,

1/6 Fold Tissue Packing Machine

Fully Automatic Wallet Tissue Production Line with auto transfer to packing Machine A to Z



Description

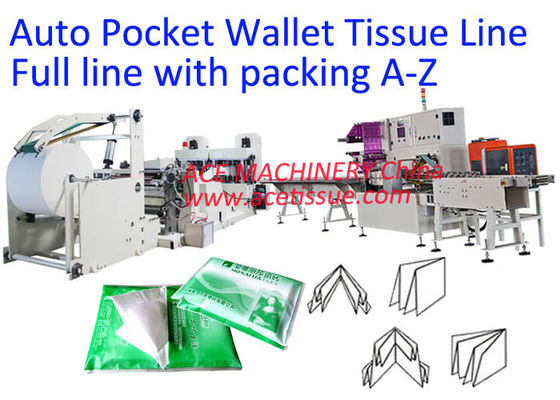

This ACE-WTL Fully Wallet Tissue Production Line is mainly for the production of wallet tissue, pocket tissue, paper handkerchief, mini hanky paper, travel tissue etc. The whole production line consists of automatic wallet tissue Machine with Auto Transfer, auto transfer and automatic wallet tissue packing machine. It is a complete full automatic wallet tissue production line from A to Z no need worker, It is a very good alternative of Taiwan automatic wallet tissue machine.



Quick details

1 Save labor costs. It can save up to 15 workers for the whole line.
2 Fuly automatic with transfer. No need worker to hand take.
3 Fully automatic A to Z no need worker.
4 High speed up to 120 pack/min.



Fully Automatic Wallet Tissue Production Line With Auto Transfer To Packing Machine From A - Z

Jumbo roll size Jumbo roll size: ≤210mm x Φ1200mm;(Other size available.)
Wallet tissue open size 210x210mm
Wallet tissue folded size 90*105mm
Folding Type

N fold

1/6 fold.

speed About 1000 sheet/min
Embossing unit

Steel to rubber embossing

steel to mirror embossing

Steel to steel embossing

Printing unit optional

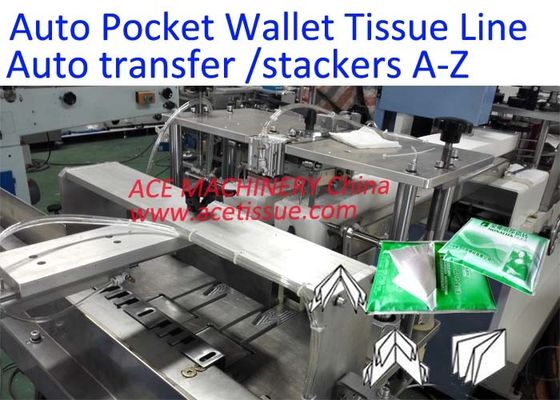

Wallet tissue stacker Auto transfer to the wallet tissue packing machine

Fully Automatic wallet tissue Packing Machine
Packing format

Pocket wallet tissue

Wallet type(can open)

Pocket type

Packing speed About 60 - 120 pack/min depends
automation

Fully automatic

PLC HMI servo motor control

Packing material Plastic film roll.





Machine features of Fully Automatic Wallet Tissue Production Line With Auto Transfer To Packing Machine From A - Z.

Product Description
Model:GM-083P

Packaging speed:≥120 bags/min,max at 200 bags/min

yield:≥98%

Working efficiency:≥90%

Packaging film:PE,POPP complex film

Packaging dimension:spread pouch L(160mm-175mm) * W(100mm-130mm)

one side double layer tissue:3-6 pcs,triple layer tissue:3-5pcs

Three size:L7.5m * W 1.1m * H1.8m

DW:about 2000KG



Brands of Components used on this Fully Automatic Wallet Tissue Production Line With Auto Transfer To Packing Machine From A - Z.

PLC SIEMENS
Inverter SIEMENS
Touch screen SIEMENS
Servo motor INVT
Servo drive INVT
Bearings NSK SKF
Electrical parts Schneider
Pneumatic parts Airtac
Sensor Sick



FAQ

Q: Are you trading company or manufacturer

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.



Video of this Fully Automatic Wallet Tissue Production Line With Auto Transfer To Packing Machine From A To Z:



Finished products of this Fully Automatic Wallet Tissue Production Line With Auto Transfer To Packing Machine From A - Z:

full automatic wallet tissue machine

automatic wallet tissue machine with packing

automatic wallet tissue making machine
