Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Speed Paper Towel Folding Machine With Auto Transfer And Packing Machine | Folding Way: | V Fold Multifold Paper Towels |
|---|---|---|---|
| Speed: | 6000 Sheet/min | Automation: | Full Automatic With Auto Transfer |
| Technology: | Paper Towel Folding Machine Auto Transfer | Voltage: | 380V/460V Customized |
| High Light: | 460V Paper Towel Folding Machine,CE Paper Towel Folding Machine,65g/m2 Automatic Towel Folder |
||
Description:

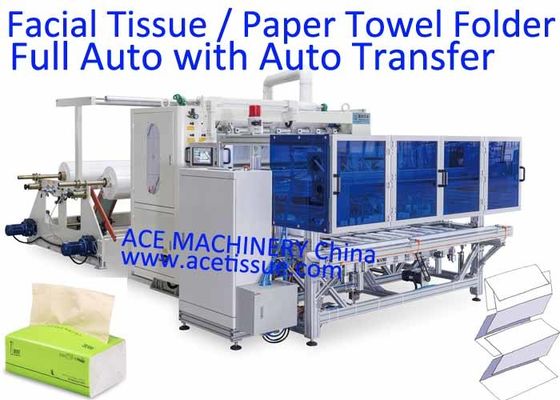

This High Speed Paper Towel Folding Machine With Auto Transfer And Packing Machine is used to manufacture interfold V fold paper towels, Z fold, N fold and multi fold paper towels. It can auto transfer the paper towel logs from the Z V fold paper towel interfolder to the automatic v fold paper towel cutting machine and then auto transfer the v fold paper towels to the automatic v fold paper towel packing machine. The whole machine for the production of sheet paper towels is fully automatic NO need worker to hand touch the tissue paper. This full automated v fold paper towel machine with auto transfer is the best v fold paper towel machine by China manufacturers now. It is with the same speed and quality as Taiwan v fold paper towel machine.
Advantage:
1 Machine for V fold Z fold N fold multi fold paper towels.
3 high speed up to 1000 sheet/min/lane
4 Full Automatic with auto transfer.
Quick details
1 Machine for production of Z V fold paper towels.
2 Fully Automatic with auto transfer
3 High Speed 1000 sheet/min.
7 Base Paper wide ranges:33-65g/m2 (single ply).
Technical parameters as below
| Model | ACE-V230-6L-AT |
| Function | High Speed Paper Towel Folding Machine With Auto Transfer And Packing Machine |
| Folding speed | 1000 piece/min/lane * 6lanes = 6000 sheet/min, depending on the paper quality and paper towel size. |
| Raw paper |
13-20g/m2 2-ply, 16-75g/m2 1-ply, wooden pulp paper or MG paper or nonwoven airlaid. Other sizes please specify. |
| Jumbo roll size | ≤ 1260mm x Φ1500mm (Depends on your napkin size, customized) |
| Folding type |
Inter folding Vacuum fold Z fold, N fold, multi fold, interfold, V fold |
| Point to point Lamination system |
a. With 2 complete sets of point to point lamination units. b. The whole design is copied Italy design. c. Heavy chrome coating roll d. Micro-adjustment of nips between the steel roll e. Anilox roll for glue applicant. f. Controlled by cylinders g. Each lamination unit controlled by an independent reducer. When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry. |
|
Control system automation |
High Speed Paper Towel Folding Machine With Auto Transfer And Packing Machine |
| Videos and photos available. | |
Below video of High Speed Paper Towel Folding Machine With Auto Transfer And Packing Machine for your reference:
Auto Transfer System for Interfold Paper Towel Folding Machine.
Log width
Log specification:13-50 g/m² 1 or 2ply facial tissue. Other requirements to be specified.
Log size: width ≤1500mm；
Control system
Log transfer speed: 12 log/min
Speed of production is controllable.
PLC control
Servo motor control.
Automatic sense every log by the ink mark of every count. (the counting on the interfolder is using ink mark every count. )
Speed can be synchronized with your interfolder machine. The auto system will automatically detect the counting ink mark of every count from your inter folder, and then auto synchronized with your interfolder machine. If your interfolder machine runs fast, it will transfer fast, if your interfolder runs slow, it will auto transfer slow.
Number of Sheets/pack- 50 -200 pieces.
Power: 3-phase AC380V 50HZ.
Air pressure: 0.6Mpa(buyer supplied)
Machine weight: about 2000kg.
Machine size: 3000x2000x1800mm.
D. Folding unit
a. Automatic left-right stagger counting unit
b. Independent Floor standing wallboard structure (thickened full steel plate support structure), to make sure the machine will NOT vibrate when running at high speed. Other companies adopt half steel frame for upper part and half steel part for lower parts, which is weak structure.
f. This fully automatic paper towel machine is with auto transfer system to auto transfer the paper towel logs to the automatic paper towel cutting machine.
H. Control system
a. Speed: about 1000 piece/min/lane x 6 lanes. Depends on paper quality, workers etc.
b. Speed of production is controllable.
c. Main motor control by inverter
d. Automatic left-right stagger counting system, each stack of 100 pieces, 150pieces etc.
e. Machine will automatically stop if paper break or paper jams.
f. Power: about 7.5KW for main motor 3-phase AC380V 50HZ or customized.
g. With Taiwan vacuum pump, about 18.5KW. (Taiwan brand)
h. Vacuum pump for adsorption (included in quotation.)
i. Air pressure: 0.5Mpa(buyer supplied)
j. Machine weight: 6000kg.
k. Machine size: about 6000x2000x2100mm.
FAQ
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Dongguan, China.You can fly to Shenehn or Guangzhou international airport directly. We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
Sample made by this High Speed Paper Towel Folding Machine With Auto Transfer And Packing Machine for reference:
