Full Automatic Paper Hand Towel Production Line With Auto Transfer To Packing

Full Automatic Paper Hand Towel Production Line With Auto Transfer To Packing
Full Automatic Paper Hand Towel Production Line With Auto Transfer To Packing
video play

Large Image :  Full Automatic Paper Hand Towel Production Line With Auto Transfer To Packing

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-N230-6L-AT
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Product Name: Full Automatic Paper Hand Towel Production Line With Auto Transfer To Packing Folding Way: Z Multifold
Speed: 6000 Sheet / Min Automation: Full Automatic With Auto Transfer
Lamination: Point To Point Lamination Voltage: 220V Or 380V
High Light:

6000 Sheet / Min Hand Towel Production Line

,

Hand Towel Production Line AC380V

,

CE Multifold Hand Towel Machine

Full Automatic Paper Hand Towel Production Line With Auto Transfer To Packing

Description:

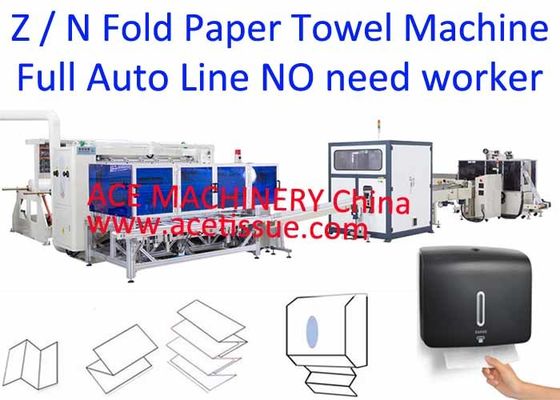

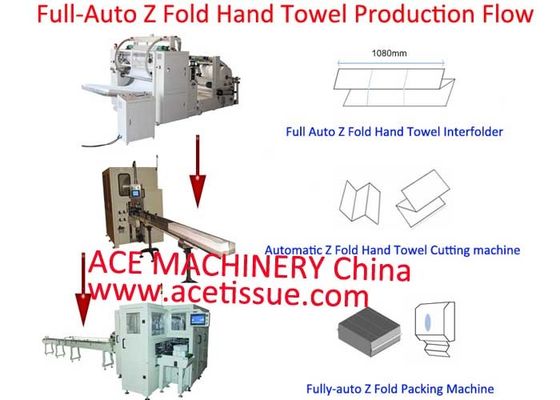

This Full Automatic Paper Hand Towel Production Line With Auto Transfer To Packing is used to manufacture V fold, Z fold, N fold and multi fold paper towels. It can auto transfer the paper towel logs from the Z fold paper towel interfolder to the automatic paper towel cutting machine and then auto transfer the paper towels to the automatic Z fold paper towel packing machine. The whole machine for the production of sheet paper towels is fully automatic NO need worker to hand touch the tissue paper. This full automated z fold paper towel machine with auto transfer is the best paper towel machine by China manufacturers now. It is with the same speed and quality as Taiwan paper towel machine.



Advantage:

1 Machine for Z fold N fold multi fold paper towels.

3 high speed up to 1000 sheet/min/lane

4 Full Automatic with auto transfer.

6 Fold stype: Z fold, Z fold and multi fold, V fold.



Quick details

1 Machine for production of Z fold paper towels.

2 Fully Automatic with auto transfer

3 High Speed 1000 sheet/min.

4 With point to point lamination.

5 With steel to steel embossing unit.

6 Use Taiwan vacuum pump.

7 Base Paper wide ranges:33-65g/m2 (single ply).




Technical parameters as below



Model ACE-N230-6L-AT
Function Full Automatic Paper Hand Towel Production Line With Auto Transfer To Packing
Folding speed 1000 piece/min/lane * 6lanes = 6000 sheet/min, depending on the paper quality and paper towel size.
Raw paper

13-20g/m2 2-ply, 16-75g/m2 1-ply, wooden pulp paper or MG paper or nonwoven airlaid.

Other sizes please specify.

Jumbo roll size ≤ 1260mm x Φ1500mm (Depends on your napkin size, customized)
Paper towel size

Open size: 210±2mm x 210mm Other size, please specify.

Folded size: 70±2mm x 210mm

Fixed cutoff cylinder size is 210m. Other size available, please specify. or Customized.

Folding type

Inter folding

Vacuum fold

Z fold, N fold, multi fold, interfold, V fold

Control system

automation

Fully automatic paper towel machine with auto transfer the paper towel logs to the automatic paper towel cutting machine.
Point to point Lamination system

a. With 2 complete sets of point to point lamination units.

b. The whole design is copied Italy design.

c. Heavy chrome coating roll

d. Micro-adjustment of nips between the steel roll

e. Anilox roll for glue applicant.

f. Controlled by cylinders

g. Each lamination unit controlled by an independent reducer. When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry.

Emergent stop Emergent stop unit to inspect any paper breaks, paper jams.
Power

7.5Kw for main motor

18.5KW for vacuum pump

(3-phase AC380V 50Hz or customized)

Machine size 6x2x2m
Weight 6T
Videos and photos available.





 Below video of Full Automatic Paper Hand Towel Production Line With Auto Transfer To Packing for your reference:





C. Paper feeding

a. With 1 back stands, controlled by pneumatic cylinders.

b. 2 sets of stepless-adjustment cone pulleys hand wheels to control jumbo roll web tension. Each jumbo roll is driven by an independent separate reduction motor, NOT chain and belts.

c. Synchronism paper feeding unit.

d. With hand wheel for each jumbo roll to adjust the jumbo roll to the left or right.

e. Pneumatic loading Jumbo roll;



D. Folding unit

a. Automatic left-right stagger counting unit

b. Independent Floor standing wallboard structure (thickened full steel plate support structure), to make sure the machine will NOT vibrate when running at high speed. Other companies adopt half steel frame for upper part and half steel part for lower parts, which is weak structure.

c. Add oil in manual

d. With stepless-adjustment hand wheels to control web tension.

e. With slitters.

f. This fully automatic paper towel machine is with auto transfer system to auto transfer the paper towel logs to the automatic paper towel cutting machine.





E. Full Embossing unit (New technology copied Italy)

a. With NEW Technology steel-to-rubber full embossing unit. (Embossing pattern provided by the buyer or recommended by us.)

b. Controlled by level-type pneumatic system copied Italy design. Most other companies’ machines embossing units are controlled by screws or direct-pressing cylinders which make it very difficult to control the web tension and the paper will stick to the rollers, if you are not experienced enough, it will be big problem for you. They mostly put the embossing units on the steel frame, when the machine is running at high speed; it will definitely vibrate very much.

c. Embossing tension is adjustable.(Micro adjustment.) so that the machine can work with papers with different quality and different gsm.

d. Floor standing wallboard structure (thickened full steel plate support structure); to make sure the machine will NOT vibrate when running at high speed. Other companies adopt half steel frame for upper part and half steel part for lower parts, which is weak structure.



D. Important parts:

1. Taiwan DELTA Inverter. Much easier for operation. (Other companies use only buttons and even all inferior buttons, easy to damage. And they use Elctromagnetic speed control, easy to get broken.)

2. Japan Omron sensors for detecting paper break. (Other companies use inferior brands)

3. Franch Schneider electrical parts like breakers, contactors and relays. (Other companies inferior brands made in China)

4. French Schneider buttons (Other companies use bad quality buttons)

5. The best China bearings, even Japan NSK bearings for the main aprts. (Other companies use cheap inferior brands bearings)

6. Taiwan Airtac cylinders. (Other companies use not that good brand)

7. The best brand motor made in China. (Other companies inferior brand)

8. Stronger structure and better quality parts than others. Complete thickened wallboard steel plate structure to ensure high speed running, no vibration.




FAQ
Q: Are you trading company or manufacturer
A: We are factory.


Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.


Q: Can you provide the installation videos?

A: Yes, we will provide.



Q: What's the production time?

A: Normally it is 40-60 working days, it depends on your customized requirements.



Q: How long is your warranty?

A: One year of the machine, wearing parts not included.



Q: Can your company do customized machine?

A: Yes we can. We have more than 20 years of experiences for customized designs and OEM service..



Q: How about your after-sales services?

A: We offer online instructions or onsite if necessary.

Q: Can you provide the installation videos?

A: Yes, we will provide.


Sample made by this Full Automatic Paper Hand Towel Production Line With Auto Transfer To Packing for reference:
