|Product:||Automatic Laminated Facial Tissue Machine||Other Name:||Facial Tissue Folding Machine|
|Embossing:||Steel To Rubber Embossing||Cutoff Size:||190/ 200 / 230mm|
|Lamination:||Point To Point Lamination||Capacity:||1200 Sheet/min/line|
V Fold Laminated Facial Tissue Machine,
10 Lines Laminated Facial Tissue Machine,
Laminated V Fold Hand Towel Machine

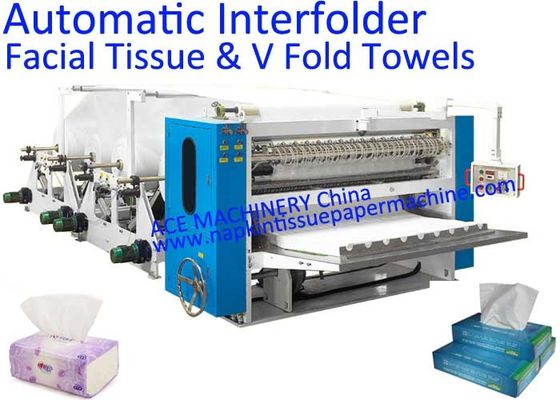

This ACE-V200-15L 10 Lanes High Speed Automatic Laminated Facial Tissue Machine, High Speed Laminated V Fold Hand Towel Machine In China is with both full embossing unit and edge embossing unit. It is mainly used to automatically fold, emboss, cut and count facial tissue papers, soft drawing nylon pack facial tissue paper, box-drawing facial tissue papers, pop up tissue paper napkin, interleaved tissue paper, interfolded paper towel, V fold hand towels, nonwoven airlaid tissue, and MG paper napkins etc. all-in-one machine It adopts vacuum folding style. The mainly function of this machine is to manufacture commercial tissue paper products and away-from-home tissue paper products, easy-to-take one by one plain, embossed and LOGO printed and laminated interfolded dispenser napkins and V fold hand paper towels. It has 10 lanes output and can run at very high speed up to 1000 sheets per minute per lane. The jumbo roll width can be up to 2100mm. It has 4 unwinder jumbo roll stands which are driven by separate independent reduction motor, not chain and belt. It is an ideal equipment to manufacture high grade away-from-home customized embossed facial tissue paper napkin products.
1 Machine for box facial tissue and v fold paper towel
2 With both full embossing and edge embossing.
3 high speed up to 1000 sheet/min/lane
5 Vacuum fold
6 Use vacuum pump
1 Cylinder cutoff size: 200mm/230mm/190mm etc.
2 Steel to rubber Embossing
4 Interfolded and V fold
5 Soft wrap tissue with soft nylon bags and duplex box.
Technical parameters as below
|Output type||10 Lanes High Speed High Speed V fold napkin machine, automatic interfold napkin machine|
|Folding speed||1000 piece/min/lane * 10lanes, depending on the paper quality and napkin size.|
13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or MG paper or nonwoven airlaid.
|Jumbo roll size||≤ 2100mm x Φ1200mm (Depends on your napkin size, customized)|
Open size: 200±2mm x 200/165/140mm Other size, please specify.
Speedless Tension control unit to fit the machine for paper of different quaity and different gsm.
7.5Kw for main motor
|Videos and photos available.|
A. Jumbo roll
a. Jumbo roll specification:12-45g/㎡ 1ply and 2 ply virgin tissue paper or other tissues(specially 2 ply (2 x 18gsm))
b. Jumbo roll size: ≤400mm x Φ1100mm；(Other size available.)
c. Jumbo roll core diameter:Φ76mm；
B. Product size
a. Unfolded size: 210±2mm x 200/165/140mm Other size, please specify.
b. Folded size: 105±2mm x 200/165/140mm
c. Fixed size is 210m. Other size available, please specify.
d. The cutting length is adjustable. Could be 190mm, 200mm etc..
e. Folding type: V fold, interfold and Vacuum folding type.
F. Laminating unit
a. With 2 sets of lamination units.
b. The whole design is copied Italy design.
c. Heavy chrome coating roll
d. Micro-adjustment of nips between the steel roll
e. Anilox roll for glue applicant.
f. Controlled by cylinders
g. Each lamination unit controlled by an independent reducer. When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry.
G. Printing Section (advanced design.)
1. With 2 colors flexo-graphic printer section.
2. Printing unit with driven by timing belts to make printing more precise.
3. Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.
4. With automatic printing roller disconnection device during machine stop. If the machine stops, the roller will automatically disconnect with the printing unit, controlled by pneumatic system.
5. The printing plate roller can be adjustable or disassembled from the printing unit, much easier for the operator to attach the printing rubber plates or clean the roller.
6. Both sides of Anilox roll & Rubber roll with buffer for anti-spill cover to stop the ink spilling out of the ink tank and spraying somewhere.
7. The printer is equipped with cover on the in tank to prevent the inks spilling out of the ink tanks.
H. Control system
a. Speed: about 1000 piece/min/lane x 2 lanes. Depends on paper quality, workers etc.
b. Speed of production is controllable.
c. Main motor control by inverter
d. Automatic left-right stagger counting system, each stack of 100 pieces, 150pieces etc.
e. Machine will automatically stop if paper break or paper jams.
f. Power: about 5.5KW for main motor 3-phase AC380V 50HZ or customized.
g. With Taiwan vacuum pump, about 11KW. (Taiwan brand)
h. Vacuum pump for adsorption (included in quotation.)
i. Air pressure: 0.5Mpa(buyer supplied)
j. Machine weight: 4500kg.
k. Machine size: about 10000x1000x2100mm.
Finished products by this High Speed Automatic Laminated Facial Tissue Machine, High Speed Laminated V Fold Hand Towel Machine In China:
