|Product:||High Speed V Fold Napkin Machine, Automatic Interfold Napkin Machine||Other Name:||Facial Tissue Folding Machine|
|Embossing:||Steel To Rubber Embossing||Cutoff Size:||190/ 200 / 230mm|
|Lamination:||Point To Point Lamination||Capacity:||1200 Sheet/min/line|
Facial Tissue V Fold Napkin Machine,
V Fold Napkin Machine 7.5Kw,
Point Lamination Interfold Napkin Machine

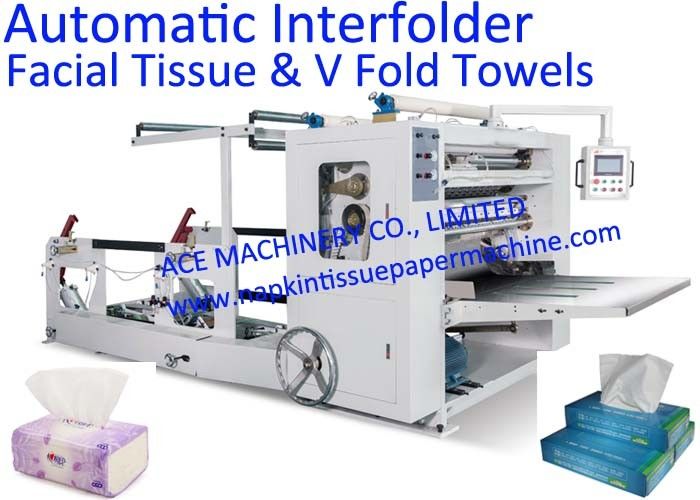

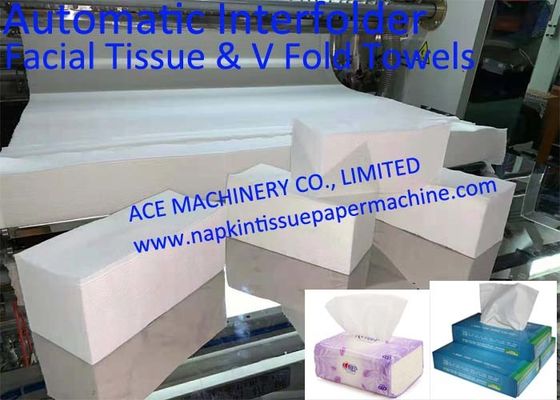

This ACE-V200-15L 10 Lanes High Speed High Speed V fold napkin machine, automatic interfold napkin machine In China is with both full embossing unit and edge embossing unit. It is mainly used to automatically fold, emboss, cut and count facial tissue papers, soft drawing nylon pack facial tissue paper, box-drawing facial tissue papers, pop up tissue paper napkin, interleaved tissue paper, interfolded paper towel, V fold hand towels, nonwoven airlaid tissue, and MG paper napkins etc. all-in-one machine It adopts vacuum folding style. The mainly function of this machine is to manufacture commercial tissue paper products and away-from-home tissue paper products, easy-to-take one by one plain, embossed and LOGO printed and laminated interfolded dispenser napkins and V fold hand paper towels. It has 10 lanes output and can run at very high speed up to 1000 sheets per minute per lane. The jumbo roll width can be up to 2100mm. It has 4 unwinder jumbo roll stands which are driven by separate independent reduction motor, not chain and belt. It is an ideal equipment to manufacture high grade away-from-home customized embossed facial tissue paper napkin products.
1 Machine for box facial tissue and v fold paper towel
2 With both full embossing and edge embossing.
3 high speed up to 1000 sheet/min/lane
5 Vacuum fold
6 Use vacuum pump
1 Cylinder cutoff size: 200mm/230mm/190mm etc.
2 Steel to rubber Embossing
4 Interfolded and V fold
5 Soft wrap tissue with soft nylon bags and duplex box.
Technical parameters as below
|Output type||10 Lanes High Speed High Speed V fold napkin machine, automatic interfold napkin machine|
|Folding speed||1000 piece/min/lane * 10lanes, depending on the paper quality and napkin size.|
13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or MG paper or nonwoven airlaid.
Other sizes please specify.
|Jumbo roll size||≤ 2100mm x Φ1200mm (Depends on your napkin size, customized)|
Open size: 200±2mm x 200/165/140mm Other size, please specify.
Folded size: 100±2mm x 200/165/140mm
Fixed cutoff size is 200m. Other size available, please specify. or Customized.
1/2 V fold.
Speedless Tension control unit to fit the machine for paper of different quaity and different gsm.
With automatic web guiding system.
With automatic web tension control system.
7.5Kw for main motor
18.5KW for vacuum pump
(3-phase AC380V 50Hz or customized)
|Videos and photos available.|
F. Laminating unit
a. With 2 sets of lamination units.
b. The whole design is copied Italy design.
c. Heavy chrome coating roll
d. Micro-adjustment of nips between the steel roll
e. Anilox roll for glue applicant.
f. Controlled by cylinders
g. Each lamination unit controlled by an independent reducer. When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry.
G. Printing Section (advanced design.)
1. With 2 colors flexo-graphic printer section.
2. Printing unit with driven by timing belts to make printing more precise.
3. Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.
4. With automatic printing roller disconnection device during machine stop. If the machine stops, the roller will automatically disconnect with the printing unit, controlled by pneumatic system.
5. The printing plate roller can be adjustable or disassembled from the printing unit, much easier for the operator to attach the printing rubber plates or clean the roller.
6. Both sides of Anilox roll & Rubber roll with buffer for anti-spill cover to stop the ink spilling out of the ink tank and spraying somewhere.
7. The printer is equipped with cover on the in tank to prevent the inks spilling out of the ink tanks.
H. Control system
a. Speed: about 1000 piece/min/lane x 2 lanes. Depends on paper quality, workers etc.
b. Speed of production is controllable.
c. Main motor control by inverter
d. Automatic left-right stagger counting system, each stack of 100 pieces, 150pieces etc.
e. Machine will automatically stop if paper break or paper jams.
f. Power: about 5.5KW for main motor 3-phase AC380V 50HZ or customized.
g. With Taiwan vacuum pump, about 11KW. (Taiwan brand)
h. Vacuum pump for adsorption (included in quotation.)
i. Air pressure: 0.5Mpa(buyer supplied)
j. Machine weight: 4500kg.
k. Machine size: about 10000x1000x2100mm.
l. Important parts:
Taiwan DELTA or Germany Siemens PLC + touch screen + inverter.
Japan Omron sensors.
France Schneider electronics like contactors, relay and breakers.
The best China bearings. (Even Japan NSK or Sweden SKF bearings for the main rollers.).
Taiwan Airtac cylinders and air switch.
Taiwan vacuum pump, less noise and power.
Jiangsheng brand motors made in China.
