Napkin Printing Machine With Best Quality Printing On Napkins From China

Napkin Printing Machine With Best Quality Printing On Napkins From China
Napkin Printing Machine With Best Quality Printing On Napkins From China
video play

Large Image :  Napkin Printing Machine With Best Quality Printing On Napkins From China

Product Details:
Place of Origin: China
Brand Name: ACE
Certification: CE
Model Number: ACE-TNM-7C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Name: Napkin Printing Machine With Best Quality Printing On Napkins From China Speed: 200m/min
Napkin Size: 330x330mm And Beverage Napkin 5"*5" Folding Style: 1/4 Fold & 1/6 Tall Fold
Color Register Tolerance: ±0.1mm. Printing: Up To 8 Colors
High Light:

Anilox Roll Napkin Printing Machine

,

1/6 Fold Napkin Printing Machine

,

Synchronizer Feeding Napkin Printer Machine

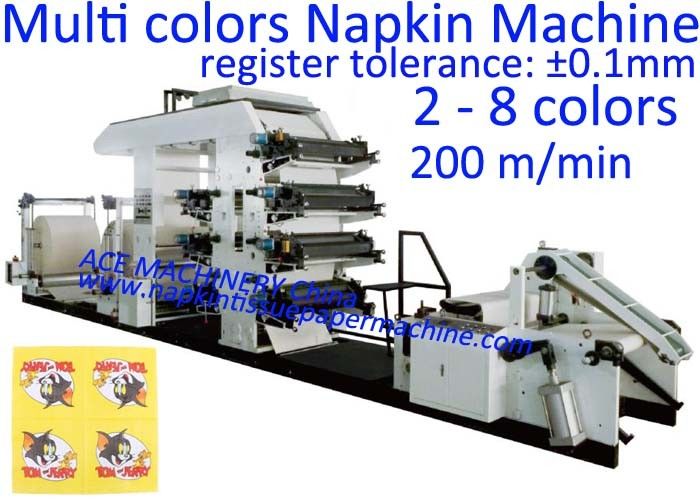

Napkin Printing Machine With Best Quality Printing On Napkins From China





Application

This ACE-TNM-7C Napkin Printing Machine With Best Quality Printing On Napkins From China is mainly used to for production of high quality color printing on napkins. It is with high resolution and register tolerance. It can automatically fold, emboss, print, cut and count 1/4 fold table napkins, cocktail napkin, restaurant napkins, beverage napkin, lunchen napkin, 1/6 fold tallfold dispenser napkin, wallet tissue and MG paper napkins etc. The mainly function of this machine is to make multi colors printed high resolution high quality printing 1 colors, 2 colors, 3 colors, 4 four colors up to eight colors.







Advantage:

1 Best quality printing napkin machine in China now.

2 High resolution printing machine.

3 With 6,7,8 colors printing.

4 With auto web tension system

5 With auto edge guiding system

6- Color register tolerance: ±0.1mm.


Technical parameters as below

Technical parameters as below



Italy Design Automatic High Speed 4 ColorS Printing Napkin Machine



Model ACE-TNM-7C the best quality napkin printing machine in China
Output type 1 layer, with 2 lines output.
Folding speed

200 m/min, about 400-700 piece/min, depending on the paper quality and napkin size.

Raw paper

13-20g/m2 2-ply, 20-45g/m2 1-ply, wooden pulp paper or others.

Other sizes please specify.

Jumbo roll size (200-460)mm x Φ1200mm (Depending on your napkin size,customized)
Napkin unfolded size 200mm x 200mm to 460mm x 460mm or Customized.
Napkin folded size

100mm x 100mm to 230mm x 230mm

One size is fixed.

One napkin size is adjustable, decided by the paper roll width.

Folding type

Mechanical fold with band saw cutting; 1/4 fold;

Vacuum folding and other folding types available.

Folding unit With or without folding fingers.
Embossing unit

1- Steel to paper(wool), Male to female. (Steel to steel is available.)

2- Embossing pattern can be any LOGO, brand name, flowers etc.

3- Embossing pattern can be customized by client or recommended by us

4- Controlled by screws, mechanical pressing type. Cylinder type is optional.

Printing unit

1- Flexo printing type.

2- Printing colors customized up to 8 colors.

Color register tolerance: ± 0.1mm.

3- Printing Logo is changeable. You just need to change the Printing Rubber only.

4- Anilox printing roll.

5- Printing roll is adjustable.

6- Ink printing system to be negotiated.

Tension control

Speedless Tension control unit to fit the machine for paper of different quaity and different gsm.

With automatic web guiding system.

With automatic web tension control system.

Calendar unit Make the napkin softer.
Counting Automatic counting unit
Emergent stop Emergent stop unit to inspect any paper breaks, paper jams.
Paper feeding Synchronizer for feeding paper
Power 10Kw depends on requiremetns (3-phase AC380V 50Hz or customized)
Machine size 7x2x3m
Weight 4000KG
Videos and photos available.



C. Printing Section (advanced design.)



1. With 7 colors flexo-graphic printer section. (High quality printing)

2. With ceramic anilox printing rollers.

3. Printing unit with driven by timing belts to make printing more precise.

4. Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.

5. Both sides of Anilox roll & Rubber roll with buffer for anti-spill cover to stop the ink spilling out of the ink tank and spraying somewhere.

6. The printer is equipped with covers on the in tank to prevent the inks spilling out of the ink tanks.

7. With printing ink reservoir for reserve dropping ink and avoid ink dropping on machine or place to keep environment clean.

8. Casting iron forming foundation. Floor-standing thickened Wallboard structure (complete plate) to ensure high speed stable running no vibration.

9. With one set of heating device (Dryer) for heating the napkin to make the printing LOGO dry fast.



Products made by this Napkin Printing Machine With Best Quality Printing On Napkins From China for reference.:

napkin printing machine
