Four Decks Automatic Lunch Napkin Folding Machine 5200pc/min Beverage Napkin Machine

Four Decks Automatic Lunch Napkin Folding Machine 5200pc/min Beverage Napkin Machine
Four Decks Automatic Lunch Napkin Folding Machine 5200pc/min Beverage Napkin Machine
video play

Large Image :  Four Decks Automatic Lunch Napkin Folding Machine 5200pc/min Beverage Napkin Machine

Product Details:
Place of Origin: China
Brand Name: ACE
Certification: CE
Model Number: ACE-TNM-2L-4H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Name: Automatic Lunch Napkin Folding Machine Speed: 5200 Sheet/min
Napkin Size: 330x330mm And Other Folding Style: 1/4 Quarter Fold & 1/6 Tall Fold
Drive System: Servo Motor Drive Or Belt Drive Output: Four Decks
High Light:

Four Decks Napkin Folding Machine

,

Automatic Lunch Napkin Folding Machine

,

5200pc/min Beverage Napkin Machine

Four Decks Automatic Lunch Napkin Folding Machine, 5200 Pc/Min High Speed Beverage Napkin Machine



Please watch below video of ACE-TNM-2L-4H Four Decks Automatic Lunch Napkin Folding Machine, 5200 Pc/Min High Speed Beverage Napkin Machine for your reference.









Please check out this video link to have a look at our Four Decks Automatic Lunch Napkin Folding Machine, 5200 Pc/Min High Speed Beverage Napkin Machine.



Direct YouTube video link: https://youtu.be/3iImIqPO-sw



If you like the videos, please subscribe our YouTube Channel to follow us: https://www.youtube.com/channel/UC4kDnhV8pMhUG2PXey1qtSw?sub_confirmation=1



Application

This ACE-TNM-2L-4H Four Decks Automatic Lunch Napkin Folding Machine, 5200 Pc/Min High Speed Beverage Napkin Machine is mainly used to automatically fold, emboss, printing, cutting, packing and counting 1/4 fold table napkins, cocktail napkin, hotel napkins, restaurant napkins, beverage napkin, lunchen napkin, 1/6 fold tallfold dispenser napkin, wallet tissue, custom airlaid nonwoven napkins and MG paper napkins etc.





Below more videos of our custom Four Decks Automatic Lunch Napkin Folding Machine, 5200 Pc/Min High Speed Beverage Napkin Machine from the best China manufacturers but has Taiwan design high quality for reference.

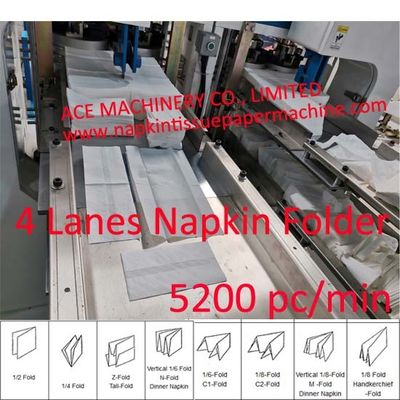

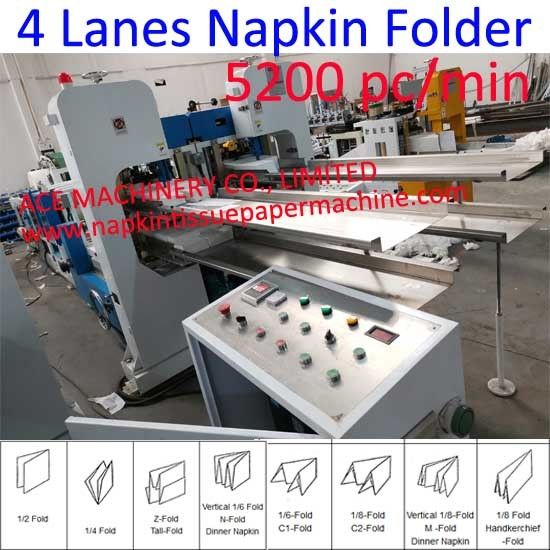

Four Decks Automatic Lunch Napkin Folding Machine 5200pc/min Beverage Napkin Machine 0





Four Decks Automatic Lunch Napkin Folding Machine 5200pc/min Beverage Napkin Machine 0



Advantage:

1 Taiwan design

2 High speed up to 5200 sheet/min, depends on multi napkin sizes.

3 Four decks eight lines lunch napkin folding machine.

4 Fastest in China mainland now.

5 High quality


Technical parameters as below

Napkin open size(mm) 200*200 240*240 250*250 300*300 330*330 400*400 Other sizes to be customized
Napkin folded size (mm) 100*100 120*120 125*125 150*150 165*165 200*200
Jumbo roll width (mm) 1200 1440 1500 1800 1980 2400
Raw material Tissue paper and nonwoven airlaid and MG paper.
Output format

two decks (four dekcs) napkin machine

eight lines napkin machine

Machine speed Up to 5200 sheet/min, depends on multi napkin sizes.
Folding type

1/4

1/2

1/6

1/8

1/12

V fold

Single flat sheet

or custom folding style.

Mechanical fold with bandsaw cutting

Embossing system

Full embossing or side edge border embossing.

Steel to paper(wool coated)

steel to rubber

steel to steel

steel to mirror

Printing system 2 to 4 colors printing.
Control

PLC,

Frequency conversion speed control

Automatic paper break detection

JOG

Emergency stop

Alarm system.

Power supply

About 7.5kg

3phase 380v 50hz or 3phase 220v 60hz or 480v

Machine weight 6000kg
Machine size 6*1.5*2.4m



D. Folding Section
1. Napkin sizes. Other sizes available. Please contact us.
Open size:   300x300mm
Folded size: 150x150mm
Cutoff size: about 300mm.
2. Folder type: mechanical folding type, 1/4 quarter fold type.
3. Synchronizer for feeding paper
4. The gap and distance between two folding rollers can be adjustable to fit for different paper gsm and thickness.
5. With 3 sets of slitting blades.
6. With double decks four lines output delivery. (Double decks available)
7. Capacity: About 300m/min, about 1000sheet/min/lane * 4lanes = 4000 sheet/min total, depending on paper quality, gsm and workers operation.
8. With automatic counting unit, every count 1 - 99999 sheet/count. With tissue pop up every count.
9. With “guard doors” for the folding head.
10. With automatic sharpening system for grinding the bandsaws.
11. With easy system for Changing Band Saw. There are slots on the tray so that the operator can slide the band saw out without removing any other parts, when he needs to change the band saw.
12. Can be designed to make both 1/4 quarterfold napkins and 1/6 tallfold napkins.(Need customized and both 1/4 and 1/6 must have same cutoff size.)
13. Driven by an independent motor. NOT chains or belts.



D. Important parts:

1. Taiwan DELTA Inverter. Much easier for operation. (Other companies use only buttons and even all inferior buttons, easy to damage. And they use Elctromagnetic speed control, easy to get broken.)

2. Japan Omron sensors for detecting paper break. (Other companies use inferior brands)

3. Franch Schneider electrical parts like breakers, contactors and relays. (Other companies inferior brands made in China)

4. French Schneider buttons (Other companies use bad quality buttons)

5. The best China bearings, even Japan NSK bearings for the main aprts. (Other companies use cheap inferior brands bearings)

6. Taiwan Airtac cylinders. (Other companies use not that good brand)

7. The best brand motor made in China. (Other companies inferior brand)

8. Stronger structure and better quality parts than others. Complete thickened wallboard steel plate structure to ensure high speed running, no vibration.



Free spare parts

1. Plastic tuckers. 4pcs

2. Band saws 4pcs

3. Timing belt 1 pc each type

4. tool kit



Products made by this Four Decks Automatic Lunch Napkin Folding Machine, 5200 Pc/Min High Speed Beverage Napkin Machine:



lunch napkin machine



Brands of important electrical parts

PLC  INVT
Inverter  INVT
HMI  DELTA
Bearings NSK SKF
Electrical part Schneider
Pneumatic parts Airtac
Vacuum pump Taiwan Longtech
Steel Japan steel



FAQ

Q: Are you trading company or manufacturer

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
