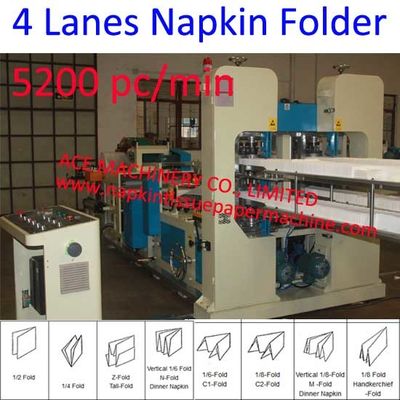

5200 Pc/Min Four Lines Automatic Napkin Manufacturing Machine 330x330mm Napkin Production Machine

China ACE MACHINERY CO.,LIMITED certification
China ACE MACHINERY CO.,LIMITED certification
I have bought several high speed napkin paper machines from ACE MACHINERY. They have been working perfectly.

—— Michael

I was happy to buy tissue paper machines from ACE MACHINERY. They offered me high quality tissue machines and good after sales service.

—— Pat

For me, ACE is the best manufacturer high speed paper napkin machine and high speed hand towel machine in CHINA.

—— Gomez (paper napkin converter)

I'm Online Chat Now

5200 Pc/Min Four Lines Automatic Napkin Manufacturing Machine 330x330mm Napkin Production Machine

5200 Pc/Min Four Lines Automatic Napkin Manufacturing Machine 330x330mm Napkin Production Machine
5200 Pc/Min Four Lines Automatic Napkin Manufacturing Machine 330x330mm Napkin Production Machine
video play

Large Image :  5200 Pc/Min Four Lines Automatic Napkin Manufacturing Machine 330x330mm Napkin Production Machine

Product Details:
Place of Origin: China
Brand Name: ACE
Certification: CE
Model Number: ACE-TNM-2L-4H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Name: Four Lines Automatic Napkin Manufacturing Machine Speed: 5200sheet/min
Napkin Size: 330x330mm And Other Folding Style: 1/4 Quarter Fold & 1/6 Tall Fold
Drive System: Separate Motor Drive Or Belt Drive Output: Four Lines
Highlight:

Four Lines Automatic Napkin Manufacturing Machine

,

PLC Automatic Napkin Manufacturing Machine

,

330x330mm Napkin Production Machine

High Speed 5200 Pc/Min Four Lines Automatic Napkin Manufacturing Machine, 330x330mm Napkin Production Machine



Please watch below video of ACE-TNM-2L-4H High Speed 5200 Pc/Min Four Lines Automatic Napkin Manufacturing Machine, 330x330mm Napkin Production Machine for your reference.



Please check out this video link to have a look at our High Speed 5200 Pc/Min Four Lines Automatic Napkin Manufacturing Machine, 330x330mm Napkin Production Machine.



Direct YouTube video link: https://youtu.be/3iImIqPO-sw



If you like the videos, please subscribe our YouTube Channel to follow us: https://www.youtube.com/channel/UC4kDnhV8pMhUG2PXey1qtSw?sub_confirmation=1



Application

This ACE-TNM-2L-4H High Speed 5200 Pc/Min Four Lines Automatic Napkin Manufacturing Machine, 330x330mm Napkin Production Machine super high speed tissue paper napkin folding machine is mainly used to automatically fold, emboss, print, cut and count 1/4 fold table napkins, cocktail napkin, hotel napkins, restaurant napkins, beverage napkin, lunchen napkin, 1/6 fold tallfold dispenser napkin, wallet tissue, custom airlaid nonwoven napkins and MG paper napkins etc.





Below more videos of our custom High Speed 5200 Pc/Min Four Lines Automatic Napkin Manufacturing Machine, 330x330mm Napkin Production Machine from the best China manufacturers but has Taiwan design high quality for reference.







5200 Pc/Min Four Lines Automatic Napkin Manufacturing Machine 330x330mm Napkin Production Machine 0





5200 Pc/Min Four Lines Automatic Napkin Manufacturing Machine 330x330mm Napkin Production Machine 0



Advantage:

1 Taiwan design

2 High speed up to 5200 sheet/min, depends on multi napkin sizes.

3 With four lines output ( 4 decks, four layers, 8 lines)

4 Fastest in China mainland now.

5 High quality


Technical parameters as below

Napkin open size(mm) 200*200 240*240 250*250 300*300 330*330 400*400 Other sizes to be customized
Napkin folded size (mm) 100*100 120*120 125*125 150*150 165*165 200*200
Jumbo roll width (mm) 1200 1440 1500 1800 1980 2400
Raw material Tissue paper and nonwoven airlaid and MG paper.
Output format two decks four lines
Machine speed Up to 5200 sheet/min, depends on multi napkin sizes.
Folding type

1/4

1/2

1/6

1/8

1/12

V fold

Single flat sheet

or custom fold.

Mechanical fold with bandsaw cutting

Embossing system

Full embossing or side edge border embossing.

Steel to paper(wool coated)

steel to rubber

steel to steel

steel to mirror

Printing system 2 to 4 colors printing.
Control

PLC,

Frequency conversion speed control

Automatic paper break detection

JOG

Emergency stop

Alarm system.

Power supply

About 7.5kg

3phase 380v 50hz or 3phase 220v 60hz or 480v

Machine weight 6000kg
Machine size 6*1.5*2.4m



D. Folding Section
1. Napkin sizes. Other sizes available. Please contact us.
Open size:   300x300mm
Folded size: 150x150mm
Cutoff size: about 300mm.
2. Folder type: mechanical folding type, 1/4 quarterfold type.
3. Synchronizer for feeding paper
4. The gap and distance between two folding rollers can be adjustable to fit for different paper gsm and thickness.
5. With 3 sets of slitting blades.
6. With double decks four lines output delivery. (Double decks available)
7. Capacity: About 300m/min, about 1000sheet/min/lane * 4lanes = 4000 sheet/min total, depending on paper quality, gsm and workers operation.
8. With automatic counting unit, every count 1 - 99999 sheet/count. With tissue pop up every count.
9. With “guard doors” for the folding head.
10. With automatic sharpening system for grinding the bandsaws.
11. With easy system for Changing Band Saw. There are slots on the tray so that the operator can slide the band saw out without removing any other parts, when he needs to change the band saw.
12. Can be designed to make both 1/4 quarterfold napkins and 1/6 tallfold napkins.(Need customized and both 1/4 and 1/6 must have same cutoff size.)
13. Driven by an independent motor. NOT chains or belts.

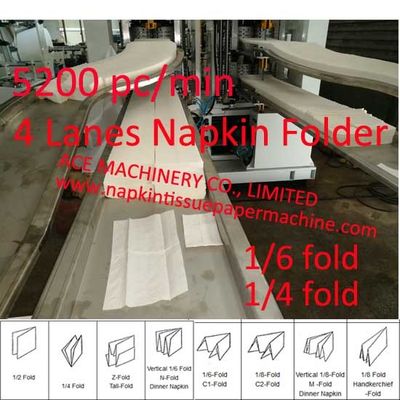

Products made by this High Speed 5200 Pc/Min 4 Lanes Automatic Paper Napkin Making Machine, 300x300mm Tissue Paper Napkin Machine:

napkin manufacturing machine



Brands of important electrical parts

PLC  INVT
Inverter  INVT
HMI  DELTA
Bearings NSK SKF
Electrical part Schneider
Pneumatic parts Airtac
Vacuum pump Taiwan Longtech
Steel Japan steel



FAQ

Q: Are you trading company or manufacturer

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
