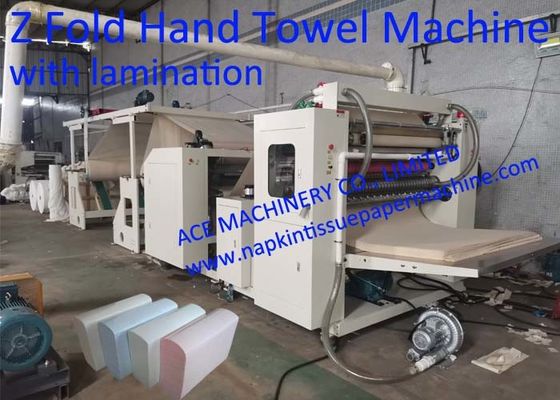

Automatic Z Fold Paper Towel Machine With Lamination Z Folding Hand Towel Machine With Lamination

Automatic Z Fold Paper Towel Machine With Lamination Z Folding Hand Towel Machine With Lamination
Automatic Z Fold Paper Towel Machine With Lamination Z Folding Hand Towel Machine With Lamination
video play

Large Image :  Automatic Z Fold Paper Towel Machine With Lamination Z Folding Hand Towel Machine With Lamination

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-N240-6L-L
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Product Name: Lamination Z Fold Paper Towel Machine Folding Way: Z Multifold
Speed: 1000 Sheet/min/lane Control: Inverter Control
Lamination: Point To Point Lamination Voltage: 220V Or 380V
High Light:

7.5Kw Z Fold Paper Towel Machine

,

6 Lanes Paper Towel Machine

,

Z Multifold Hand Towel Machine

Automatic Z Fold Paper Towel Machine With Lamination, Z Folding Hand Towel Machine With Lamination

Please watch below video of ACE-N240-6L-L Automatic Z Fold Paper Towel Machine With Lamination, Z Folding Hand Towel Machine With Lamination for your reference.




You can also check out this video link to have a look at our lamination Z fold paper towel machine video.



Direct YouTube video Link:   https://youtu.be/aZf_X-YCCZ0



If you like the machines, please Subscribe YouTube Channel to folllow us: https://bit.ly/33BHsvl . Thanks.



Application
This ACE-N240-6L-L 6Lanes Lamination Z Fold Paper Towel Machine is with steel to steel embossing unit and lamination system. It is good quality high speed tissue converting machine to manufacture M fold interfolded paper towels, four folds paper towels, five folds paper towels, six folds paper towels and nonwoven airlaid tissue, and MG paper napkins etc. It is with the out-of-date latest technology in tissue paper converting. It adopts vacuum folding style. The mainly function of this machine is to manufacture commercial tissue paper products and away-from-home tissue paper products, easy-to-take one by one plain, embossed and LOGO printed and colored and laminated interfolded M W fold paper hand towels. It is an ideal equipment to manufacture high grade away-from-home customized embossed facial tissue paper napkin products.

Advantage:
1 Machine for laminated Z or N fold  multifold paper towels
2 With point to point glue lamination unit.
3 high speed up to 1000 sheet/min/lane
4 Energy-saving.
5 Vacuum fold
6 Fold stype: M fold, Four fold, Five fold, Six fold.

Quick details:
1 Cylinder cutoff size: 240mm or customized etc.
2 Lamination system.
3 with 6lanes
4 Interfolded and M fold
5 Can connect to logsaw cutting machine
Technical parameters as below


Model ACE-N240-6L-L
Output type Automatic Z Fold Paper Towel Machine With Lamination, Z Folding Hand Towel Machine With Lamination
Folding speed 1000 piece/min/lane * 6lanes = 6000 sheet/min, depending on the paper quality and napkin size.
Raw paper

13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or MG paper or nonwoven airlaid.
Other sizes please specify.

Jumbo roll size ≤ 1200mm x Φ1200mm (Depends on your napkin size, customized)
Napkin size

Open size: 240±2mm x 200mm Other size, please specify.
Folded size: 80±2mm x 200mm
Fixed cutoff cylinder size is 240m. Other size available, please specify. or Customized.

Folding type

Inter folding
Vacuum fold
Z fold, N fold, multifold, interfold.

Embossing unit

1- Steel to steel.
2- Embossing pattern can be any LOGO, brand name, flowers etc.
3- Embossing pattern can be customized by client or recommended by us
4- Controlled by screws, mechanical pressing type. Cylinder type is optional.

Printing unit

Optional
1- Flexo printing type.
2- Printing colors customized up to 4 colors.
3- Printing Logo is changeable. You just need to change the Printing Rubber only.
4- Anilox printing roll. Ceramic anilox roller.
5- Printing roll is adjustable.
6- Ink printing system to be negotiated.
7- With doctor blades.
8- Closed chamber ink circulating system.

Point to point Lamination system

a. With 2 complete sets of point to point lamination units.
b. The whole design is copied Italy design.
c. Heavy chrome coating roll
d. Micro-adjustment of nips between the steel roll
e. Anilox roll for glue applicant.
f. Controlled by cylinders
g. Each lamination unit controlled by an independent reducer. When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry.

Tension control

Speedless Tension control unit to fit the machine for paper of different quaity and different gsm.
With automatic web guiding system.
With automatic web tension control system.

Counting Automatic counting unit
Emergent stop Emergent stop unit to inspect any paper breaks, paper jams.
Paper feeding Synchronizer for feeding paper
Power

7.5Kw for main motor
18.5KW for vacuum pump
(3-phase AC380V 50Hz or customized)

Machine size 6x2x2m
Weight 6T
Videos and photos available.



Configuration:

Bearings NSK
PLC Siemens
Inverter Siemens
Touch screen Siemens
Auto web guide Italy Best
Auto tension system Like
Steel High Speed steel
Anilox Ceramix



FAQ
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

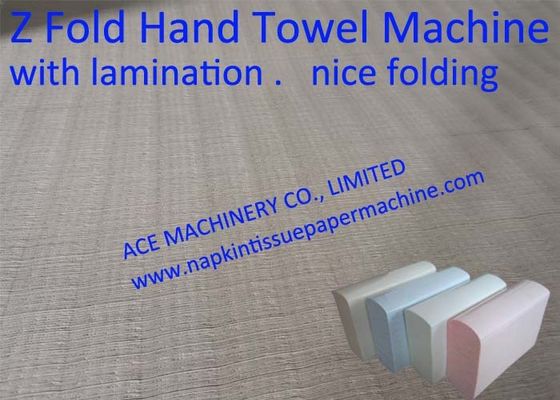

Sample made by this Automatic Z Fold Paper Towel Machine With Lamination, Z Folding Hand Towel Machine With Lamination:
lamination paper towel machine
