| Name: | Paper Napkin Making Machine Price | Speed: | 7000 Sheet/min |
|---|---|---|---|
| Napkin Size: | 300x300mm And Other | Folding Style: | 1/4 Quarter Fold & 1/6 Tall Fold |
| Cutting: | Bandsaw Cutting | Output: | 6 Lanes |
| High Light: | Bandsaw Cutting Paper Napkin Making Machine,MG Paper Napkin Making Machine,6 Lanes Automatic Tissue Paper Machine |
||
Please watch below video of ACE-TNM-3L-6H 6 Lanes Automatic Tissue Paper Napkin Making Machine Price 7000 Sheet/Min for your reference.
You can also check out this video link to have a look at our napkin machine video.
Direct YouTube video Link: https://youtu.be/YJ4_Q85QNuk
If you like the machines, please Subscribe YouTube Channel to folllow us: https://bit.ly/33BHsvl . Thanks.
Application

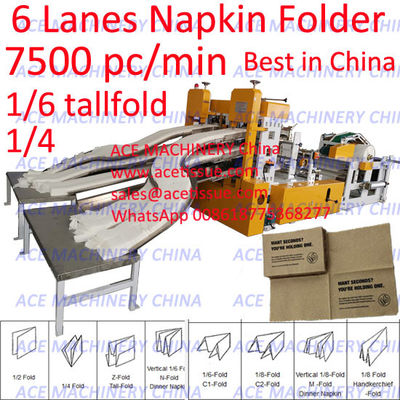

This ACE-TNM-3L-6H 6 Lanes Automatic Tissue Paper Napkin Making Machine Price 7000 Sheet/Min super high speed tissue paper napkin folding machine is mainly used to automatically fold, emboss, print, cut and count 1/4 fold table napkins, cocktail napkin, restaurant napkins, beverage napkin, lunchen napkin, 1/6 fold tallfold dispenser napkin, wallet tissue and MG paper napkins etc.
Advantage:
1 Taiwan design
2 High speed up to 7000 sheet/min.
3 With 6 lanes output
4 Very stable running.
5 High quality
Technical parameters as below
| Napkin open size(mm) | 200*200 | 240*240 | 250*250 | 300*300 | 330*330 | 400*400 | Other sizes to be customized |
| Napkin folded size (mm) | 100*100 | 120*120 | 125*125 | 150*150 | 165*165 | 200*200 | |
| Jumbo roll width (mm) | 1200 | 1440 | 1500 | 1800 | 1980 | 2400 | |
| Raw material | Tissue paper and nonwoven airlaid and MG paper. | ||||||
| Output format | 3 decks 6 lanes | ||||||
| Machine speed | Up to 7000 sheet/min | ||||||
| Folding type |
1/4 1/2 1/6 1/8 1/12 V fold Single flat sheet Mechanical fold with bandsaw cutting |
||||||
| Embossing system |
Full embossing or side edge border embossing. Steel to paper(wool coated) steel to rubber steel to steel steel to mirror |
||||||
| Printing system | 2 to 4 colors printing. | ||||||
| Control |
PLC, Frequency conversion speed control Automatic paper break detection JOG Emergency stop Alarm system. |
||||||
| Power supply |
About 7.5kg 3phase 380v 50hz or 3phase 220v 60hz or 480v |
||||||
| Machine weight | 6000kg | ||||||
| Machine size | 6*1.5*2.4m | ||||||
D. Folding Section
1. Napkin sizes. Other sizes available. Please contact us.
Open size: 300x300mm
Folded size: 150x150mm
Cutoff size: about 300mm.
2. Folder type: mechanical folding type, 1/4 quarter fold type.
3. Synchronizer for feeding paper
4. The gap and distance between two folding rollers can be adjustable to fit for different paper gsm and thickness.
5. With 3 sets of slitting blades.
6. With double decks 4 heads output delivery. (Double decks available)
7. Capacity: About 300m/min, about 1000sheet/min/lane * 6lanes = 6000 sheet/min total, depending on paper quality, gsm and workers operation.
8. With automatic counting unit, every count 1 - 99999 sheet/count. With tissue pop up every count.
9. With “guard doors” for the folding head.
10. With automatic sharpening system for grinding the bandsaws.
11. With easy system for Changing Band Saw. There are slots on the tray so that the operator can slide the band saw out without removing any other parts, when he needs to change the band saw.
12. Can be designed to make both 1/4 quarterfold napkins and 1/6 tallfold napkins.(Need customized and both 1/4 and 1/6 must have same cutoff size.)
13. Driven by an independent motor. NOT chains or belts.
Products made by this high speed machine:
