500 Sheet / Min 240x240mm Napkin Production Line

500 Sheet / Min 240x240mm  Napkin Production Line
500 Sheet / Min 240x240mm  Napkin Production Line
video play

Large Image :  500 Sheet / Min 240x240mm Napkin Production Line

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-TNL
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Machine Name: Napkin Tissue Paper Fully Automatic Production Line With Transfer System Automation: Fully Automated With Transfer
Control: Automatic Control Speed: 500-800 Sheet/min
Printing: 2 Colors Embossing: Steel To Paper
High Light:

240mm Napkin Production Line

,

240mm serviette making machine

,

240mm Napkin Production Line

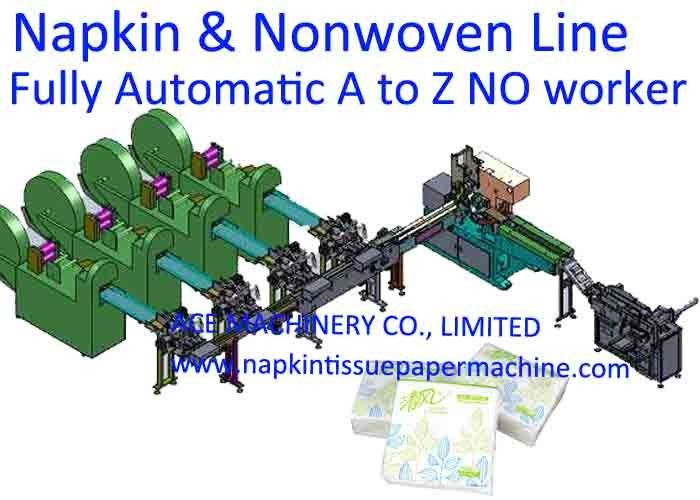

Napkin Tissue Paper Fully Automatic Production Line With Transfer System

Application

This ACE-TNL Napkin Tissue Paper Fully Automatic Production Line With Transfer System With Packaging Machine is used to produce 1/4 quarter fold, 1/6 tallfold, beverage napkins, table napkins, cocktail napkin, restaurant napkin, nonwoven airlaid napkins etc. This fully automatic paper napkin production line consists of napkin folding machine, auto transfer system to transfer the napkins to the conveyor of the automatic napkin packaging machine and then wrap it with film rolls. The whole process is fully automated, no need any worker. It can be also equipped with color printing units, steel to paper embossing units, lamination unit and so on.



Quick details

1 Fully automatic

2 Auto transfer system.

3 High speed and save labor.



Technical parameters:



TNL Fully-auto Napkin Line from jumbo roll to single pack NO need worker

Single deck Output Delivery Napkin Machine

Technical parameter:

A. back stand

1. Parent roll specification: 18-75g/m2 1-ply; 13-18gsm 2 plies tissue paper. Or customized.

2. Parent roll size: ≤Φ1100 x 300mm. Diameter x Width

3. Core inner diameter: 76mm



Technical parameters:

Napkin sizes

180x180mm (folded 90x90mm)

240x240mm (folded 120x120mm)

250x250mm (folded 125x125mm)

300x300mm (folded 150x150mm)

330x330mm (folded 165x165mm)

400x400mm (folded 200x200mm)

430x430mm (folded 215x215mm)

Folding type

Mechanical folding

1/4 quarterfold

1/6 tallfold

1/8 fold

1/12 fold

Printing unit Up to 4 colors printing

Full Embossing unit

Edge embossing unit

Steel to paper embossing

Steel to steel embossing

Steel to mirror embossing

Speed 500-700 sheet/min
Automatic Fully automatic A to Z no need worker
Control system

PLC control

Touch screen for data setting

Inverter frequency speed control

Servo motor control the auto transfer

With JOG function, easy for threading the paper and maintenance.

With emergency stop function, better for safety, you can stop the machine any time when there is emergency.

With auto sensors for detecting paper breaks or used up. Machine will automatically stop if paper breaks or used up.

Power About 4KW
Machine size About 6*1.5*2m
Machine weight About 4000kg



F. Control system

1. With JOG function, easy for threading the paper and maintenance.

2. With emergency stop function, better for safety, you can stop the machine any time when there is emergency.

3. With auto sensors for detecting paper breaks or used up. Machine will automatically stop if paper breaks or used up.

4. Famous brand motor.

5. Power: 2.75~4.5kw (3-phase AC380V 50Hz or customized)

6. Pressure: 0.5MPa.

7. Machine size: 5x1x1.7(M)

8. Weight: about 2500 kg





 FNP Fully Automatic Napkin Packing Machine

Main characteristics & Structure features:

4. It saves much packing material by the function of photocell checking, servo tracking, non-material feeding without tissue.

5. High automation, high specialization, high efficiency and less trouble.

6. Various packing size may change quickly among different tissue sizes.

7. Servo motor control

8. With perforation system to perforate dotted line on each pack of napkins.

9. With date coding system to print manufacture dates on each pack of napkins.

10. Automatic feeding lubrication oil to prolong the mechanical parts of the machine.



Other Technical parameters.

1. Material:

a. Packing material: CPP with thickness 40 - 45 microns

2. Tissue packing size:L150 x W150 x H(28-55)mm. Have another model can pack up to 100mm height.

3. Max. packing size: 230mm x 150mm x 110mm.

5. Seal part: hot sealing, envelope type

6. Control: automatic PLC control, touch screen and inverter control

a. Main motor Control by timing Frequency conversion,PLC control;

b. Magic eye check controlling material and packing film system;

7. Power:AC380V 50HZ about 5.4Kw plus Heating power:3.6Kw

Working noise: ≤78db

8. air pressure: 0.5Mpa(buyer supplier);

9. Packing speed: 40-70 packs/min.

10. Machine size: L3680 x W5885 x H1925mm

11. Machine weight: 3500kg



Configuration:

Bearings NSK
PLC Siemens
Inverter Siemens
Touch screen Siemens
Auto web guide Italy Best
Auto tension system Like
Steel High Speed steel
Anilox Ceramix



FAQ

Q: Are you trading company or manufacturer

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.



Samples made by this Napkin Tissue Paper Fully Automatic Production Line With Transfer System:

Napkin Tissue Paper Fully Automatic Production Line
