2600mm Steel To Rubber Embossing Maxi Jumbo Roll Tissue Machine

2600mm Steel To Rubber Embossing Maxi Jumbo Roll Tissue Machine
2600mm Steel To Rubber Embossing Maxi Jumbo Roll Tissue Machine

Large Image :  2600mm Steel To Rubber Embossing Maxi Jumbo Roll Tissue Machine

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-IRM
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Name: Maxi Jumbo Roll Tissue Machine Speed: 250m/min
Finished Products: Maxi Roll Tissue Embossing: Steel To Rubber
Lamination: Customized Point To Point Drive System: Separate Servo Motor Drive
High Light:

2600mm Jumbo Roll Tissue Machine

,

2600mm jumbo roll slitter rewinder

,

2600mm tissue slitting machine

Automatic Maxi Jumbo Roll Tissue Machine With Steel To Rubber Embossing



Application

This ACE-IRM Automatic Maxi Jumbo Roll Tissue Machine With Steel To Rubber Embossing is with steel to rubber embossing unit and point to point deco lamination glue system. It is good quality high speed tissue converting machine to manufacture jumbo roll tissue, jumbo toilet paper, hardwound roll, HRT, JRT, bathroom tissue, hygienic tissue, laminated kitchen towel roll etc. It is with the out-of-date latest technology in tissue paper converting. It adopts vacuum folding style. The mainly function of this machine is to manufacture commercial tissue paper products and away-from-home tissue paper products, embossed and laminated toilet paper rolls and kitchen towels. It is an ideal equipment to manufacture high grade away-from-home customized embossed tissue rolls.



Advantage:

1 Machine for toilet paper and jumbo roll tissue

2 With embossing and perforation

3 Speed 250 m/min

4 Energy-saving.

5 Separate motor drive

6 Semi-automatic feed pre-cut paper cores.



Quick details:

1 Mother roll width 1200mm – 4000mm

2 Lamination system optional.

3 Embossing unit

4 Rewind and cut

5 Can connect to logsaw cutting machine


Technical parameters as below



Model ACE-IRM
Output type Automatic Maxi Jumbo Roll Tissue Machine With Steel To Rubber Embossing
Mother roll width(mm) 1300 1800 2000 2200 2400 2600 2800 3000 4000 Customized
Mother roll diameter (mm) Up to 2000mm or customized
Machine speed 250 m/min
Raw paper

13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or MG paper or nonwoven airlaid.

Other sizes please specify.

Finished roll diameter 60-400mm.
Unwind section

a. With Two jumbo roll back stands.

b. Driven by separate reduction motors, not belts and chains.

c. Jumbo Roll diameter: Max. Ф1200mm (Other size, please specify).

d. Core diameter: Ф76mm.

e. Pneumatic loading jumbo rolls automatically.

f. With 2 sets of cone pulleys hand wheels to control jumbo roll web tension.(Electrical type is optional)

g. Synchronism paper feeding unit. With wide flat belts for feeding the jumbo roll.

h. With hand wheel for adjusting each jumbo roll to the left or right.(Electrical type is optional)

Rewind section

a. Semi automatic feeding pre-cut paper cores.

b. Core diameter adjustable.

c. With automatic perforation system: Perforation size is adjustable.

d. Perforation system can be switched OFF or switched ON. Able to produce rolls with perforation and without perforation.

e. With automatic finished roll tail trimming and sealing system to seal the logs with straight glue lines.

f. It can convert 1 or 2plies jumbo roll of difference gsm paper.

g. With thickened floor standing wallboard structure to ensure high speed running no vibration.

Point to point Lamination system

a. With one complete sets of point to point lamination units.

b. The whole design is copied Italy design.

c. Heavy chrome coating roll

d. Micro-adjustment of nips between the steel roll

e. Anilox roll for glue applicant.

f. Controlled by cylinders

g. Each lamination unit controlled by an independent reducer. When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry.

Power

7.5Kw for main motor

(3-phase AC380V 50Hz or customized)

Machine size 6x2-405x2m
Weight 6T
Videos and photos available.





D. Important parts:

1. Taiwan DELTA Inverter. Much easier for operation. (Other companies use only buttons and even all inferior buttons, easy to damage. And they use Elctromagnetic speed control, easy to get broken.)

2. Japan Omron sensors for detecting paper break. (Other companies use inferior brands)

3. Franch Schneider electrical parts like breakers, contactors and relays. (Other companies inferior brands made in China)

4. French Schneider buttons (Other companies use bad quality buttons)

5. The best China bearings, even Japan NSK bearings for the main aprts. (Other companies use cheap inferior brands bearings)

6. Taiwan Airtac cylinders. (Other companies use not that good brand)

7. The best brand motor made in China. (Other companies inferior brand)

8. Stronger structure and better quality parts than others. Complete thickened wallboard steel plate structure to ensure high speed running, no vibration.





Configuration:

Bearings NSK
PLC Siemens
Inverter Siemens
Touch screen Siemens
Auto web guide Italy Best
Auto tension system Like
Steel High Speed steel
Anilox Ceramix

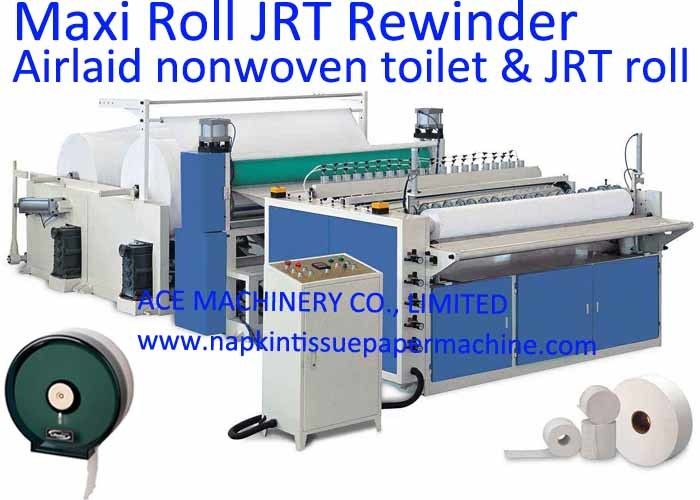

Picture of this Automatic Maxi Jumbo Roll Tissue Machine With Steel To Rubber Embossing:

automatic maxi roll machine
