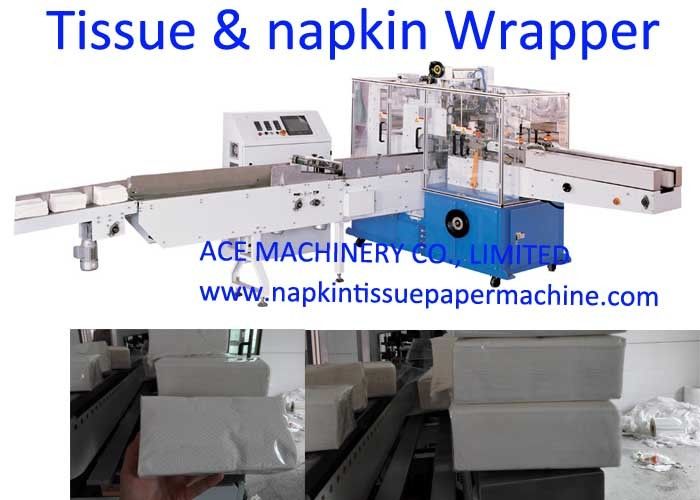

220v Soft Tissue Paper Wrapping Machine

220v Soft Tissue Paper Wrapping Machine
220v Soft Tissue Paper Wrapping Machine

Large Image :  220v Soft Tissue Paper Wrapping Machine

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-FSP
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Name: Soft Tissue Packing Machine Pack Speed: 80 Bag / Min
Automation: Full Automatic Control: PLC Servo Control
Tissue Size: Customized Power: 380v 220v 480v
High Light:

220v paper wrapping machine

,

220v tissue paper packing machine

,

220v Facial Tissue Paper Machine

Automatic Soft Facial Tissue Packing Machine, Nylon Tissue Wrapping Machine


Application of this facial tissue paper packing machine:

  1. This tissue paper packing machine can be used to full automatically feed the tissue paper or napkins and seal the soft nylon bag by the.
  2. The packing machine can be connected to the log saw to form an automatic production line, saving much laboring cost and increase the production efficiency.
  3. The whole machine adopts stepless frequency conversion controlling, touching screen and PLC.
  4. Main motor Controlled by timing Frequency conversion; With touch screen for data setting.
  5. Equipped with automatic lubrication system. You can set the machine lubrication interval and lubrication time. For example, you can set it to lubricate the machine for about 1s every 30 minutes.
  6. Magic eye to check and control the material and packing film system;
  7. Equipped with automatic coding system to automatically print the manufacture dates on each package of the tissues.
  8. Equipped with perforating system to make perforated dotted lines on each package of tissues so that the customers can easily open the bag and take the tissues.


Application
This ACE-FSP Automatic Soft Facial Tissue Packing Machine, Nylon Tissue Wrapping Machine is mainly used to automatically pack facial tissue papers, paper napkins, interfold paper towels etc. The mainly function of this machine is to manufacture customized soft packing facial tissue, nylon packing tissue paper, interfolded napkins etc. It can run at very high speed up to 280 pack per minute.

Advantage:
1 Pack speed 80 pack / min
2 Full Automatic
3 Stable and high speed
4 Easy operation
5 Easy maintenance.

Technical parameter:

Packing speed90 bag/min
Tissue bag size

L100-200mm Other sizes to be specified.
W100-140mm
H30-100mm.

Packing material:

CPP with thickness 40-45 microns.
PE also workable

Sealing type:hot sealing and envelope type.
Packing film sizeMAXφ300mm,width 400-600mm,thickness 40 - 45 microns.
Working noise:≤78db
air pressure:0.5Mpa(buyer supplier)
Power:

5.4Kw. Heating power:3.6Kw.
3phase AC380V 50HZ. Or 220v 60hz

Machine size:L3680 x W5885 x H1925mm
Machine weight:3500kg



11. The packing machine can be connected to the log saw to form an automatic production line, saving much laboring cost and increase the production efficiency.
12. The whole machine adopts stepless frequency conversion controlling, touching screen and PLC.
13. Main motor Controlled by timing Frequency conversion; With touch screen for data setting.
14. Equipped with automatic lubrication system. You can set the machine lubrication interval and lubrication time. For example, you can set it to lubricate the machine for about 1s every 30 minutes.
15. Magic eye to check and control the material and packing film system;
16. Equipped with automatic coding system to automatically print the manufacture dates on each package of the tissues.
17. Equipped with perforating system to make perforated dotted lines on each package of tissues so that the customers can easily open the bag and take the tissues.
18. Power: 5.4Kw. Heating power:3.6Kw. 3phase AC380V 50HZ.
19. Working noise: ≤78db
20. air pressure: 0.5Mpa(buyer supplier);
21. Machine size: L3680 x W5885 x H1925mm
22. Machine weight: 3500kg

Component:

electrical components for facial tissue packing machine
PLCSiemens or Mitsubishi
HMIWeinview (Taiwan)
InverterDELTA (Taiwan)
RelaysSchneider (France) + Omron (Japan)
SensorsOmron (Japan) or other international brands.



FAQ
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

tissue paper products packed by Automatic Soft Facial Tissue Packing Machine, Nylon Tissue Wrapping Machine:

soft facial tissue packing machine
