Product Details:
Payment & Shipping Terms:
|
| Name: | Tissue Paper Log Saw Cutting Machine | Cut Speed: | 140 Cut/min |
|---|---|---|---|
| Cut Material: | Facial Tissue Paper & Hand Towels | Control: | Siemens PLC |
| After-sales Service Provided: | Available Overseas | Warranty: | 1 Year |
| High Light: | Single Lane Tissue Paper Cutter Machine,CE Tissue Paper Cutter Machine |
||
Description:

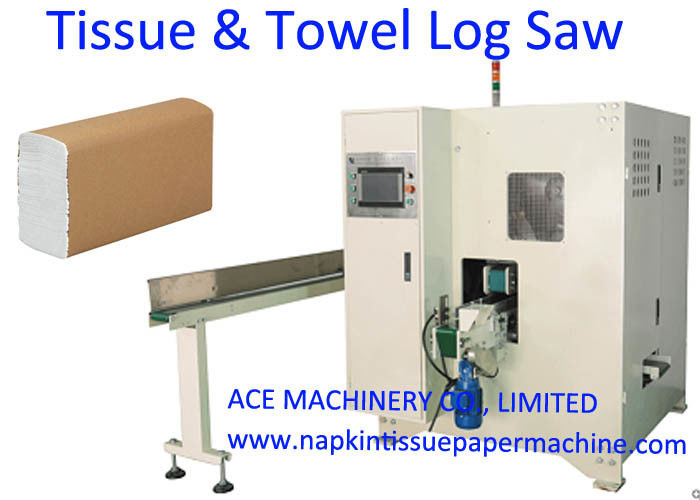

This ACE-FLS High Speed Tissue Paper Log Saw Cutting Machine Siemens PLC Control is for cutting facial tissue paper and interfold hand paper towels and also coreless toilet rolls. It can accommodate big ranges of cutting sizes. The height of log can be 140mm 150mm etc. It adopts 3 servo motors to control the cutting length and infeed to ensure the cutting accuracy.
Quick details:
1 For cutting facial tissue paper and hand towels
2 High speed 140 cut/min
3 Single lane
4 Servo motor control
5 Big ranges of cutting sizes
Technical parameters:
Adopt 2 servo motors to control the timing belts before the circular blade cutting and after the circular blade cutting .(But other companies’ machines use only one servo motor or NO servo motor, controlled by only inverter, which cannot guarantee accurate cutting.)
Circular blade outer diameter: 610mm
Blade grinding/sharpening system: Automatically and pneumatically grinding/sharpening, grinding/sharpening time and interval parameters can be set in the touch screen. For example, you can set it to sharpen for 1 seconds every 30 minutes or every 50 cuts.
Cutting system: 360° rotating cutting. (Not like other companies machines, the cutting system is only up-and-down cutting.)
Trim removal system: Automatically blew away by air. Trimmed size: 20-65mm.
Control system:
PLC programmed control,
Inverter for variable frequency speed control,
Touch screen for operation
Servo driving: adopt 2 servo motors to control the timing belts before the circular blade cutting and after the circular blade cutting .(But other companies’ machines use only one servo motor or NO servo motor, controlled by only inverter, which cannot guarantee accurate cutting.)
Air compressor: 4-8kg/cm2pa, supplied by customer.
Installed Power: 3phase 208v 60hz. total about 6.4kw
Servo system power: about 2 kw
Rotate motor power: about 2.2kw
Blade motor power: about 2.2kw
Machine weight: about 2T.
Machine dimension: about 5x1.9x1.95m LxWxH. Floor plan refer to below.
Technical parameters
| Main structure: | Single lane cutting |
| Applicable material | Facial tissue and hand towel |
| Designed speed: | 150 cut/min |
| Working speed: |
80-140 cut/min when cutting length 100mm, about 140 cut/min; when cutting length 230mm, about 120 cut/min. |
| Infeed channel: | With one piece infeed conveyor 3meters |
| Cutting delivery system | Independent servo control and driving. |
| Cutting sizes ranges: |
L 60-300mm adjustable W 60-110mm H 25-120mm |
| Cutting tolerance length: | ±1mm |
| Cutting tolerance vertical: | ±1.5mm |
FAQ
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Finished paper towel and facial tissue logs cut by High Speed Tissue Paper Log Saw Cutting Machine Siemens PLC Control:
