| Name: | Paper Hand Towel Log Saw Cutting Machine | Cut Speed: | 140 Cut/min |
|---|---|---|---|
| Cut Material: | Facial Tissue Paper & Hand Towels | Touch Screen: | Siemens |
| After-sales Service Provided: | Field Installation | Warranty: | 1 Year |
| High Light: | CE Facial Tissue Paper Machine,CE tissue paper cutter machine,Single lane Log Saw Cutting Machine |
||
Description:

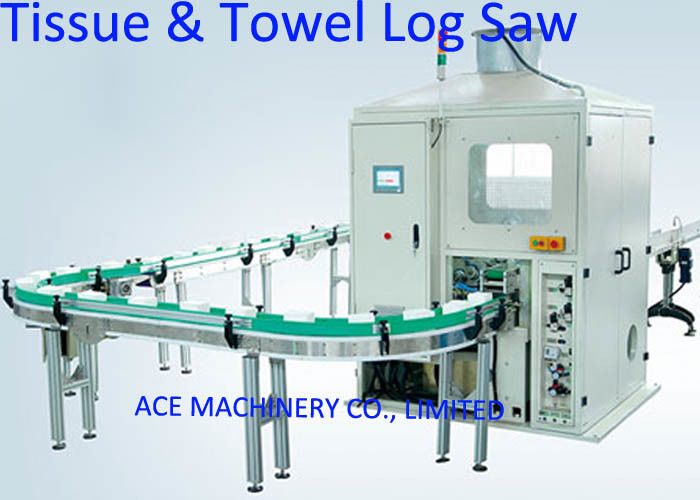

This ACE-FLS High Speed Paper Hand Towel Log Saw Cutting Machine 140 Cut/Min is for cutting facial tissue paper and interfold hand paper towels and also coreless toilet rolls. It can accommodate big ranges of cutting sizes. The height of log can be 140mm 150mm etc. It adopts 3 servo motors to control the cutting length and infeed to ensure the cutting accuracy.
Quick details:
1 For cutting facial tissue paper and hand towels
2 High speed 140 cut/min
3 Single lane
4 Servo motor control
5 Big ranges of cutting sizes
Technical parameters:
Output delivery: During the whole log saw cutting process, the tissues are pressed by Top timing belts + bottom timing belts to prevent the belts getting slippery and guarantee every cut accurate cutting. (But other company machines use flat belts which would definitely get slippery and no-accurate cutting.)
Adopt 2 servo motors to control the timing belts before the circular blade cutting and after the circular blade cutting .(But other companies’ machines use only one servo motor or NO servo motor, controlled by only inverter, which cannot guarantee accurate cutting.)
Circular blade outer diameter: 610mm
Blade grinding/sharpening system: Automatically and pneumatically grinding/sharpening, grinding/sharpening time and interval parameters can be set in the touch screen. For example, you can set it to sharpen for 1 seconds every 30 minutes or every 50 cuts.
Cutting system: 360° rotating cutting. (Not like other companies machines, the cutting system is only up-and-down cutting.)
Trim removal system: Automatically blew away by air. Trimmed size: 20-65mm.
Control system:
PLC programmed control,
Inverter for variable frequency speed control,
Touch screen for operation
Servo driving: adopt 2 servo motors to control the timing belts before the circular blade cutting and after the circular blade cutting .(But other companies’ machines use only one servo motor or NO servo motor, controlled by only inverter, which cannot guarantee accurate cutting.)
Air compressor: 4-8kg/cm2pa, supplied by customer.
Installed Power: 3phase 208v 60hz. total about 6.4kw
Servo system power: about 2 kw
Rotate motor power: about 2.2kw
Blade motor power: about 2.2kw
Machine weight: about 2T.
Machine dimension: about 5x1.9x1.95m LxWxH. Floor plan refer to below.
Technical parameters
| Main structure: | Single lane cutting |
| Applicable material | Facial tissue and hand towel |
| Designed speed: | 150 cut/min |
| Working speed: |
80-140 cut/min when cutting length 100mm, about 140 cut/min; when cutting length 230mm, about 120 cut/min. |
| Infeed channel: | With one piece infeed conveyor 3meters |
| Cutting delivery system | Independent servo control and driving. |
| Cutting sizes ranges: |
L 60-300mm adjustable W 60-110mm H 25-120mm |
| Cutting tolerance length: | ±1mm |
| Cutting tolerance vertical: | ±1.5mm |
Finished paper towel and facial tissue logs cut by High Speed Paper Hand Towel Log Saw Cutting Machine 140 Cut/Min:
