|Product:||Interfolded Facial Tissue Machine||Other Name:||Facial Tissue Machine Servo Motor Control|
|Advantage:||Servo Motor Ontrol||Cutoff Size:||200 / 230mm|
|Embossing System:||Steel To Rubber||Capacity:||10000 Sheet/min|
200mm Facial Tissue Paper Machine,
200mm facial tissue making machine,
200mm paper towel machine

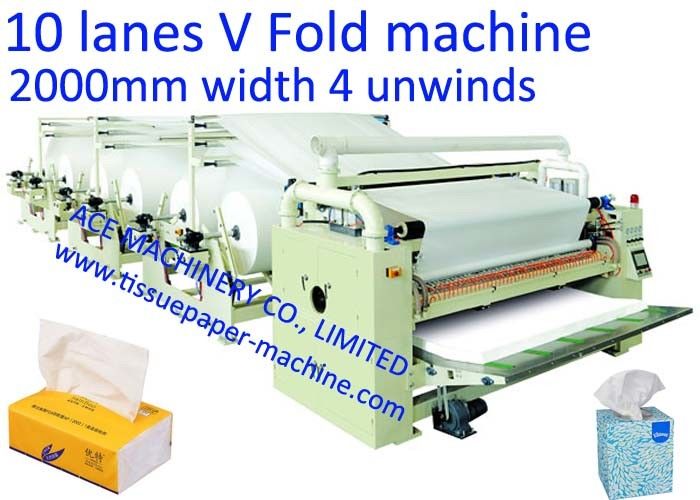

This ACE-V200-10L High Speed Interfolded Facial Tissue Machine Servo Motor Control Mother Rolls is with both full embossing unit and edge embossing unit. It is mainly used to automatically fold, emboss, cut and count facial tissue papers, soft drawing nylon pack facial tissue paper, box-drawing facial tissue papers, pop up tissue paper napkin, interleaved tissue paper, interfolded paper towel, V fold hand towels, nonwoven airlaid tissue, and MG paper napkins etc. all-in-one machine It adopts vacuum folding style. The mainly function of this machine is to manufacture commercial tissue paper products and away-from-home tissue paper products, easy-to-take one by one plain, embossed and LOGO printed and laminated interfolded dispenser napkins and V fold hand paper towels. It has 10 lanes output and can run at very high speed up to 1000 sheets per minute per lane. The jumbo roll width can be up to 2100mm. It has 4 unwinder jumbo roll stands which are driven by separate independent reduction motor, not chain and belt. It is an ideal equipment to manufacture high grade away-from-home customized embossed facial tissue paper napkin products.
1 Machine for facial tissue and v fold paper towel
2 With both full embossing and edge embossing.
3 Servo motor control each mother roll
5 Vacuum fold
6 Use vacuum pump
Technical parameters as below
|Output type||High Speed Interfolded Facial Tissue Machine Servo Motor Control Mother Rolls|
|Folding speed||1000 piece/min/lane * 10lanes, depending on the paper quality and napkin size.|
13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or MG paper or nonwoven airlaid.
Other sizes please specify.
|Jumbo roll size||≤ 2100mm x Φ1200mm (Depends on your napkin size, customized)|
Open size: 200±2mm x 200/165/140mm Other size, please specify.
Folded size: 100±2mm x 200/165/140mm
Fixed cutoff size is 200m. Other size available, please specify. or Customized.
1/2 V fold.
1- Steel to rubber. (Steel to steel is available.)
2- Embossing pattern can be any LOGO, brand name, flowers etc.
3- Embossing pattern can be customized by client or recommended by us
4- Controlled by screws, mechanical pressing type. Cylinder type is optional.
Speedless Tension control unit to fit the machine for paper of different quaity and different gsm.
With automatic web guiding system.
With automatic web tension control system.
|Calendar unit||Make the napkin softer.|
|Counting||Automatic counting unit|
|Emergent stop||Emergent stop unit to inspect any paper breaks, paper jams.|
|Paper feeding||Synchronizer for feeding paper|
7.5Kw for main motor
18.5KW for vacuum pump
(3-phase AC380V 50Hz or customized)
|Videos and photos available.|
E. Full Embossing unit (New technology copied Italy)
a. With NEW Technology steel-to-rubber full embossing unit. (Embossing pattern provided by the buyer or recommended by us.)
b. Controlled by level-type pneumatic system copied Italy design. Most other companies’ machines embossing units are controlled by screws or direct-pressing cylinders which make it very difficult to control the web tension and the paper will stick to the rollers, if you are not experienced enough, it will be big problem for you. They mostly put the embossing units on the steel frame, when the machine is running at high speed; it will definitely vibrate very much.
c. Embossing tension is adjustable.(Micro adjustment.) so that the machine can work with papers with different quality and different gsm.
d. Floor standing wallboard structure (thickened full steel plate support structure); to make sure the machine will NOT vibrate when running at high speed. Other companies adopt half steel frame for upper part and half steel part for lower parts, which is weak structure.
F. Point to point glue lamination unit, optional
a. With 2 sets of lamination units.
b. The whole design is copied Italy design.
c. Heavy chrome coating roll
d. Micro-adjustment of nips between the steel roll
e. Anilox roll for glue applicant.
f. Controlled by cylinders
g. Each lamination unit controlled by an independent reducer. When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry.
Finished products by this High Speed Interfolded Facial Tissue Machine Servo Motor Control Mother Rolls:
