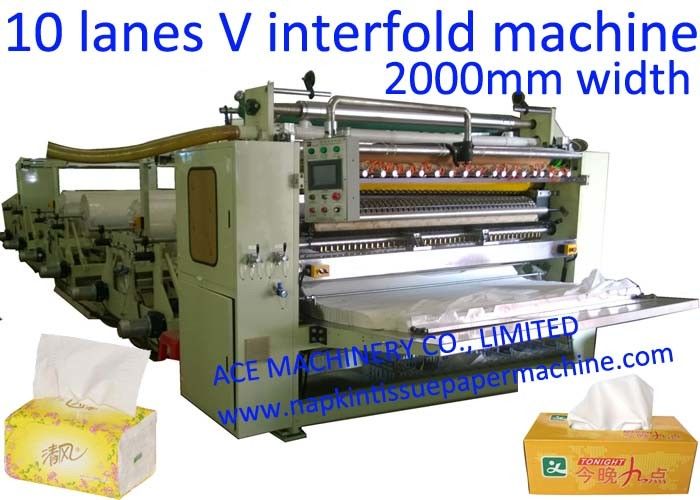

6000 Sheet/Min 10 Lanes Facial Tissue Paper Machine

6000 Sheet/Min 10 Lanes Facial Tissue Paper Machine
6000 Sheet/Min 10 Lanes Facial Tissue Paper Machine
video play

Large Image :  6000 Sheet/Min 10 Lanes Facial Tissue Paper Machine

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: ACE-V200-10L
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 5 set /month
Detailed Product Description
Product: 10 Lanes Facial Tissue Machine Other Name: V Folding Hand Towel Machine
Advantage: Separate Motor Driven Cutoff Size: 200 / 230mm
Lamination: Point To Point Lamination Capacity: 6000 Sheet/min
High Light:

10 Lanes Facial Tissue Paper Machine

,

10 Lanes facial tissue making machine

10 Lanes Facial Tissue Machine With Full Embossing Unit Separate Motor Driven


Application
This ACE-V200-10L
10 Lanes Facial Tissue Machine With Full Embossing Unit Separate Motor Driven is with both full embossing unit and edge embossing unit. It is mainly used to automatically fold, emboss, cut and count facial tissue papers, soft drawing nylon pack facial tissue paper, box-drawing facial tissue papers, pop up tissue paper napkin, interleaved tissue paper, interfolded paper towel, V fold hand towels, nonwoven airlaid tissue, and MG paper napkins etc. all-in-one machine It adopts vacuum folding style. The mainly function of this machine is to manufacture commercial tissue paper products and away-from-home tissue paper products, easy-to-take one by one plain, embossed and LOGO printed and laminated interfolded dispenser napkins and V fold hand paper towels. It has 10 lanes output and can run at very high speed up to 1000 sheets per minute per lane. The jumbo roll width can be up to 2100mm. It has 4 unwinder jumbo roll stands which are driven by separate independent reduction motor, not chain and belt. It is an ideal equipment to manufacture high grade away-from-home customized embossed facial tissue paper napkin products.

Advantage:

1 Machine for facial tissue and v fold paper towel

2 With both full embossing and edge embossing.

3 high speed up to 1000 sheet/min/lane

4 Energy-saving.

5 Vacuum fold

6 Use vacuum pump



Quick details:

1 Cylinder cutoff size: 200mm/230mm/190mm etc.

2 Steel to rubber Embossed

3 10 lanes

4 Interfolded and V fold

5 Facial tissues packed with soft nylon bags and carton box.


Technical parameters as below



Model ACE-V200-10L
Output type 10 Lanes Facial Tissue Machine With Full Embossing Unit Separate Motor Driven
Folding speed 1000 piece/min/lane * 10lanes, depending on the paper quality and napkin size.
Raw paper

13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or MG paper or nonwoven airlaid.

Other sizes please specify.

Jumbo roll size ≤ 2100mm x Φ1200mm (Depends on your napkin size, customized)
Napkin size

Open size: 200±2mm x 200/165/140mm Other size, please specify.

Folded size: 100±2mm x 200/165/140mm

Fixed cutoff size is 200m. Other size available, please specify. or Customized.

Folding type

Inter folding

Vacuum fold

1/2 V fold.

Embossing unit

1- Steel to rubber. (Steel to steel is available.)

2- Embossing pattern can be any LOGO, brand name, flowers etc.

3- Embossing pattern can be customized by client or recommended by us

4- Controlled by screws, mechanical pressing type. Cylinder type is optional.

Printing unit

Optional

1- Flexo printing type.

2- Printing colors customized up to 4 colors.

3- Printing Logo is changeable. You just need to change the Printing Rubber only.

4- Anilox printing roll. Ceramic anilox roller.

5- Printing roll is adjustable.

6- Ink printing system to be negotiated.

7- With doctor blades.

8- Closed chamber ink circulating system.

Point to point Lamination system

Lamination system is optional.

a. With 2 complete sets of point to point lamination units.

b. The whole design is copied Italy design.

c. Heavy chrome coating roll

d. Micro-adjustment of nips between the steel roll

e. Anilox roll for glue applicant.

f. Controlled by cylinders

g. Each lamination unit controlled by an independent reducer. When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry.

Tension control

Speedless Tension control unit to fit the machine for paper of different quaity and different gsm.

With automatic web guiding system.

With automatic web tension control system.

Calendar unit Make the napkin softer.
Counting Automatic counting unit
Emergent stop Emergent stop unit to inspect any paper breaks, paper jams.
Paper feeding Synchronizer for feeding paper
Power

7.5Kw for main motor

18.5KW for vacuum pump

(3-phase AC380V 50Hz or customized)

Machine size 6x2x2m
Weight 6T
Videos and photos available.




Configuration:

Bearings NSK
PLC Siemens
Inverter Siemens
Touch screen Siemens
Auto web guide Italy Best
Auto tension system Like
Steel High Speed steel
Anilox Ceramix



FAQ

Q: Are you trading company or manufacturer

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.


Finished products by this 10 Lanes Facial Tissue Machine With Full Embossing Unit Separate Motor Driven:
 facial tissue paper machine
