Product Details:
Payment & Shipping Terms:
|
| Name: | Machine For Table Napkin 12.75x5.5'' | Work Style: | Folding Embossing |
|---|---|---|---|
| Folding Style: | Dislocation 1/4 Fold | Printing: | Up To 4 Colors |
| Lamination: | Optional | Embosser: | Steel To Rubber |
| High Light: | 1/4 folding paper tissue making machine,Two Colors Printing Paper Napkin Making Machine,12.75x5.5'' paper napkin making machine |
||
Application

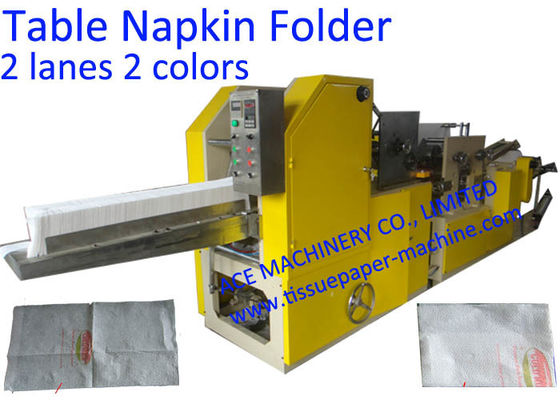

This ACE-LQM-2L Table Napkin Machine With Two Colors Print, Machine For Table Napkin 12.75x5.5'' can make malposition dislocation 1/4 fold table tissue paper napkins with 2 colors printing. It is mainly used to automatically fold, emboss, print, cut and count dislocation and malposition 1/4 fold table napkins, cocktail napkin, restaurant napkins, beverage napkin, luncheon napkin, 1/6 fold tall fold dispenser napkin, wallet tissue, nonwoven airlaid napkins and MG paper napkins etc. It adopts vacuum folding style. The mainly function of this machine is to manufacture easy-to-take one by one plain, embossed and LOGO printed tissue paper table napkins for Philippines fast food restaurants like Burger King, Jollibee, CHOWKING, GREENWHICH, KFC, Macdonald. It has 4 lanes output and can run at very high speed up to 1400 sheets per minute. It is an ideal equipment to manufacture away-from-home customized color printing and laminated tissue paper napkin products.
Advantage:
1 With 2 lanes.
2 With 2 colors printing.
3 high speed up to 1400 sheet/min
4 Embossed and printed.
5 Customized printing
6 Energy saving.
Quick details:
1 Size 12.75x5.5'' table napkins
2 Steel to paper embossing unit
3 Double lane
4 Vacuum fold 1/4
5 Dislocation malposition fold
6 With 2 colors printing.
Technical parameters
| Model | ACE-LQM-2L |
| Output type | Table Napkin Machine With Two Colors Print, Machine For Table Napkin 12.75x5.5'' |
| Folding speed | 1000 piece/min, depending on the paper quality and napkin size. |
| Raw paper |
13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or MG paper or nonwoven airlaid. Other sizes please specify. |
| Jumbo roll size | ≤ 11” x Φ1200mm (Depends on your napkin size, customized) |
| Napkin sizes |
Unfolded size: 12.75x5.5'' 324x140mm Folded size: 6.375x3.55'' 162x90mm Unfolded size: 12.75x8'' 324x203mm Folded size: 6.375x4'' 162x120mm |
| Folding type |
Vacuum folding Malposition fold Dislocation fold 1/4 fold etc.. |
| Embossing unit |
1- Steel to paper(wool), Male to female. (Steel to steel is available.) 2- Embossing pattern can be any LOGO, brand name, flowers etc. 3- Embossing pattern can be customized by client or recommended by us 4- Controlled by screws, mechanical pressing type. Cylinder type is optional. |
| Printing unit |
1- Flexo printing type. 2- Printing colors customized up to 8 colors. 3- Printing Logo is changeable. You just need to change the Printing Rubber only. 4- Anilox printing roll. Ceramic anilox roller. 5- Printing roll is adjustable. 6- Ink printing system to be negotiated. 7- With doctor blades. 8- Closed chamber ink circulating system. |
| Point to point Lamination system | Optional |
| Tension control |
Speedless Tension control unit to fit the machine for paper of different quaity and different gsm. With automatic web guiding system. With automatic web tension control system. |
| Calendar unit | Make the napkin softer. |
| Counting | Automatic counting unit |
| Emergent stop | Emergent stop unit to inspect any paper breaks, paper jams. |
| Paper feeding | Synchronizer for feeding paper |
| Power |
4kw - 7.5Kw (3-phase AC380V 50Hz or customized) |
| Machine size | 7x2x2m |
| Weight | 4000KG |
| Videos and photos available. | |
Configuration:
| Bearings | NSK |
| PLC | Siemens |
| Inverter | Siemens |
| Touch screen | Siemens |
| Auto web guide | Italy Best |
| Auto tension system | Like |
| Steel | High Speed steel |
| Anilox | Ceramix |
Products made by this Table Napkin Machine With Two Colors Print, Machine For Table Napkin 12.75x5.5'':
