300x300mm 1/6 Folding Napkin Tissue Paper Machine

China ACE MACHINERY CO.,LIMITED certification
China ACE MACHINERY CO.,LIMITED certification
I have bought several high speed napkin paper machines from ACE MACHINERY. They have been working perfectly.

—— Michael

I was happy to buy tissue paper machines from ACE MACHINERY. They offered me high quality tissue machines and good after sales service.

—— Pat

For me, ACE is the best manufacturer high speed paper napkin machine and high speed hand towel machine in CHINA.

—— Gomez (paper napkin converter)

I'm Online Chat Now

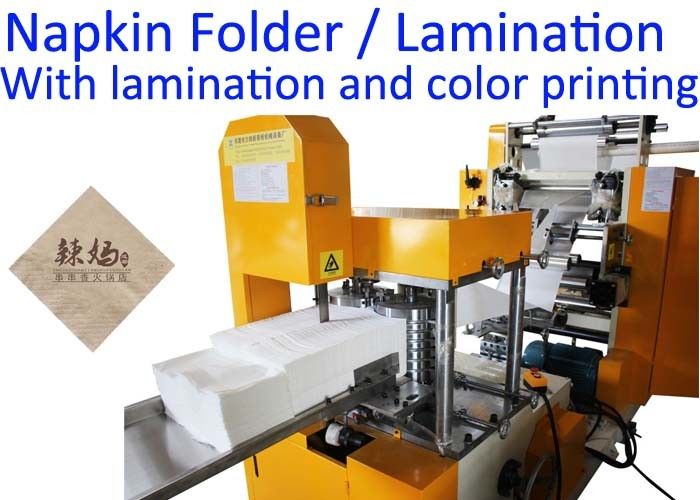

300x300mm 1/6 Folding Napkin Tissue Paper Machine

300x300mm 1/6 Folding Napkin Tissue Paper Machine
300x300mm 1/6 Folding Napkin Tissue Paper Machine 300x300mm 1/6 Folding Napkin Tissue Paper Machine

Large Image :  300x300mm 1/6 Folding Napkin Tissue Paper Machine

Product Details:
Place of Origin: China
Brand Name: ACE
Certification: CE
Model Number: ACE-TNM-L-2C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Name: Paper Napkin Making Machine With Lamination Work Style: Folding Lamination
Folding Style: 1/4 1/6 1/8 Printing: 2 Colors
Lamination: Point To Point
High Light:

1/6 Folding Napkin Tissue Paper Machine

,

300mm tissue napkin machine

,

300mm napkin paper making machine

Paper Napkin Making Machine With Lamination, Napkin Folding Lamination Machine

Application

This ACE-TNM-L-2C Paper Napkin Making Machine With Lamination, Napkin Folding Lamination Machine can make tissue paper napkins with both point to point glue lamination and 2 colors printing. It is mainly used to automatically fold, emboss, print, cut and count 1/4, 1/8, 1/6, 1/12 fold table napkins, cocktail napkin, restaurant napkins, beverage napkin, luncheon napkin, 1/6 fold tall fold dispenser napkin, wallet tissue, nonwoven airlaid napkins and MG paper napkins etc. It adopts vacuum folding style. The mainly function of this machine is to manufacture easy-to-take one by one plain, embossed and LOGO printed and laminated dinner tissue paper napkins. It has 4 lanes output and can run at very high speed up to 1000 sheets per minute. It is an ideal equipment to manufacture away-from-home customized color printing and laminated tissue paper napkin products.



Quick details:

1 Size 300x300mm

2 Steel to paper embossing unit

3 single lane

4 Mechanical fold 1/4 or 1/6

5 With both glue lamination and 2 colors printing.





Technical parameters



Model ACE-TNM-L-2C
Output type Paper Napkin Making Machine With Lamination, Napkin Folding Lamination Machine
Folding speed 1000 piece/min, depending on the paper quality and napkin size.
Raw paper

13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or MG paper or nonwoven airlaid.

Other sizes please specify.

Jumbo roll size ≤ 300mm x Φ1200mm (Depends on your napkin size, customized)
Napkin unfolded size 300mm x 300mm or Customized.
Napkin folded size

150mm x 150mm

One size is fixed. One napkin size is adjustable, by paper roll width.

Folding type

Mechanical folding

Bandsaw cutting

1/4 1/6 fold etc..

Printing unit

1- Flexo printing type.

2- Printing colors customized up to 8 colors.

3- Printing Logo is changeable. You just need to change the Printing Rubber only.

4- Anilox printing roll. Ceramic anilox roller.

5- Printing roll is adjustable.

6- Ink printing system to be negotiated.

7- With doctor blades.

8- Closed chamber ink circulating system.

Point to point Lamination system

a. With one complete sets of point to point lamination units.

b. The whole design is copied Italy design.

c. Heavy chrome coating roll

d. Micro-adjustment of nips between the steel roll

e. Anilox roll for glue applicant.

f. Controlled by cylinders

g. Each lamination unit controlled by an independent reducer. When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry.



Free spare parts

1. Plastic tuckers. 4pcs

2. Band saws 4pcs

3. Timing belt 1 pc each type

4. tool kit





Configuration:

Bearings NSK
PLC Siemens
Inverter Siemens
Touch screen Siemens
Auto web guide Italy Best
Auto tension system Like
Steel High Speed steel
Anilox Ceramix





Products made by this Paper Napkin Making Machine With Lamination, Napkin Folding Lamination Machine:

Napkin Making Machine With Lamination
