150mmx150mm 1/6 Folding Napkin Tissue Paper Machine

China ACE MACHINERY CO.,LIMITED certification
China ACE MACHINERY CO.,LIMITED certification
I have bought several high speed napkin paper machines from ACE MACHINERY. They have been working perfectly.

—— Michael

I was happy to buy tissue paper machines from ACE MACHINERY. They offered me high quality tissue machines and good after sales service.

—— Pat

For me, ACE is the best manufacturer high speed paper napkin machine and high speed hand towel machine in CHINA.

—— Gomez (paper napkin converter)

I'm Online Chat Now

150mmx150mm 1/6 Folding Napkin Tissue Paper Machine

150mmx150mm 1/6 Folding Napkin Tissue Paper Machine
150mmx150mm 1/6 Folding Napkin Tissue Paper Machine
video play

Large Image :  150mmx150mm 1/6 Folding Napkin Tissue Paper Machine

Product Details:
Place of Origin: China
Brand Name: ACE
Certification: CE
Model Number: ACE-TNM-L-2C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Name: Point To Point Lamination Napkin Machine Lamination: With Lamination Point To Point
Folding Style: 1/4 1/6 1/8 Printing: 2 Colors
Emboss: Steel To Wool
High Light:

1/6 Fold paper napkin making machine

,

150mmx150mm tissue napkin making machine

,

1/6 folding napkin paper making machine

Point To Point Lamination Tissue Paper Napkin Machine With Two Colors Printing

Application

This ACE-TNM-L-2C Point To Point Lamination Tissue Paper Napkin Machine With Two Colors Printing can make tissue paper napkins with both point to point glue lamination and 2 colors printing. It is mainly used to automatically fold, emboss, print, cut and count 1/4, 1/8, 1/6, 1/12 fold table napkins, cocktail napkin, restaurant napkins, beverage napkin, luncheon napkin, 1/6 fold tall fold dispenser napkin, wallet tissue, nonwoven airlaid napkins and MG paper napkins etc. It adopts vacuum folding style. The mainly function of this machine is to manufacture easy-to-take one by one plain, embossed and LOGO printed and laminated dinner tissue paper napkins. It has 4 lanes output and can run at very high speed up to 1000 sheets per minute. It is an ideal equipment to manufacture away-from-home customized color printing and laminated tissue paper napkin products.



Advantage:

1 Machine for laminated and printed tissue paper napkins

2 With both glue lamination and 2 colors printing.

3 high speed up to 1000 sheet/min

4 Embossed and printed and laminated

5 Mechanical fold

6 Bandsaw cutting type.





Technical parameters



Model ACE-TNM-L-2C
Output type lamination and Color Printing tissue paper napkin machine
Folding speed 1000 piece/min, depending on the paper quality and napkin size.
Raw paper

13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or MG paper or nonwoven airlaid.

Other sizes please specify.

Jumbo roll size ≤ 300mm x Φ1200mm (Depends on your napkin size, customized)
Napkin unfolded size 300mm x 300mm or Customized.
Napkin folded size

150mm x 150mm

One size is fixed. One napkin size is adjustable, by paper roll width.

Folding type

Mechanical folding

Bandsaw cutting

1/4 1/6 fold etc..

Embossing unit

1- Steel to paper(wool), Male to female. (Steel to steel is available.)

2- Embossing pattern can be any LOGO, brand name, flowers etc.

3- Embossing pattern can be customized by client or recommended by us

4- Controlled by screws, mechanical pressing type. Cylinder type is optional.

Printing unit

1- Flexo printing type.

2- Printing colors customized up to 8 colors.

3- Printing Logo is changeable. You just need to change the Printing Rubber only.

4- Anilox printing roll. Ceramic anilox roller.

5- Printing roll is adjustable.

6- Ink printing system to be negotiated.

7- With doctor blades.

8- Closed chamber ink circulating system.

Point to point Lamination system

a. With one complete sets of point to point lamination units.

b. The whole design is copied Italy design.

c. Heavy chrome coating roll

d. Micro-adjustment of nips between the steel roll

e. Anilox roll for glue applicant.

f. Controlled by cylinders

g. Each lamination unit controlled by an independent reducer. When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry.



D. Printing Section (advanced design.)

1. With 2 colors flexo-graphic printer section.

2. Printing unit with driven by timing belts to make printing more precise.

3. Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.

4. With automatic printing roller disconnection device during machine stop. If the machine stops, the roller will automatically disconnect with the printing unit, controlled by pneumatic system.

5. The printing plate roller can be adjustable or disassembled from the printing unit, much easier for the operator to attach the printing rubber plates or clean the roller.

6. Both sides of Anilox roll & Rubber roll with buffer for anti-spill cover to stop the ink spilling out of the ink tank and spraying somewhere.

7. The printer is equipped with cover on the in tank to prevent the inks spilling out of the ink tanks.

8. With printing ink reservoir for reserve dropping ink and avoid ink dropping on machine or place to keep environment clean.

9. Equipped with closed chamber ink circulating system.

10. Adopts ceramic anilox rollers for printing.



Free spare parts

1. Plastic tuckers. 4pcs

2. Band saws 4pcs

3. Timing belt 1 pc each type

4. tool kit

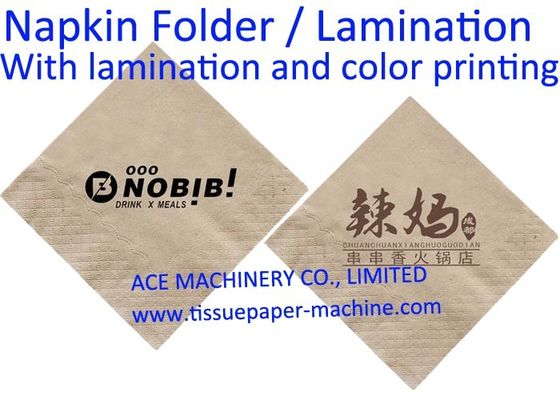

Products made by this Tissue Paper Napkin Machine With Lamination And Two Colors Printing:

Lamination Tissue Paper Napkin Machine
