Single Lane 1/8 Folding Napkin Tissue Paper Machine

China ACE MACHINERY CO.,LIMITED certification
China ACE MACHINERY CO.,LIMITED certification
I have bought several high speed napkin paper machines from ACE MACHINERY. They have been working perfectly.

—— Michael

I was happy to buy tissue paper machines from ACE MACHINERY. They offered me high quality tissue machines and good after sales service.

—— Pat

For me, ACE is the best manufacturer high speed paper napkin machine and high speed hand towel machine in CHINA.

—— Gomez (paper napkin converter)

I'm Online Chat Now

Single Lane 1/8 Folding Napkin Tissue Paper Machine

Single Lane 1/8 Folding Napkin Tissue Paper Machine
Single Lane 1/8 Folding Napkin Tissue Paper Machine
video play

Large Image :  Single Lane 1/8 Folding Napkin Tissue Paper Machine

Product Details:
Place of Origin: China
Brand Name: ACE
Certification: CE
Model Number: TNM-2L
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Name: Tissue Paper Napkin Machine With Lamination And Two Colors Printing Fold Type: Single Lane
Lamination: With Point To Point Lamination Folding Style: 1/4 1/6 1/8
Printing: Closed Chamber Ink Circulating System
High Light:

1/8 Fold paper napkin manufacturing machine

,

Single Lane tissue napkin making machine

,

300x300mm tissue paper napkin making machine

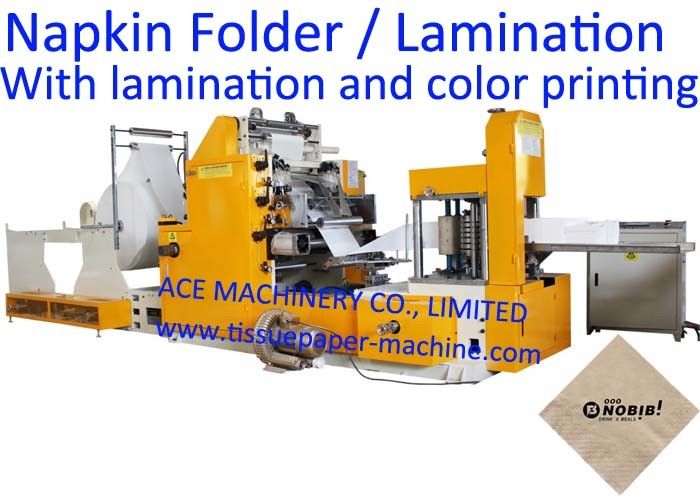

Tissue Paper Napkin Machine With Lamination And Two Colors Printing

Application

This ACE-TNM-L-2C lamination and Color Printing tissue paper napkin machine can make tissue paper napkins with both point to point glue lamination and 2 colors printing. It is mainly used to automatically fold, emboss, print, cut and count 1/4, 1/8, 1/6, 1/12 fold table napkins, cocktail napkin, restaurant napkins, beverage napkin, luncheon napkin, 1/6 fold tall fold dispenser napkin, wallet tissue, nonwoven airlaid napkins and MG paper napkins etc. It adopts vacuum folding style. The mainly function of this machine is to manufacture easy-to-take one by one plain, embossed and LOGO printed and laminated dinner tissue paper napkins. It has 4 lanes output and can run at very high speed up to 1000 sheets per minute. It is an ideal equipment to manufacture away-from-home customized color printing and laminated tissue paper napkin products.



Advantage:

1 Machine for laminated and printed tissue paper napkins

2 With both glue lamination and 2 colors printing.

3 high speed up to 1000 sheet/min

4 Embossed and printed and laminated

5 Mechanical fold

6 Bandsaw cutting type.



Quick details:

1 Size 300x300mm

2 Steel to paper embossing unit

3 single lane

4 Mechanical fold 1/4 or 1/6

5 With both glue lamination and 2 colors printing.



Technical parameters



Model ACE-TNM-L-2C
Output type lamination and Color Printing tissue paper napkin machine
Folding speed 1000 piece/min, depending on the paper quality and napkin size.
Raw paper

13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or MG paper or nonwoven airlaid.

Other sizes please specify.

Jumbo roll size ≤ 300mm x Φ1200mm (Depends on your napkin size, customized)
Napkin unfolded size 300mm x 300mm or Customized.
Napkin folded size

150mm x 150mm

One size is fixed. One napkin size is adjustable, by paper roll width.

Folding type

Mechanical folding

Bandsaw cutting

1/4 1/6 fold etc..

Embossing unit

1- Steel to paper(wool), Male to female. (Steel to steel is available.)

2- Embossing pattern can be any LOGO, brand name, flowers etc.

3- Embossing pattern can be customized by client or recommended by us

4- Controlled by screws, mechanical pressing type. Cylinder type is optional.

Printing unit

1- Flexo printing type.

2- Printing colors customized up to 8 colors.

3- Printing Logo is changeable. You just need to change the Printing Rubber only.

4- Anilox printing roll. Ceramic anilox roller.

5- Printing roll is adjustable.

6- Ink printing system to be negotiated.

7- With doctor blades.

8- Closed chamber ink circulating system.

Point to point Lamination system

a. With one complete sets of point to point lamination units.

b. The whole design is copied Italy design.

c. Heavy chrome coating roll

d. Micro-adjustment of nips between the steel roll

e. Anilox roll for glue applicant.

f. Controlled by cylinders

g. Each lamination unit controlled by an independent reducer. When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry.

Tension control

Speedless Tension control unit to fit the machine for paper of different quaity and different gsm.

With automatic web guiding system.

With automatic web tension control system.

Calendar unit Make the napkin softer.
Counting Automatic counting unit
Emergent stop Emergent stop unit to inspect any paper breaks, paper jams.
Paper feeding Synchronizer for feeding paper
Power

4kw - 7.5Kw

(3-phase AC380V 50Hz or customized)

Machine size 7x2x2m
Weight 4000KG
Videos and photos available.





Free spare parts

1. Plastic tuckers. 4pcs

2. Band saws 4pcs

3. Timing belt 1 pc each type

4. tool kit



FAQ

Q: Are you trading company or manufacturer

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.





Products made by this Tissue Paper Napkin Machine With Lamination And Two Colors Printing:

paper napkin machine with lamination
