Single Lane Dinner Napkin Manufacturing Machine, Vacuum Fold Tissue Napkin Machine

Application

This Single Lane Dinner Napkin Manufacturing Machine, Vacuum Fold Tissue Napkin Machine has only single lane output. It is a very economical small scale tissue converting machine for tissue business. It is mainly used to automatically fold, emboss, print, cut and count 1/8 fold dinner napkins, 1/6 book fold dinner napkins, lowfold dispenser napkin, nonwoven airlaid napkins and MG paper napkins etc. It adopts vacuum folding style. The mainly function of this machine is to manufacture plain, embossed and LOGO printed and laminated dinner tissue paper napkins. It has only single lane but still can run at high speed up to 500 sheets per minute. It is an ideal equipment to manufacture disposable tissue paper products.

Quick details:

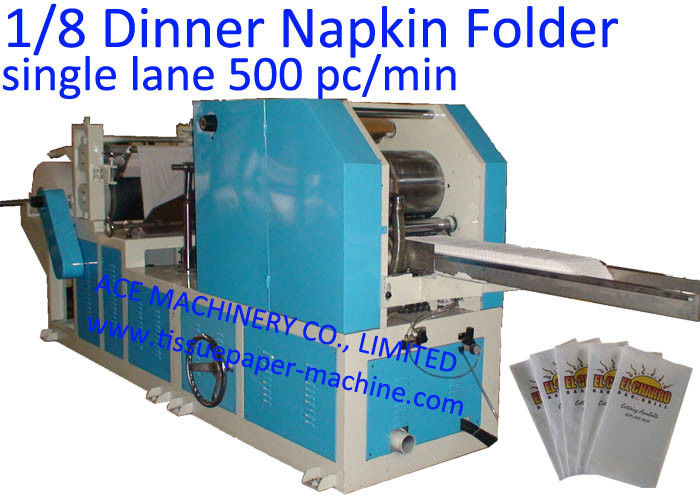

1 machine for dinner napkin size 17”x17”

2 Steel to paper embossing unit

3 Single lanes output

4 Vacuum fold 1/8 1/8 fold

5 Speed 500 sheet/min

Technical parameters

DNM-1L Single Lanes High Speed vacuum fold dinner napkin Machine

Technical parameter:

A. back stand

1. Parent roll specification: single or double plies tissue paper.

2. Parent roll size: ≤Φ1100 x 430mm (430mm * single lanes = 430mm) Diameter x Width

3. Core inner diameter: 76mm

B. Feeding Section

1. With One jumbo roll stand.

2. Pneumatic cylinder control

3. Stepless adjusting speed to control web-tension of paper.

4. Auto adjustment setting

5. With pneumatic system to automatically load jumbo rolls.

C. Embossing Section

1. One set of steel to paper embossing unit. (Embossing pattern provided by client or recommend by us)

2. Mechanical press type or pneumatic control.

D. Printing Section (advanced design.)

1. With 2 colors flexo-graphic printer section.

2. Printing unit with driven by timing belts to make printing more precise.

3. Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.

4. With automatic printing roller disconnection device during machine stop. If the machine stops, the roller will automatically disconnect with the printing unit, controlled by pneumatic system.

5. The printing plate roller can be adjustable or disassembled from the printing unit, much easier for the operator to attach the printing rubber plates or clean the roller.

6. Both sides of Anilox roll & Rubber roll with buffer for anti-spill cover to stop the ink spilling out of the ink tank and spraying somewhere.

7. The printer is equipped with cover on the in tank to prevent the inks spilling out of the ink tanks.

8. With printing ink reservoir for reserve dropping ink and avoid ink dropping on machine or place to keep environment clean.

E. Folding Section

1. Unfolded size: 430 x 430mm or 17” x 17”, 13” x 13”, 16”x14”

2. Folded size: 107x215mm

3. Fold type: 1/8 1/6 fold and mechanical fold.

4. Synchronizer for feeding paper

5. The gap between 2 folding cylinders can be adjustable to fit for papers of different gsm and different quality.

6. With 4lanes output delivery.

7. Capacity: about 400-500 piece/min/lane x 2lanes = 1000 piece/min total, depending on paper quality, gsm and workers operation.

8. With automatic counting unit. With single tissue pop up every count.

9. Automatic counting function: counting range: 0-9999 sheet per count, adjustable.

Products made by this Single Lane Dinner Napkin Manufacturing Machine, Vacuum Fold Tissue Napkin Machine:
