|Name:||Two Heads Napkin Folding Machine||Fold Type:||Two Heads|
|Auto Tension:||YES||Folding Style:||1/4 1/6 1/8|
|Speed:||3000 Pc/min||Printing:||Closed Chamber Ink Circulating System|
Two Heads Fold Napkin Tissue Paper Machine,
1/4 Folding Napkin Tissue Paper Machine,
76mm core Napkin Tissue Paper Machine

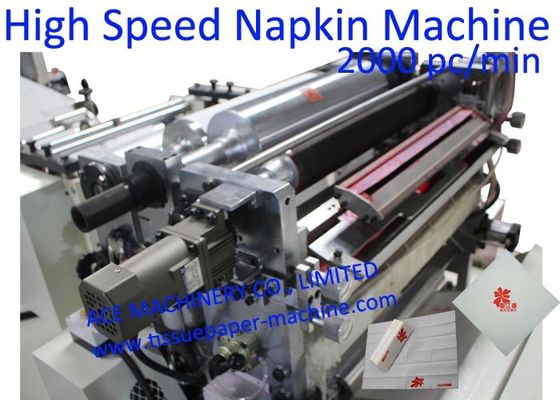

This High Speed Napkin Folding Machine, Two Heads Automatic Tissue Paper Napkin Making Machine is with 2 folding heads, left folding head and right folding head. This advanced design is much better for operation and maintenance. It is especially good to equip with auto transfer system to transfer the paper napkins to the conveyor of the automatic tissue paper napkin packing machine to make a fully automatic tissue paper napkin production line with transfer. It can save lots of labor and increase production.
This two heads napkin tissue making machine fold, emboss, print, cut and count 1/4 fold table napkins, cocktail napkin, restaurant napkins, beverage napkin, lunchen napkin, 1/6 fold tall fold dispenser napkin, wallet tissue and MG paper napkins etc. The mainly function of this machine is to manufacture plain, embossed and LOGO printed tissue paper napkins. It can run at very high speed up to 2600 sheets per minute.
TNM-2H High Speed Two Heads Tissue Paper Napkin Folding Machine
A. back stand
1. Parent roll specification: single or double plies tissue paper.
2. Parent roll size: ≤Φ1100 x 600mm (300mm * 2 = 600mm) Diameter x Width
3. Core inner diameter: 76mm
B. Feeding Section
1. One feeding paper frame;
2. Pneumatic cylinder control
3. Stepless adjusting speed to control web-tension of paper.
4. Auto adjustment setting
5. With pneumatic system to automatically load jumbo rolls.
C. Embossing Section
1. One set of steel to paper embossing unit. (Embossing pattern provided by client or recommend by us)
2. Mechanical press type.
E. Folding Section
1. Unfolded size: 300x300mm
2. Folded size: 150x150mm
3. Fold type: 1/4 fold and mechanical fold.
4. Synchronizer for feeding paper
5. The gap between 2 folding cylinders can be adjustable to fit for papers of different gsm and different quality.
6. With double folding heads output delivery.
7. Capacity: about 600-1500 piece/min/head x 2 heads= 1200-3000 piece/min total, depending on paper quality, gsm and workers operation.
8. With automatic counting unit. With single tissue pop up every count.
9. Automatic counting function: counting range: 0-9999 sheet per count, adjustable.
Free spare parts
1. Plastic tuckers. 4pcs
2. Band saws 4pcs
3. Timing belt 1 pc each type
4. tool kit
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Products made by this High Speed Napkin Folding Machine, Two Heads Automatic Tissue Paper Napkin Making Machine:
