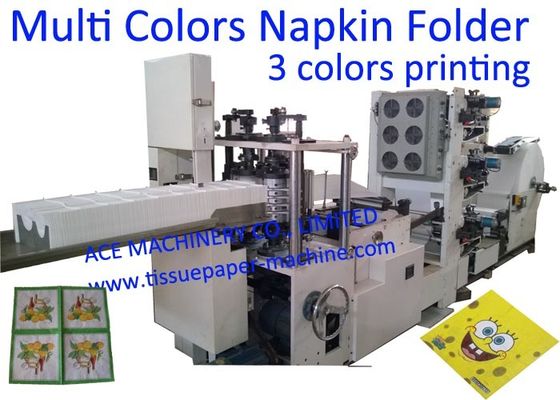

200 M/Min 3 Colors Paper Napkin Printing Machine

200 M/Min 3 Colors Paper Napkin Printing Machine
200 M/Min 3 Colors Paper Napkin Printing Machine

Large Image :  200 M/Min 3 Colors Paper Napkin Printing Machine

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: TNM-4C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detailed Product Description
Product Type: 3 Colors Napkin Printing Machine Speed: 200 M/min
Printing: 3 Colors Embossing: Full Or Side Emboss
Anilox Roll: Ceramic Anilox Napkin Size: 300x300mm And Other
High Light:

3 Colors paper Napkin Printing Machine

,

3 Colors napkin printing equipment

,

3 colors Napkin Printing Machine

3 Colors Napkin Printing Machine For Restaurant Cocktail Beverage Tissue Paper

Application
This 3 Colors Napkin Printing Machine For Restaurant Cocktail Beverage Tissue Paper is mainly used to automatically fold, emboss, print, cut and count 1/4 fold table napkins, cocktail napkin, restaurant napkins, beverage napkin, lunchen napkin, 1/6 fold tallfold dispenser napkin, wallet tissue and MG paper napkins etc. The mainly function of this machine is to make multi colors printed high resolution high quality printing 1 colors, 2 colors, 3 colors, 4 four colors up to eight colors.

Advantage:
1 Taiwan design
2 High quality resolution printing machine.
3 With 3 colors printing
4 With auto web tension system
5 With auto edge guiding system
Technical parameters as below

Italy Design Automatic High Speed 4 ColorS Printing Napkin Machine





TNM-4C High Quality 4 Colors Printed Napkin Machine

Technical parameter:

A. back stand

1. Parent roll: 2 or 3 plies tissue paper.

2. Parent roll size: ≤Φ1100 x 230mm. Diameter x Width

3. Core inner diameter: 76mm



B. Feeding Section

1. With 1 unwind stands;

2. Floor-standing thickened Wallboard structure (complete steel plate) to ensure high speed stable running no vibration.

3. Pneumatic cylinder control

4. Stepless adjusting speed to control web-tension of paper.

5. Auto adjustment setting

6. With pneumatic system to automatically load jumbo rolls.

7. With automatic web tension control system. Web tension control: constant tension control by floating roll.

8. With automatic edge guiding system. Automatic electrical deviation control: Internationally famous brand.

9. Paper transport: step-less speed regulating (triangular belt).





C. Embossing Section

1. One set of steel to paper embossing unit. (Embossing pattern provided by client or recommend by us)

2. Mechanical press type.

3. Floor-standing thickened Wallboard structure(complete steel plate) to ensure high speed stable running no vibration.

4. With 1 set of steel to steel Calendering unit.



D. Printing Section (advanced design.)

1. With 4 colors flexo-graphic printer section. (High quality printing)

2. With ceramic anilox printing rollers.

3. Printing unit with driven by timing belts to make printing more precise.

4. Simple and easy adjustment of horizontal and longitudinal registration by turning hand wheel.

5. Both sides of Anilox roll & Rubber roll with buffer for anti-spill cover to stop the ink spilling out of the ink tank and spraying somewhere.

6. The printer is equipped with covers on the in tank to prevent the inks spilling out of the ink tanks.

7. With printing ink reservoir for reserve dropping ink and avoid ink dropping on machine or place to keep environment clean.

8. Casting iron forming foundation. Floor-standing thickened Wallboard structure (complete plate) to ensure high speed stable running no vibration.

9. With one set of heating device (Dryer) for heating the napkin to make the printing LOGO dry fast.





Configuration:

Bearings NSK
PLC Siemens
Inverter Siemens
Touch screen Siemens
Auto web guide Italy Best
Auto tension system Like
Steel High Speed steel
Anilox Ceramix





Products made by this napkin printing machine for your reference.
