Product Details:
Payment & Shipping Terms:
|
| Other Name: | Automatic Facial Tissue Bundle Packing Machine PLC High Speed 25 Bundle / Min | Packing Format: | 3 - 12 Bags Per Bundle |
|---|---|---|---|
| Warranty: | 1 Year | Pack Speed: | 25 Bundle / Minute |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Working Products: | Facial Tissue And Napkins |
| High Light: | Tissue Paper Bundle Packing Machines,Tissue paper bundle wrapping machine,640mm Tissue Paper Packing Machine |
||

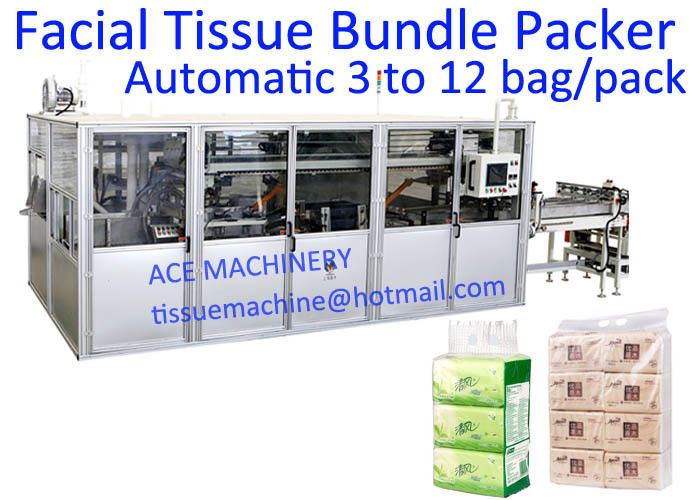

Application of this Automatic facial tissue bundle packing machine PLC high speed 25 bundle / min:
This full automatic toilet paper roll bathroom tissue bundling packing machine is an ideal machine to pack hygienic tissue rolls in the format single row and double rows of 2 * 4 bags (8 bags), 2 * 5 bags (10 bags) , 2 * 6 bags (12 bags) etc. It can greatly increase the production and save lots of labor. It is an economical good price tissue paper packing machine for small scale tissue converting factory.
Main features:
1. adopt PLC and servo motors to drive the products feeding, overturn, counting, bag feeding, bag opening, bagging, sealing automatically.
2. bagging and sealing: adopt the mound negative pressure type bagging and sealing to keep the products shape nicely.
3. Fault tracked and warmed: the fault will be showed on the touch screen and tracked the reason to make easy to solve the fault.
4. monitoring system: bags controlled, product checking to keep the machine won’t pack without products;and the checking system help to output the defective goods. In case that the bag can not open, machine will automatic stop. In case the bag is fault and cannot open, the bag will output automatically.
Technical parameter of Automatic facial tissue bundle packing machine PLC high speed 25 bundle / min
| Machine model | ACE-FBM-A |
| Packing speed | 10-25packs/min |
| Max bundle bag length | 420mm |
| Finished bundle bag width | 130-420mm |
| Finished bundle bag height | 90～105mm |
| Bundle bag max length | 640mm |
| Bundle bag packing type | 3,4,5,6,8,10bags/bundle |
| Bundle bag material | Pre-made M bag with air outlet hole(dia 5-6mm),the thickness is 40-60μm, opp, cpp, pe double side sealing film |
| Pre-made bag qty | 2 bag base for changing and each one can hold 300-400 pcs |
| Machine out-dimension | 4900×2900×1920 mm |
| Machine power supply | 380V±10%,50Hz±5% |
| Air supply | 0.6～0.7Mpa ,330L/min |
| Machine weight | About 2500kg |
| Noise | <80dB |
| Total power | 12.56Kw |
Machine main parts list of this Automatic facial tissue bundle packing machine PLC high speed 25 bundle / min.
| No. | Name | Brands |
| 1 | Servo motor | Schneider |
| 2 | Servo drive | Schneider |
| 3 | E-stop button | Schneider |
| 4 | Proximity | Lanbao |
| 5 | Photo-electric detect switch | SICK |
| 6 | Relay | Omron |
| 7 | Hot relay | Schneider |
| 8 | P type switch | Muller |
| 9 | Contactor | Schneider |
| 10 | Breaker | Liangxin |
| 11 | Solid relay | Crydom |
| 12 | Liner guider | HIWIN |
| 13 | HMI | Weinview |
| 14 | Fibre sensor | Keyence |
| 15 | Temp controller | Yuyao |
| 16 | Power switch | MEAN WELL |
| 17 | Cylinder | Airtac |
| 18 | Solenoid valve | Airtac |
| 19 | Fan | zhangao |
| 20 | Planetary reducer | Xingxing |
| 21 | Gear motor | Hengxing |
Sample of finished product by fully Automatic facial tissue bundle packing machine PLC high speed 25 bundle / min.
