Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic Double Twin Packs Napkin Tissue Wrapping Machine For Big Size Napkin | Packing Speed: | 70 Bag/min |
|---|---|---|---|
| Pack Format: | Single Big Pack And Twin Packs | Function: | Both Facial Tissue And Napkin Packing |
| Packing Material: | Film Roll | Warranty: | 1 Year |
| High Light: | Twin Packs Napkin Wrapping Machine,Automatic Napkin Wrapping Machine,35mm Tissue Paper Packing Machine |
||
Main features of Automatic Double Twin Packs Napkin Tissue Wrapping Machine :
1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.
Applications of Automatic Double Twin Packs Napkin Tissue Wrapping Machine:
Suitable for packing rectangular and square objects, such as non-highly tight tissue, square tissue, napkins, ect.
Technical parameters:
| Model | FSP-2P |
|
Tissue sizes |
L: 150-400mm |
| W: 150-200mm | |
| H:50-150mm (can be also customized to 35mm) | |
| Packing speed | 40-70 bags/min |
| Air supply | 0.5-0.8MPa |
| Machine weight | 3300kg |
|
Outer dimensions (LxWxH) |
5885x3560x1925(mm) |
| Heating power | 3.6kw |
| Motor power | 3.66kw |
|
Max packing size (LxWxH) |
230x190x100(mm) |
| Working noise | ≤78dB |
| Packing film | CPP |
| Power supply type | 380V, 50Hz |
Main parts list of
| No. | Name | Brand | Remark |
| 1 | Controller | Siemens | |
| 2 | Temperature Controller | Keyang | |
| 3 | Servo motor | Schneider | |
| 4 | Servo driver | Schneider | |
| 5 | Button | Schneider | |
| 6 | Inverter | Schneider | |
| 7 | Detecting sensor | SICK | |
| 8 | Relay | Omron | |
| 9 | Relay socket | Omron | |
| 10 | P switch | Jiuchuang | |
| 11 | Tri-pole contactor | Schneider | |
| 12 | Breaker | Zhengtai | |
| 13 | Proximity switch | Omron | |
| 14 | Solid relay | Crydom | |
| 15 | Contactor/ Hot relay | Schneider | |
| 16 | Encoder | Koyo | |
| 17 | HMI | Weiview | |
| 18 | Photo cell | SICK | |
| 19 | DC transformer | Meanwell | |
| 20 | Director contactor | Airtac | |
| 21 | Magnetic diverter valve | SMC | |
| 22 | Gear motor | Hengxing |
FAQ
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Our service
1. Any inquires will be replied within 24 hours.
2. Before-sale and after-sale service, overseas engineer service is available.
3. All products have been strictly quality test in our factory before packing.
4. Free technical training until customers can operate independently.
5. 12 months warranty.
6. Long-term providing quick-wear parts.
7. Life time technical support service.

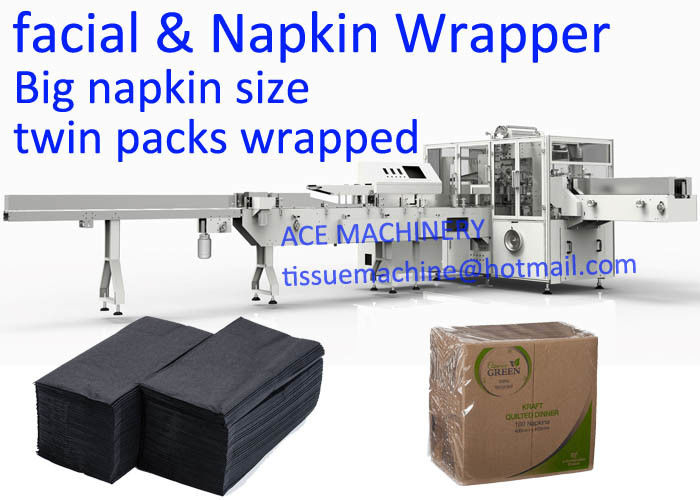

Sample of finished product by fully Automatic Double Twin Packs Napkin Tissue Wrapping Machine .
