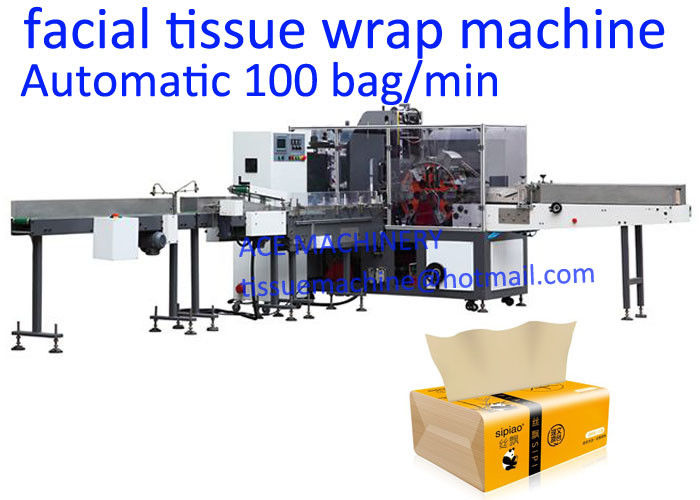

PLC Control 100 Bag / Min CE Tissue Paper Packing Machine

PLC Control 100 Bag / Min CE Tissue Paper Packing Machine
PLC Control 100 Bag / Min CE Tissue Paper Packing Machine

Large Image :  PLC Control 100 Bag / Min CE Tissue Paper Packing Machine

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: FSP
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $30000 - 100000/set
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, , T/T
Supply Ability: 10 set /month
Detailed Product Description
Product Name: Facial Tissue Paper Wrapping Machine Packing Speed: 100 Bag/min
Control: PLC Control Origin: Made In China
Packing Material: Film Roll Warranty: 1 Year
High Light:

CE Tissue Paper Packing Machine

,

Film roll Tissue paper wrapping machine

,

200mm Tissue Paper Packing Machine



PLC control facial tissue paper wrapping machine high speed 100 bag /min

Application of this facial tissue paper wrapping machine:

  1. This facial tissue paper wrapping machine can be used to full automatically feed the tissue paper or napkins and seal the soft nylon bag by the.
  2. The packing machine can be connected to the log saw to form an automatic production line, saving much laboring cost and increase the production efficiency.
  3. The whole machine adopts stepless frequency conversion controlling, touching screen and PLC.
  4. Main motor Controlled by timing Frequency conversion; With touch screen for data setting.
  5. Equipped with automatic lubrication system. You can set the machine lubrication interval and lubrication time. For example, you can set it to lubricate the machine for about 1s every 30 minutes.
  6. Magic eye to check and control the material and packing film system;
  7. Equipped with automatic coding system to automatically print the manufacture dates on each package of the tissues.
  8. Equipped with perforating system to make perforated dotted lines on each package of tissues so that the customers can easily open the bag and take the tissues.





Technical parameter:



Packing speed 90 bag/min
Tissue bag size

L100-200mm Other sizes to be specified.

W100-140mm

H30-100mm.

Packing material:

CPP with thickness 40-45 microns.

PE also workable

Sealing type: hot sealing and envelope type.
Packing film size MAXφ300mm,width 400-600mm,thickness 40 - 45 microns.
Working noise: ≤78db
air pressure: 0.5Mpa(buyer supplier)
Power:

5.4Kw. Heating power:3.6Kw.

3phase AC380V 50HZ. Or 220v 60hz

Machine size: L3680 x W5885 x H1925mm
Machine weight: 3500kg



FAQ

Q: Are you trading company or manufacturer

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.





Our service

1. Any inquires will be replied within 24 hours.

2. Before-sale and after-sale service, overseas engineer service is available.

3. All products have been strictly quality test in our factory before packing.

4. Free technical training until customers can operate independently.

5. 12 months warranty.

6. Long-term providing quick-wear parts.

7. Life time technical support service.



Sample of finished product by fully-automatic facial tissue paper wrapping machine .

facial tissue wrapping machine



Our facial tissue automatic packing machine can pack ultra thin small pack of pop up interleaved facial tissue papers.
