Product Details:
Payment & Shipping Terms:
|
| Other Name: | Automatic Single Toilet Roll Packing Machine | Packing Format: | Single Roll Wrapped |
|---|---|---|---|
| Warranty: | 1 Year | Pack Speed: | 130 Roll / Minute |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 220V/380V |
| High Light: | Single Toilet Roll Packing Machine,125mm toilet paper packing machine,125mm paper packaging equipment |
||

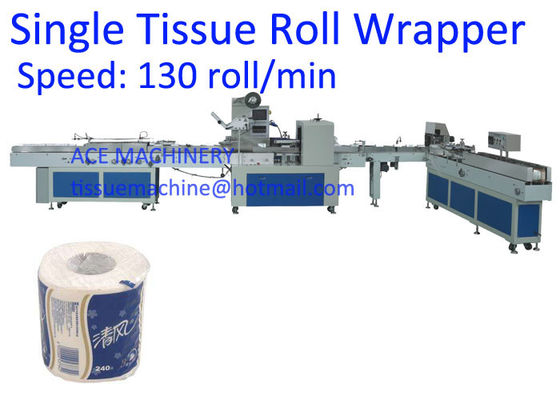

Description of single toilet roll packing machine:
This single toilet roll packing machine adopts PLC control, display on LCD screen, control by the inverter, excellent person-computer interface, easy to pack. And the length of product adopt double frequency converter, stepless speed change, various range adjustment, automatic clear up the packing product, and make it enter packaging machine. This machine can match with front-end production very well. The length of finished bag will be accurate tracked by high sensitivity sensor. It will not need to adjust by manual as soon as set. Individual control temperature for each sealing. It suitable for many kinds of wrapping material.
Technical parameter:
|
|
|
| Single roll size |
Diameter: 85 - 125mm, height: 80 - 150mm |
| Machine packing range: | L(270～650) * W(160～250) * H(80～150). Other size , please specify. |
| Packing format |
Individual Single Toilet roll or kitchen towel wrapped. |
| Packing material | SPP, OPP and paper (inside must have a super thin plastic film). |
| Bag type | film roll |
| Pack speed |
130 roll / min If use paper, about 50-60 roll/min |
| Pack type | full automatic bagging and sealing |
| Side seal | With side heating system for sealing both ends of the toilet rolls. |
| parameter setting | touch screen |
| Control |
servo motor PLC |
| Power | 15-21Kw,380V,50Hz |
| Pressure | 0.6Mpa(user supplied) |
| machine size | 3400×1700×1200mm (L×W×H) |
| machine weight | about 4000kg |
Components configuration of this single roll packing machine.
|
PLC |
Panasonic |
| servo motor. | Taiwan TECO |
| touch screen. | Taiwan Weinview |
| Omron sensor. | Japan |
| pneumatic parts. | Taiwan Airtac |
| Bearing | NSK or SKF |
Sample of finished product by fully-automatic single toilet paper roll packing machine.
