| Product: | Automatic Facial Tissue Paper Box Sealing Shrinking Machine | Box Quantiry: | Up To 9 Boxes Together |
|---|---|---|---|
| Warranty: | 1 Year | Voltage: | 220V/380V |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Processing Type: | Facial Tissue Box Sealing Shrinking Machine |
| Highlight: | 9 boxes Tissue Paper Packing Machine,Tissue paper box packing machine |
||
Application of this jumbo maxi roll tissue paper packing machine:

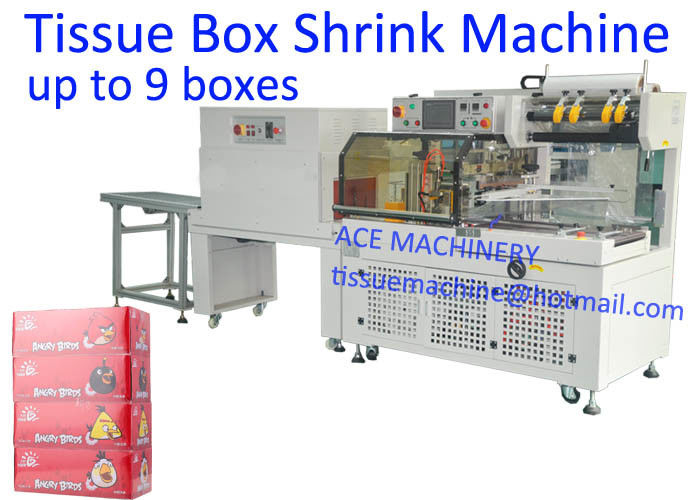

This automatic facial tissue paper box sealing shrinking machine is widely used to automatically seal and shrink the 3 boxes, 4 boxes, 5 boxes, 6 boxes, 7 boxes, 9 boxes together. It can also shrink JRT, maxi rolls, HRT, industrial roll, bed sheet roll, jumbo toilet roll and also other products.
It is very simple operation and stable running.
It can be connected to the automatic facial tissue paper box packing and tissue paper logsaw cutting machine to form a fully automatic facial tissue paper production line.
Main features:
1. Adopt packing method by wrapping, hemming and sealing with compact structure and high product appeal.
2. Adopt the step-less frequency conversion, touching screen and PLC, clear display and easy maintenance.
3. Adopt auto-putting conveyor, easy to be connected with automatic production line.
4. Step-less speed regulation, packing speed and length of film can be adjustable.
5. High automation, high specialization, high efficiency and but less trouble.
6. Flexible packing range, different sizes can be changed easily.
7. Add pneumatic left and right rectifying device, up and down reshaper or avoid irregular package such as parallelogram and trapezoid, make the finished product more regular and beautiful.
Technical parameter:
Automatic Shrinking Machine
Heating system
Heat insulated layer: Use High temperature resistant rock wool to reduce heat loss and ensure low temperature on the surface of the machine while the machine is working.
Temperature controller: Use Taiwan AVA temperature controller and imported thermal sensor for adjusting the temperature between 0-250`C
Conveying system
Motor: Use Taiwan motor and reducer.
Air system: Special design of air system to heat the products evenly. Imported strong power motor for supplying air which is able to adjust the air strength inside the shrinking chamber according to different products.
Control system
Contactors: CHINT
Intermediate relay: Japan IDEC
Temperature controller: Taiwan AVE
Emergency-stop switched: Japan IDEC.
Machine body
Outer plates: Carbon steel plated with plastic.
Inner plates: galvanized sheet
Shrink size: L1500*W500*H300mm
Power: 3phase 380V/50Hz average15KW
Machine size: L2000*W1100*H1250mm
Technical parameters of jumbo maxi roll packing machine
| Jumbo maxi roll sealing machine | |
| Maximum sealing size: | L no limit, W300, H150mm. |
| Packing speed: | 0-30 pieces/min, depending on the specific product. |
| Power: | ≤4kw 3phase 380V 50/60Hz |
| Air pressure: | 5.5KG/cm2 |
| Machine size: | 1650*900*1550mm. |
| Jumbo Maxi roll Shrink machine | |
| Shrink size: | L1500*W500*H300mm |
| Power: | 3phase 380V/50Hz average15KW |
| Machine size: | L2000*W1100*H1250mm |
Sample of finished product by fully automatic facial tissue paper box sealing shrinking machine.
