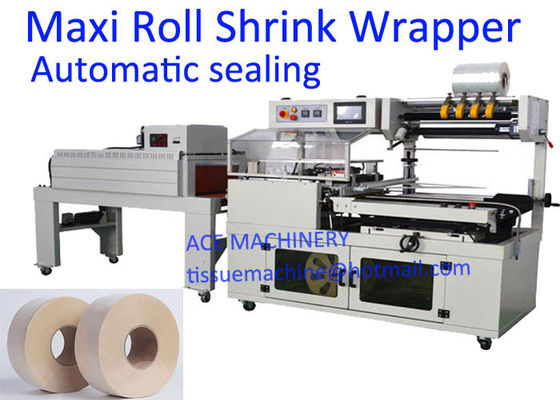

Automatic tissue paper packing machine for shrinking JRT jumbo toilet maxi roll

Application of this jumbo maxi roll tissue paper packing machine:

This automatic maxi roll JRT industrial jumbo roll tissue shrink packing machine is widely used to automatically seal and shrink the maxi roll, JRT, HRT, industrial roll, bed sheet roll, jumbo toilet roll, facial tissue boxes and also other products.

It is very simple operation and stable running.

It can be connected to the automatic maxi roll cutting machine to form a fully automatic maxi roll production line.

Main features:

1. Adopt packing method by wrapping, hemming and sealing with compact structure and high product appeal.

2. Adopt the step-less frequency conversion, touching screen and PLC, clear display and easy maintenance.

3. Adopt auto-putting conveyor, easy to be connected with automatic production line.

4. Step-less speed regulation, packing speed and length of film can be adjustable.

5. High automation, high specialization, high efficiency and but less trouble.

6. Flexible packing range, different sizes can be changed easily.

7. Add pneumatic left and right rectifying device, up and down reshaper or avoid irregular package such as parallelogram and trapezoid, make the finished product more regular and beautiful.

Technical parameter:

Auto sealing machine

Sealing System

Heating source: Adopts stainless heating tubes which can be used for long time.

Sealing knife: Adopts alloy sealing knife which is adhesion resistant high temperature resistant and its surface is plated with non-adhesive Teflon film.

Temperature control of the sealing knife: Adopts Japan OMRON digital temperature controller and imported thermal sensing control, temperature can be adjusted between 0-400`℃

.

Sealing knife size: Electrical adjusting the height.

Maximum sealing size: L no limit, W300, H150mm.

Sealing knife protection: Adopts Germany SICK to effectively prevent FAULT-seal the tissues boxes.

Drive system: Use Taiwan SHAKO pneumatic cylinders to vertically drive the horizontal sealing knife so as to guarantee tight and stable well-sealed products with nice looking.

Slideway: Use Japan THK slideway to guarantee the sealing knife stable up-and-down running.

Side seal system: Use FESTO cylinders to guarantee accurate, stable and tight sealing.

Conveyor system.

Belt: Use Germany Forbo Siegling PU conveyor belts.

Motor: Use Taiwan TAI BANG motor to guarantee stable conveying.

Detection: Use USA BANNER photoelectric sensor to accurately and sensitively detect the products’ delivering and stopping.

Recycle system

Motor: Use Taiwan TAI BANG motor to ensure evenly and accurately recycle the waste at constant speed.

Proximity switch: Use Germany SICK switch to ensure accurate control of the time of recycling the waste.

Feeding film system

Motor: Use Taiwan TANG BANG motor to ensure stable feeding of films.

Proximity switch: Use Germany SICK switch to accurately control the length of feeding films.

PLC: Japan OMRON.

Contactors: French SCHNEIDER.

Intermediate relay: Japan OMRON

Touch screen: MCGS color touch screen.

Temperature controller: Japan OMRON

Emergency-stop switches: Japan IDEC.

Perforator: Use multiple punch perforator to exhaust the air inside the bag quickly.

Material used for the whole machine: Plastic-plated carbon steel. And the key parts are made up of stainless steel and aluminum to ensure stable structure.

Packing speed: 0-30 pieces/min, depending on the specific product.

Power: ≤4kw 3phase 380V 50/60Hz

Air pressure: 5.5KG/cm2

Machine size: 1650*900*1550mm.

Technical parameters of jumbo maxi roll packing machine

Sample of finished product by fully-automatic tissue paper packing machine.
