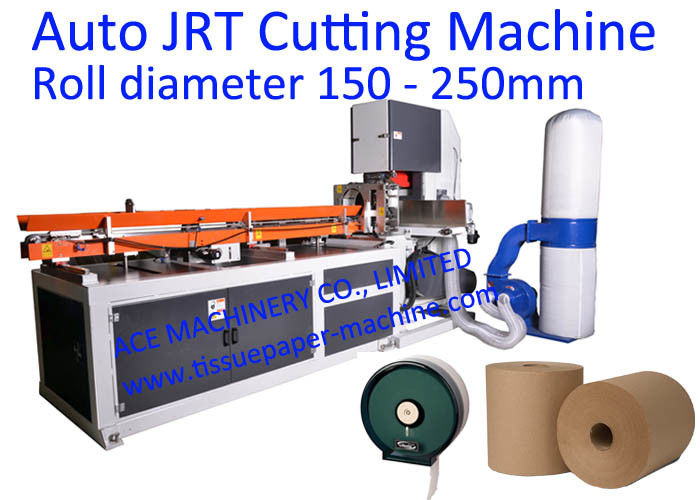

Maxi Roll Tissue Paper Machine

Maxi Roll Tissue Paper Machine
Maxi Roll Tissue Paper Machine Maxi Roll Tissue Paper Machine

Large Image :  Maxi Roll Tissue Paper Machine

Product Details:
Place of Origin: CHINA
Brand Name: ACE
Certification: CE
Model Number: AJBS
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $20000 - 100000/set
Packaging Details: standard export packing
Delivery Time: 60 days
Payment Terms: L/C, , T/T
Supply Ability: 5 set /month
Detailed Product Description
Product Name: Disposable Bed Sheet Tissue Paper Machine Price, Maxi Roll Tissue Paper Machinery Cut Roll Length: 90-500mm
Cut Roll Diameter: 150-250mm Or Specify Cut Speed: 30-40 Cut/min
Automatic: Full Automatic Purpose: Cut Jumbo Bed Sheet Maxi Rolls
High Light:

maxi roll Tissue Paper Machine

,

fully Automatic tissue paper manufacturing unit

,

500mm Cut roll Tissue Paper Machine

Disposable Bed Sheet tissue paper machine price, maxi roll tissue paper machinery



Description

The equipment adopts famous brand PLC program control, big touch screen human machine interface. It can precisely control the infeed length by servo and electromechanical integration control system and other international advanced technology. It can automatically detect each key action and has perfect fault information alarming system, which makes the whole production line achieve the best working state.



Quick details

1 For cutting maxi rolls

2 Roll diameter 150-250mm

3 Roll lenng: 90-500mm

4 Cut type: Full automatic cutting



Main features

1 The main motor is controlled and driven by an independent motor and inverter

2 The cutting blade will automatically stops and gives an alarm if any fault happens;

3 If the paper is not fully cut, the machine will automatically stop and the alarm will show on the touch screen advising how much depth the operator should adjust the blade.

4 The high precision servo system is used in the infeed motor servo system, to ensure the quality of the finished product;

5 The equipment will automatically calculate the quantity of the finished product being cut according to the length of the raw material and the length of the finished product;

6 When data input is incorrect, the equipment will automatically stop and alarm on the touch screen to adjust on the interface;

7 The trimmed paper head and paper end can be automatically sorted;

8 The machine adopts bandsaw blades to cut the bed sheet rolls and maxi rolls, to reduce the use cost of the user;

9 The automatic sharpening knife system is used in the equipment. The operator can adjust the sharpening knife system according the requirement of paper being cut, which increase the cutting life;

10 The sharp steel grinding wheel is used in the sharpening knife system, which increase the sharpening knife efficiency.



Technical parameters

machine weight 1000KG

cutting speed 30-40 cuts/min

cutting channel single channel

cutting blade band saw blade

cutting blade size 4430*70*0.9

log length ≦3500mm

tolerance ±1mm

cutting length 90-250mm or customized

cutting diameter 150-250mm or customized. The range between minimum and maximum is 100mm.

power supply 3 phase 4line 380V 50HZ



PLC INVT
Inverter INVT
Touch screen INVT
Servo motor INVT
Servo drive INVT
Bearings NSK SKF
Electrical parts Schneider
Pneumatic parts Airtac

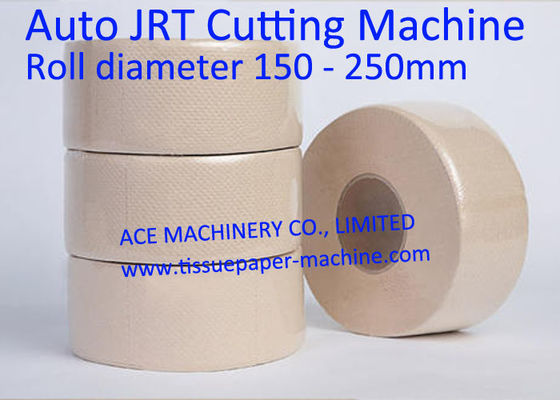

Finished product of



 tissue paper machine price.
